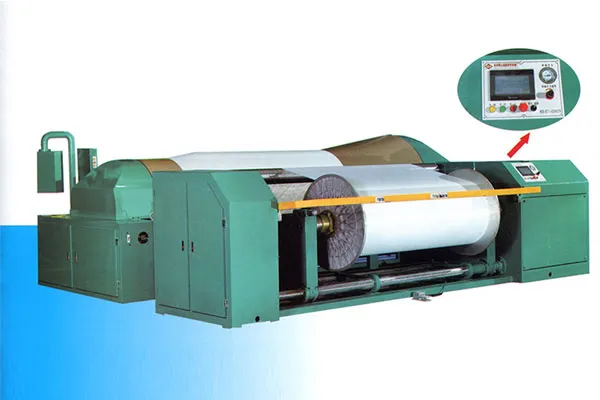

We supply warping machine for a variety of warping needs including staple fiber, filament fiber, color yarn, denim yarn, fiberglass and etc. Our series cover sectional warping machine, direct warping machine, fiberglass warping machine, and warping sizer. With stable performance, high efficiency and good adaptability, our warping machines have been widely installed in domestic and overseas mills, to cooperate with rapier loom, air jet loom, water jet loom, projectile looms and etc.
Equipped with R&D center and textile testing center, we are able to manufacture our own weaving preparatory machines that can replace imported ones. The textile testing center has a complete line of sizing machine and air jet loom, to facilitate the development of new products.
Technial Specification
| Warping Speed | 10-100m/min |
| Width | 1280-3800mm or customization |
| Beam Flange | 550mm, 800mm |
| Reed adjustable in horizontal direction by 0~15mm, 22 times per min | |
| Braking Method | pneumatic disc clamp brake |
| Braking DIstance | ≤ 1m(100m/min) |
| Compression Method | cantilever type pneumatic compression, with stepless regulation |
| Winding Density | 0.8-1.8g/cm3 |
| Spindle Pitch | 180/200mm |
| Number of Spindles | 800~3800 as per customer demand |
Scope of Application:
Guide the fiberglasss from creel through the reeds for uniform arrangement, and then wind onto the weaving beam or warp beam.
Technial Specification
| Width | 1800mm-7000mm |
| Beam Flange | 800mm.1000mm.1250mm |
| Warping Speed | 0-400m/min |
| Beaming Speed | 0-90m/min |
| Deviation of Beaming Tension | ±2% |
| Braking Distance | ≤ 3m (300m/min) |
| Cone Angle | 9°or7.125° |
| Stripe Traverse Speed | 0.001-9.999(mm/r) |
| Deviation of Stripe Traverse | 0.02% |
| Stripe Setting Range | 0.1~700(mm) |
| Drum Diameter | 1026mm |
Technial Specification
| Width | 1800mm-3600mm, customization available |
| Beam Flange | 800mm, 1000mm, or customization |
| Warping Speed: | 0~600(m/min) |
| Beaming Speed: | 0~100(m/min) |
| Deviation of Beaming Tension: | ±2% |
| Braking Distance | ≤ 2m (300m/min) |
| Cone Angle | 9° |
| Stripe Traverse Speed | 0.001~9.999(mm/r) |
| Deviation of Stripe Traverse | 0.02% |
| Stripe Setting Range | 0.1~999.9(mm) |
| Drum Diameter | 1026mm |
Scope of Application:
SINO558 is suitable for warping a variety of yarns,including worsted yarn,high twisted filaments, silk yarn, and different types of spun yarns for wool fabrics, chemical fabrics, silk fabrics, cotton fabrics as well as industry fabrics.This sectional warping machine is perfect preparatory machinery for water-jet weaving, air-jet weaving, rapier weaving and projectile weaving.
Technial Specification:
| Available Width | 1600~1800mm, or customization |
| Applicable Beam Flange | 800mm; 1000mm or customization |
| Warping Speed | 100-800m/min, with stepless speed regulation |
| Braking Distance | ≤ 3m(500m/min) |
| Error in Length | ≤ 0.25% |
| Motor Power | 11KW |
| Creel | 640 Spindles, 240x240mm, or customization |
| Weight of Head Stock | 3000kg |
| Weight of Creel | 2800kg |
Scope of Application
SINO528 can be used in warping of various staple fiber. With the features of high warping efficiency, uniform denstity and flatness, this model is the ideal preparation equipment before sizing and dyeing.
Contact our technical team to discuss your specific requirements and get a customized quote.
