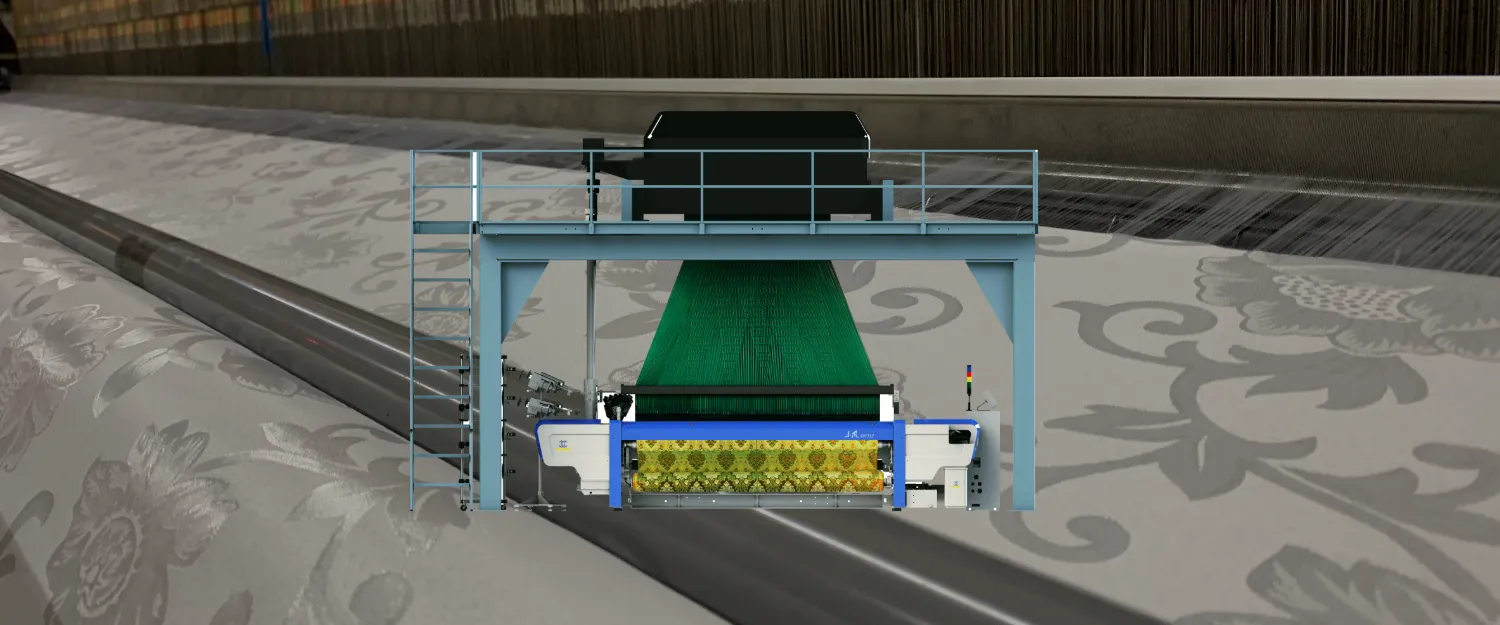

The DF31J is a universal digital jacquard loom that has earned a leading position in the home textiles market, accounting for roughly 70% of that segment in China thanks to its strong cost performance and consistent quality.
Vertical shaft or independent transmission drives the loom, while digital jacquard shedding makes it easy to change weave organization without the hassle of punched pattern cards.
The rapier loom and jacquard is a good match in terms of speed, communication and synchronization, so as to ensure a stable and long-term operation.
Key Highlights
• Market position: About 70% share of home textiles jacquard market
• Pricing: Strategic manufacturer partnerships lower cost
• Shedding: Digital jacquard, no physical pattern cards needed

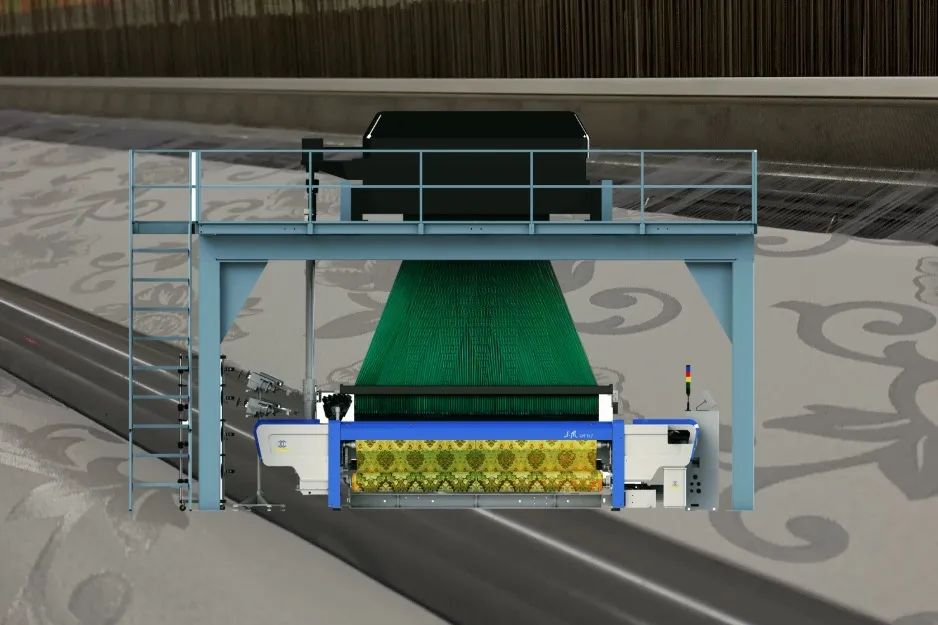

DF31J Rapier Jacquard Loom
A special weft feeder works with dedicated main and auxiliary nozzles tuned for fiberglass, delivering reliable insertion while reducing the abrasion fiberglass yarn causes to nozzles and guides, exte...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.

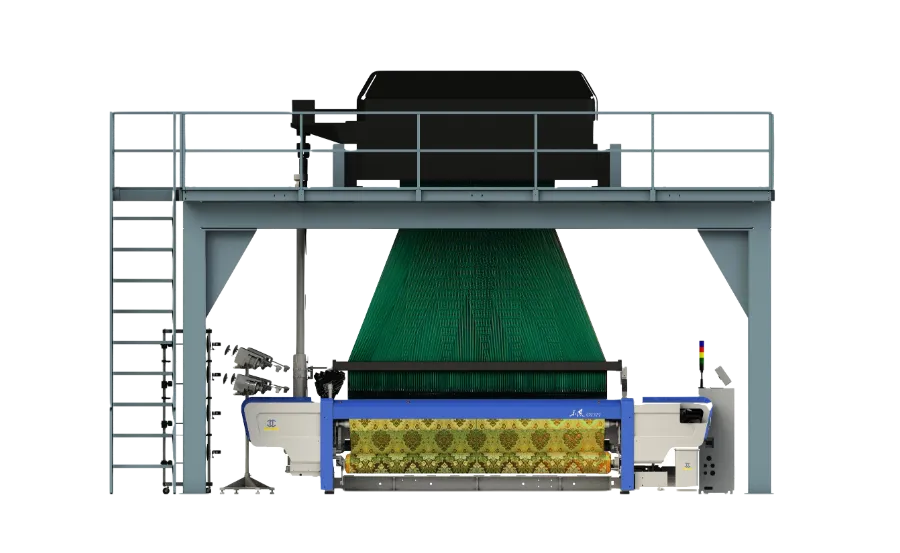

DF31J Rapier Jacquard Loom
Width | 190cm, 210cm, 220cm, 230cm, 260cm, 280cm, 300cm, 320cm, 340cm, 360cm |
Operation speed | maximum design speed350rpm, economic speed240~280rpm (340cm model) |
Weft density | 4~200 picks/cm |
Take up | electronic take-up driven by servo motor, beam diameter φ600mm |
Letoff | electronic let-off driven by servo motor, beam diameter φ800mm |
Shedding | Chinese electronic jacquard with 1344~12288 hooks |
Color selector | high speed electronic weft selector controlled bystepping motor, 4~16 colors |
Selvage | electronic jacquard driven selvage device, or optional independent leno selvage controlled by stepping motor |
Maindrive | asynchronous motor plus inverter or super motor |
Automatic functions | automatic warp stop, automatic weft stop,automatic pick finding |
Electronic control | With 32-bit CPU control system and embedded software |
Contact our technical team to discuss your specific requirements and get a customized quote.
