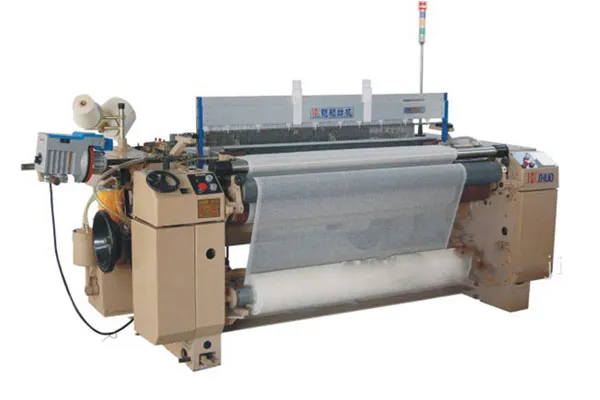

Medical gauze demands a light, low-density, open weave, and our medical gauze weaving loom is purpose-built for exactly that: a single nozzle and single weft feeder insert weft efficiently while conserving yarn, avoiding the double-weft defects that would fail gauze quality standards.
An advanced pneumatic selvedge device produces a clean, consistent selvedge edge, directly improving overall fabric quality.
All main transmission parts run bathed in grease to keep maintenance costs down, and an independent air supply from a conjoined twin-cylinder air pump uses less energy than a central gas supply system.
Key Highlights
• Efficiency: Single nozzle, single weft feeder saves yarn
• Quality: Scissor-trimmed weft avoids double-weft defects
• Selvedge: Pneumatic device for clean, consistent edges

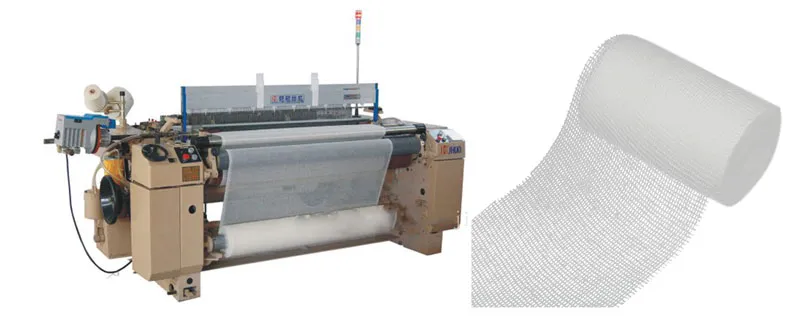

Medical Gauze Weaving
A special weft feeder works with dedicated main and auxiliary nozzles tuned for fiberglass, delivering reliable insertion while reducing the abrasion fiberglass yarn causes to nozzles and guides, exte...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Medical Gauze Weaving
| Width | 4 meters ~ 50 meters (customizable) |
| Operation Speed | 30~120 rpm (depending on width) |
| Yarn Scope | Cotton, polyester, fiberglass, carbon fiber, jute, sisal and etc. |
| Weft Density | 1~50 picks/cm |
| Beat-up System | Crank type and cam type (for light, medium and heavy fabrics) |
| Take Up | Electronic take-up driven by servo motor |
| Let-off | Electronic let-off driven by servo motor |
| Shedding | Electronic dobby or cam shedding |
| Weft Insertion | Flexible rapier with double width weaving capability |
| Special Feature | Double width weaving: 7m reed width can produce 13.5m fabric |
| Application | Carpet, agriculture, military, geotextile industry |
Contact our technical team to discuss your specific requirements and get a customized quote.
