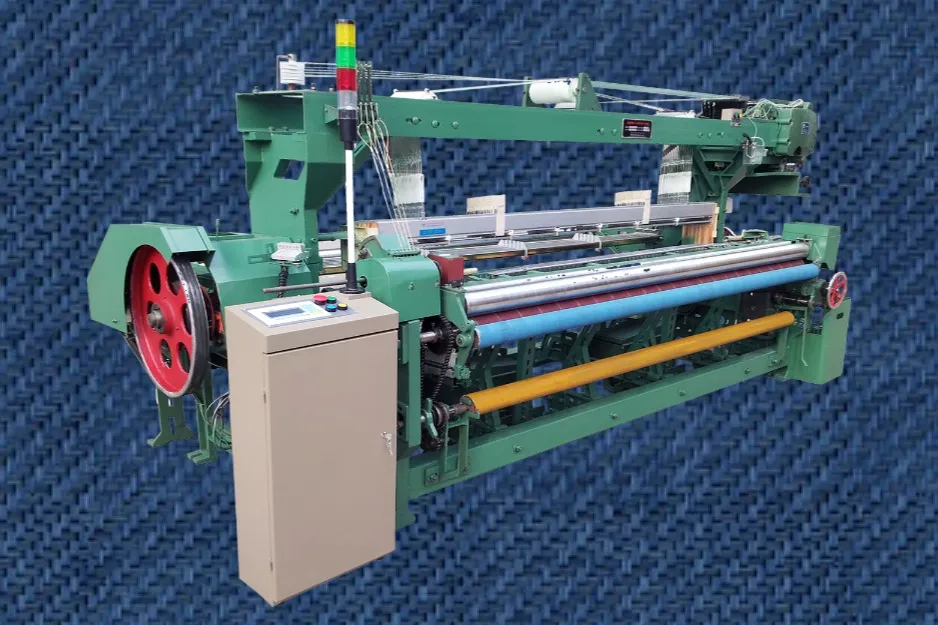

The GA788 is a compact rapier loom and the upgraded successor to the 747 series, delivering higher speed, more stable performance and a longer service life. It handles a wide range of fibers, including cotton, polyester, wool and linen, plus chemical and blended yarns.
Micro-computer control, automatic warp and weft stop devices, and semi-automatic oil supply work together to protect fabric quality, while a reinforced frame lowers vibration and noise for higher-density, higher-quality output.
With high yield per unit area and broad fabric adaptability, the GA788 has become one of the most successful low-speed weaving solutions in the industry, priced to meet the needs of most customers.
Key Highlights
• Structure: Strong, heavy-body frame with reinforced girders
• Reliability: Low noise, long endurance, easy maintenance
• Flexibility: Optional take-up, gearbox and tuck-in configurations

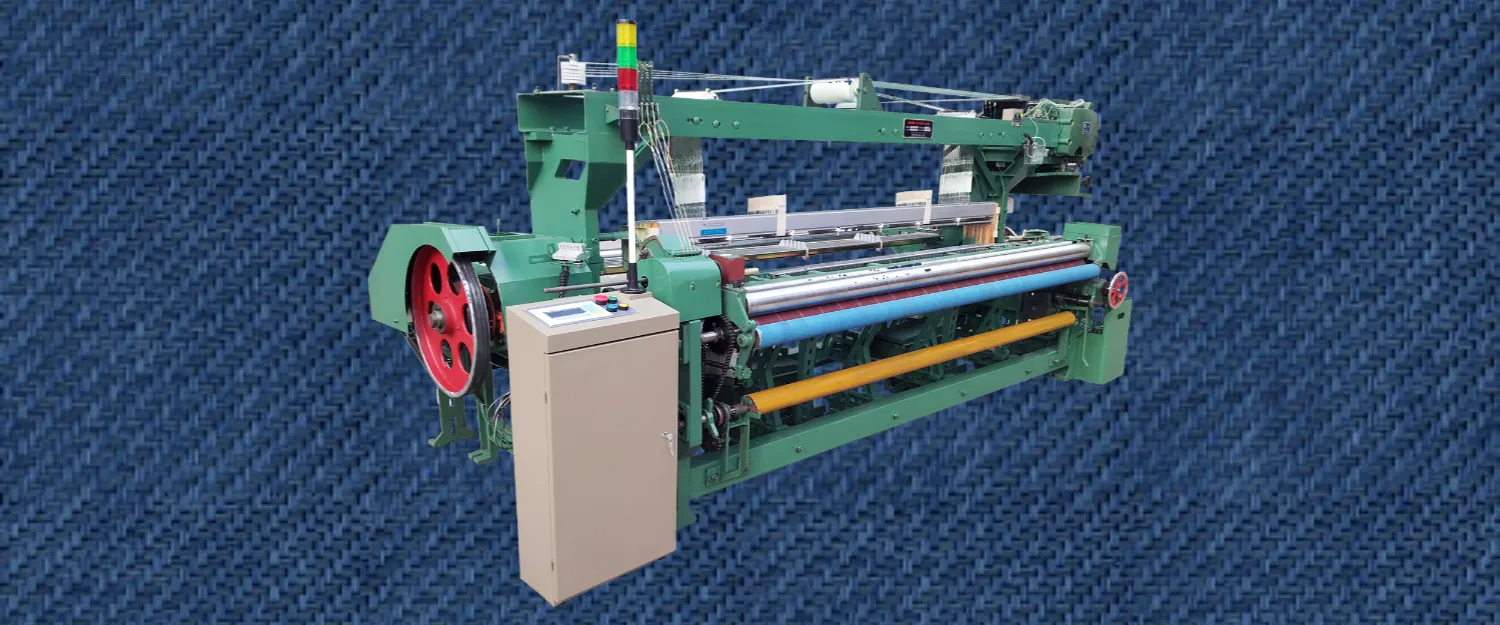

GA788 Rapier Loom
For the production of same quantity fabric, the super-wide width rapier weaving machine occupies less space than normal width looms, The wider width loom is also much more economic in terms of energy ...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Except for wider width weaving loom, Sinotextile can also provide weaving machines suitable for PC/PU fiber ribbons, carpets, luggage cover, outdoor mat, velvet, mesh fabric, bamboo fabric and etc. We...
GA788 Rapier Loom
Width | 1800mm-3600mm |
Operation speed | 120-215rpm |
Weft density | 10~47picks/cm |
Take up | mechanical take-up, beam diameter φ600mm |
Letoff | mechanical let-off, beam diameter φ300mm or φ400mm |
Shedding | GT221 inhead type mechanical dobby or electronic dobby, 20 heald frames at most |
Color selector | 4~6 colors |
Selvage | Left, right and central tuck in device optional |
Maindrive | 1.5kw |
Automatic functions | automatic warp stop, automatic weft stop |
Electronic control | micro-computer control, LCD display of working statistics data |
Contact our technical team to discuss your specific requirements and get a customized quote.
