The DF71J carries every capability of its sibling models, then adds high speed, low vibration and excellent stability on top, making it especially well-suited to weaving thin fabrics at speed.
That combination has earned it a strong reputation in the silk, wool and leisure fabric markets, where a highly automatic weaving process and consistent fabric quality matter as much as raw speed.
Depending on production needs, the DF71J can run on a three-phase asynchronous motor with inverter for strong start-stop force, or a super motor direct drive for a simpler, more efficient layout.
Key Highlights
• Weft insertion: Crank-connecting rod for perfect high-speed operation
• Beat-up: Bilateral conjugate cam, short stroke, strong force
• Lubrication: Closed circulating system with oil warnings
• Frame: 4 casting panels for stability, low vibration

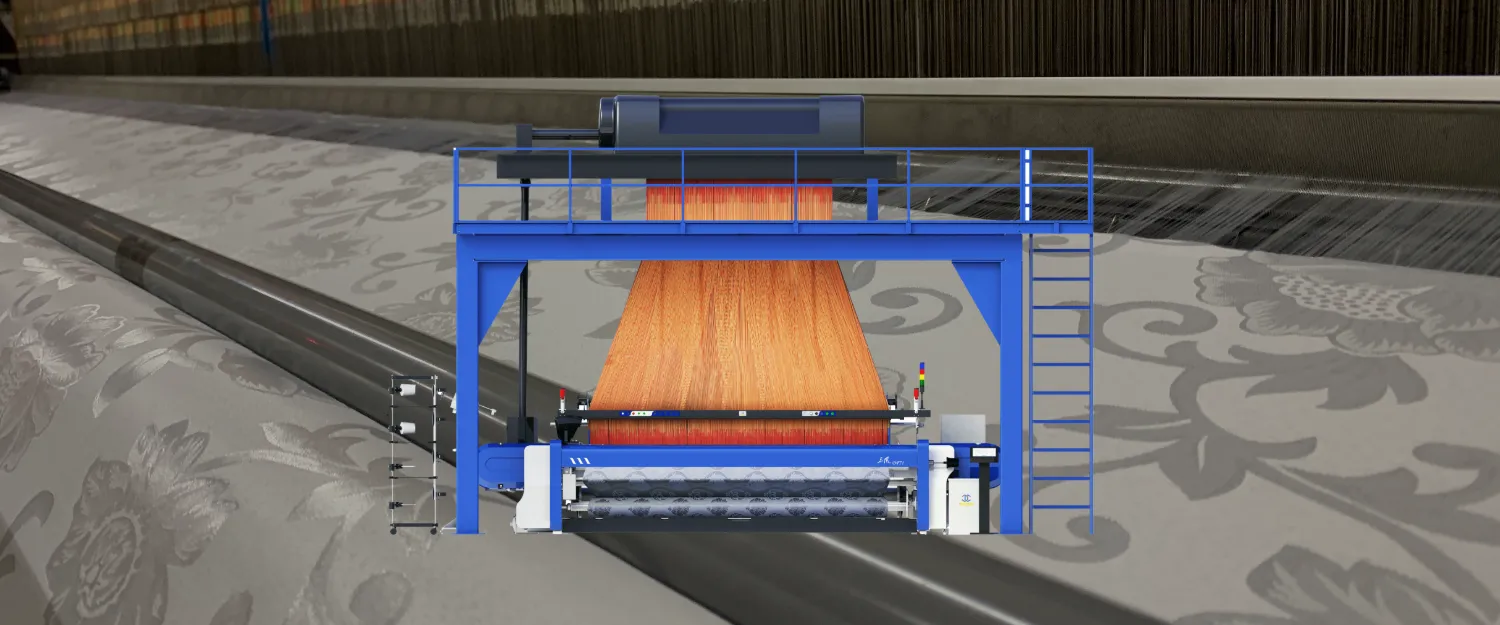

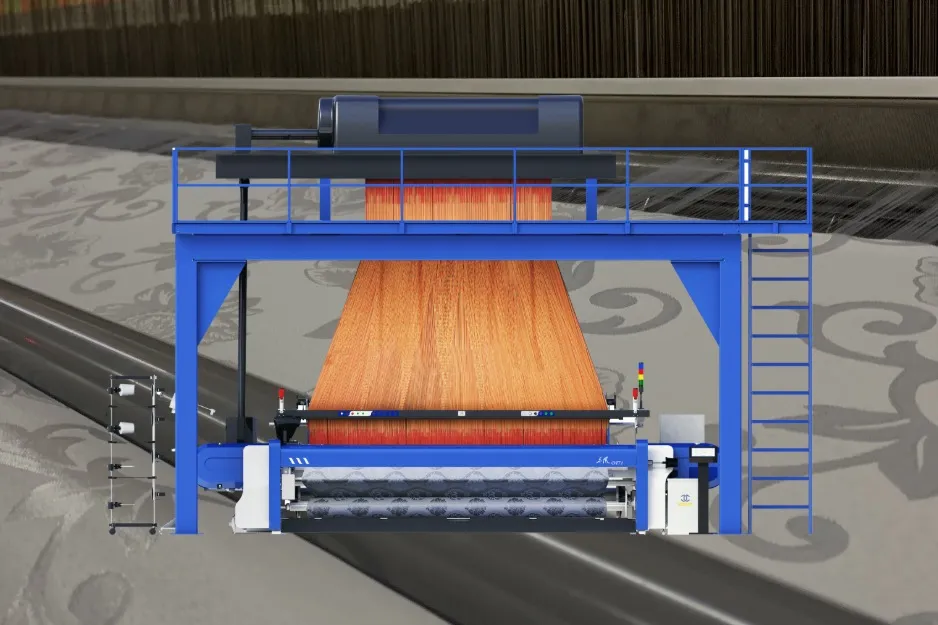

DF71J Rapier Jacquard Loom
A special weft feeder works with dedicated main and auxiliary nozzles tuned for fiberglass, delivering reliable insertion while reducing the abrasion fiberglass yarn causes to nozzles and guides, exte...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Except for wider width weaving loom, Sinotextile can also provide weaving machines suitable for PC/PU fiber ribbons, carpets, luggage cover, outdoor mat, velvet, mesh fabric, bamboo fabric and etc. We...

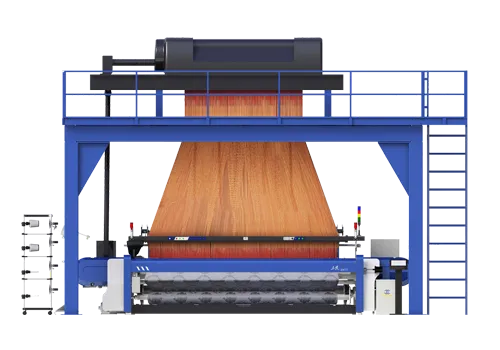

DF71J Rapier Jacquard Loom
Width | 190cm, 220cm, 230cm, 260cm, 290cm, 320cm, 340cm, 360cm |
Operation speed | max design speed 380rpm, economic speed 260~310rpm (340cm model) |
Weft density | 2~200 picks/cm |
Take up | electronic take-up driven by servo motor, beam diameter φ600mm |
Letoff | electronic let-off driven by servo motor, beam diameter φ800mm orφ1000mm |
Shedding | Chinese electronic jacquard with 1344, 2688, 5120, 6144 or 12288 hooks |
Color selector | high speed electronic weft selector controlled by stepping motor(2-8 colors) |
Selvage | jacquard leno edge, or electronic leno selvage device controlled by stepping motor |
Maindrive | super motor or three-phase asynchronous motor + inverter |
Automatic functions | automatic warp stop, automatic weft stop,automatic pick finding |
Electronic control | With 32-bit CPU control system and embedded software |
Contact our technical team to discuss your specific requirements and get a customized quote.
