A weft feeder, or weft accumulator, winds a reserve of weft yarn and releases it under controlled tension as each pick is inserted, keeping tension variation to a minimum from the bobbin to the loom. An electromagnetic solenoid hook stops the winding automatically once the preset yarn length is reached, so every pick draws exactly the amount needed.
We offer a full range of weft feeders and accumulators for rapier, water jet, air jet and projectile looms, built from high-quality, durable materials for long-lasting performance and lower maintenance costs.
Whether you weave home textiles such as cotton, polyester, linen, or industrial fabrics such as sisal, fiberglass, aramid fiber, we can provide the right solution for your weft feeding requirements.
Key Highlights
• Function: Electromagnetic solenoid hook, precise preset yarn control
• Consistency: Minimizes tension variation, bobbin to loom
• Compatibility: Rapier, water jet, air jet, projectile looms
• Tailored solution: Various solutions to meet you your specific needs
Weft Feeder & Parts

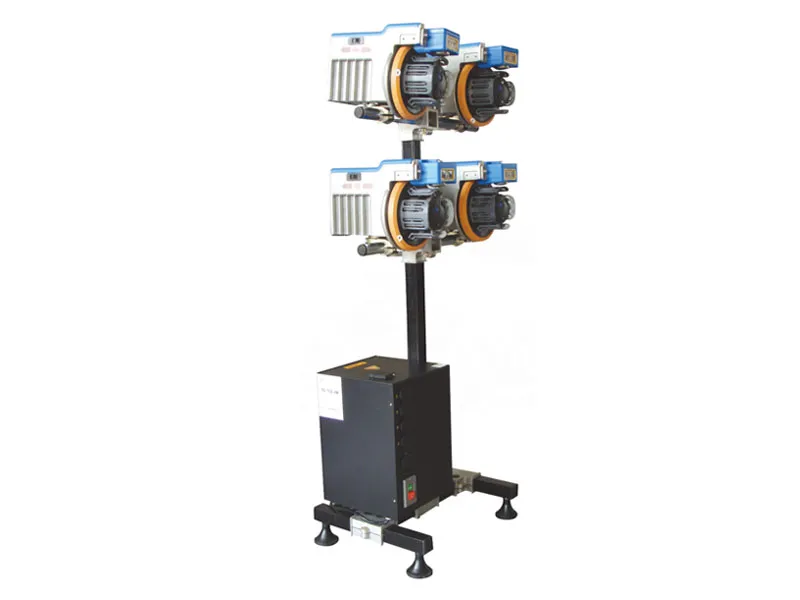

Featuring a well-engineered 4-color pick-at-will weft selecting system, this loom delivers durable, reliable, and highly efficient performance.
The 1-color insertion loom can be easily upgraded to a 4-color pick-at-will loom. This system expands the loom's weaving range, enabling the production of higher value-added fabrics.
The blast motor for mechanical length measuring is eliminated, significantly reducing power consumption and lowering maintenance costs by minimizing the replacement of wear-prone parts.
Weft length can be precisely adjusted by varying the diameter of the weft storage drum (continuously adjustable) and the number of release turns, effectively eliminating weft waste.
This model shares all the features of the TS-712-4A.
An incremental encoder sensor ensures precise timing for weft insertion, and all insertion parameters can be adjusted via a hand-held terminal.
Pattern control is achieved through a dobby mechanism, which fundamentally resolves pattern synchronization issues.

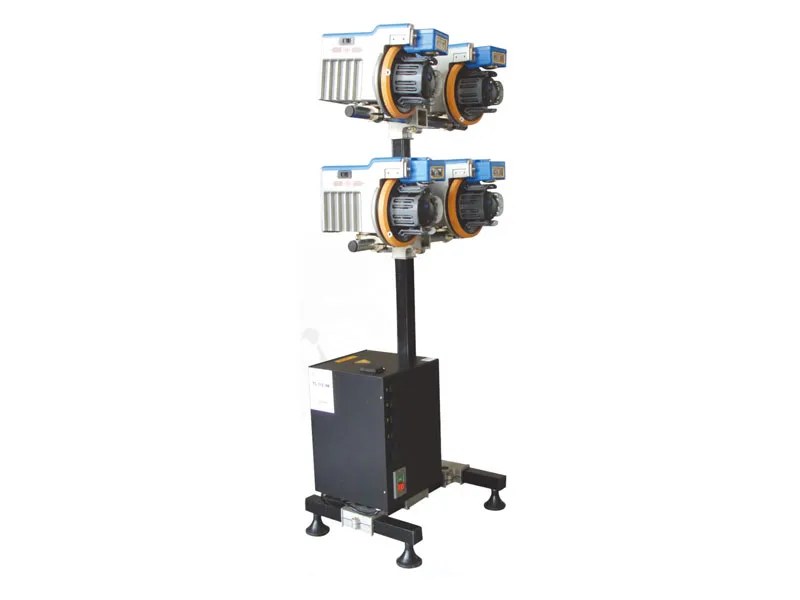

This model shares all the features of the TS-712-4A.
An incremental encoder sensor ensures precise timing for weft insertion, and all insertion parameters can be adjusted via a hand-held terminal.
Pattern control is achieved through a dobby mechanism, which fundamentally resolves pattern synchronization issues.

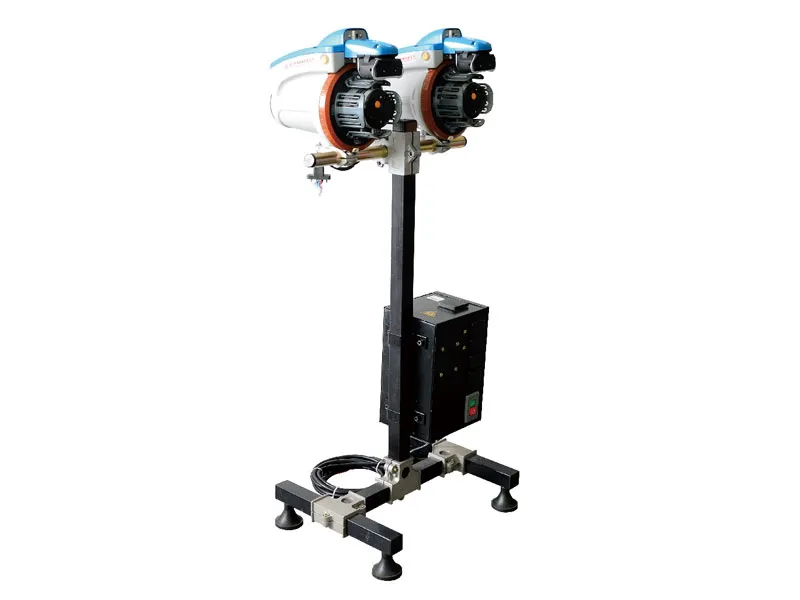

It is suitable for water jet looms with either a 1-color/1-pump or 2-color/2-pump configuration.

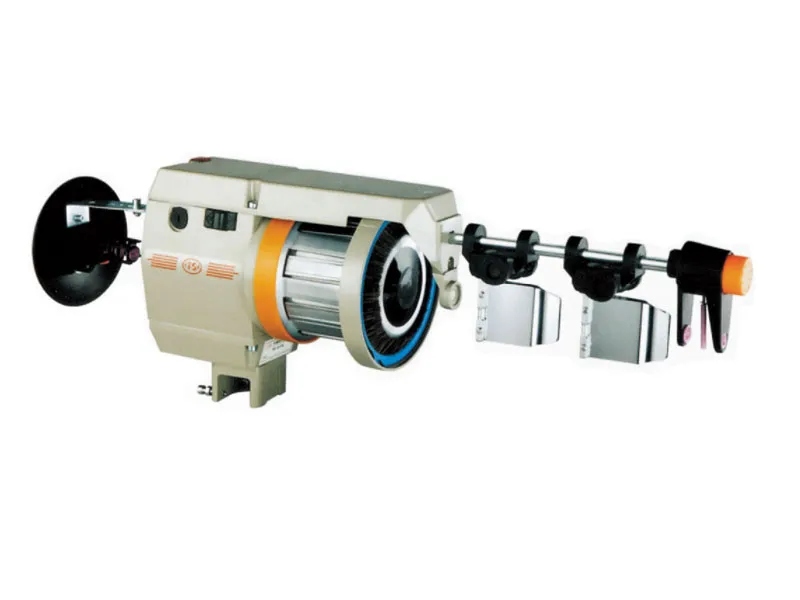

The TS612 series weft feeder adopts advanced technologies including PC control, automatic speed adjustment, and positive yarn feeding. It features a compact, refined structure and reliable performance, along with uniform weft tension and a wide range of applicable yarn counts. It is suitable for all types of rapier looms and projectile looms.
Characteristics
Automatic speed control
Stable and reliable yarn-breakage sensor
Fully enclosed yarn storage drum
Continuously adjustable yarn spreader
Simple S/Z direction conversion technology
Low energy consumption, high efficiency
Compact external design, saving installation space
Stable tension control ensures reliable operation

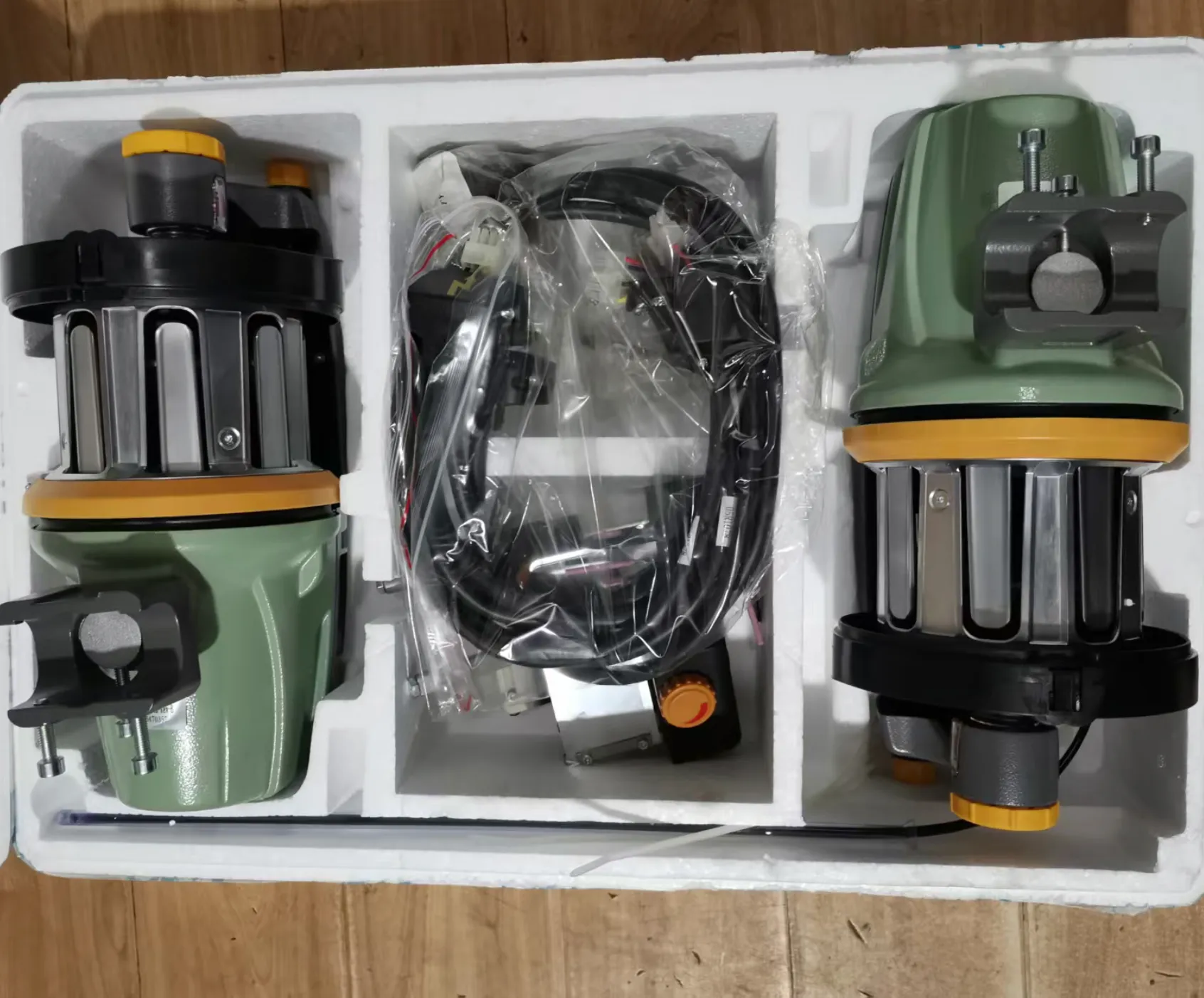

The G2 model uses a permanent magnet motor and a metal sensor system. With multiple improvements, it can further deliver better speed control, simpler operation, and longer service life.
Maximum speed: 1600 m/min
Yarn count range: 120 Nm – 2 Nm, 20 dtex – 3500 dtex
Yarn separation: 0 – 2.2 mm
Dimensions: 330 mm (L) × 151 mm (W) × 190 mm (H)
Weight: 5.2 kg
 |  |  |  |
 |  |  |  |
Contact our technical team to discuss your specific requirements and get a customized quote.
