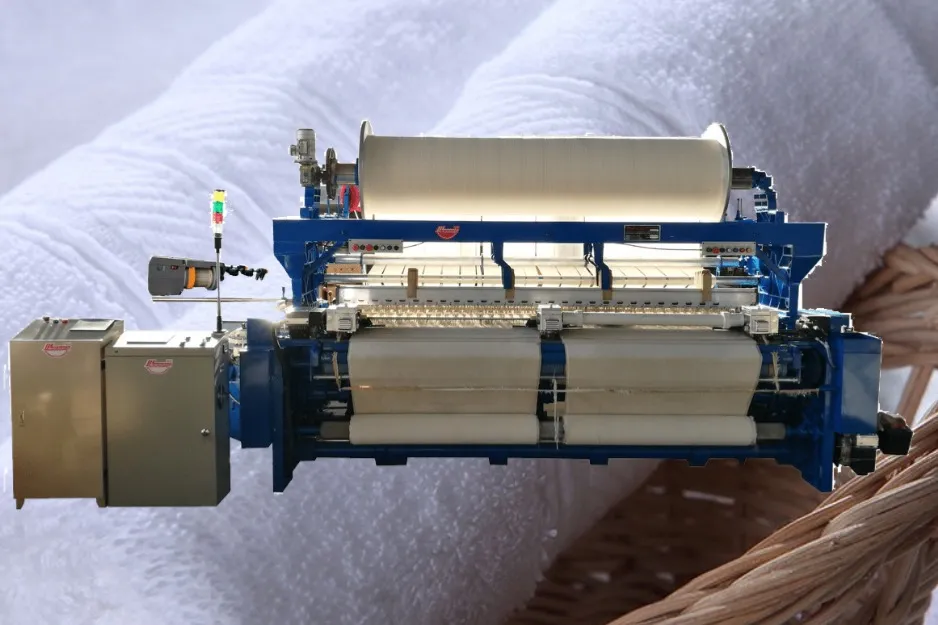

The GA738-II is an underneath-type dobby towel loom, distinguishing it from other models in our lineup, and it has built a strong reputation since release for stable operation, cost performance, easy maintenance, long service life and excellent fabric quality.
A reinforced beat-up structure boosts beating power for thick, heavy terry fabrics, and a thicker weft beating shaft holds enough rigidity to weave terry towels wider than 280cm without losing beat-up consistency across the width.
An optimized six-linkage weft insertion mechanism produces a gentler, more rational insertion curve, while two program-controlled electromagnets let the loom alternate between high and low terry within the same fabric.
Key Highlights
• Shedding type: Underneath-type dobby mechanism
• Beat-up: Reinforced structure for heavy terry
• Width: Above 280cm wide terry towels

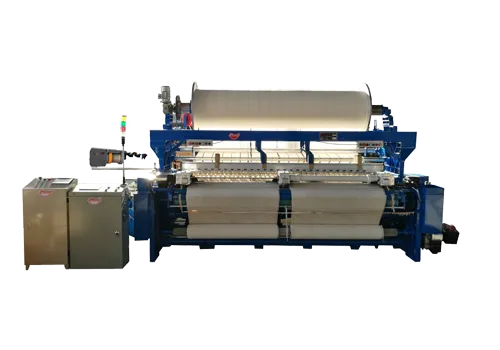

GA738-II Towel Loom
For the production of same quantity fabric, the super-wide width rapier weaving machine occupies less space than normal width looms, The wider width loom is also much more economic in terms of energy ...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Except for wider width weaving loom, Sinotextile can also provide weaving machines suitable for PC/PU fiber ribbons, carpets, luggage cover, outdoor mat, velvet, mesh fabric, bamboo fabric and etc. We...

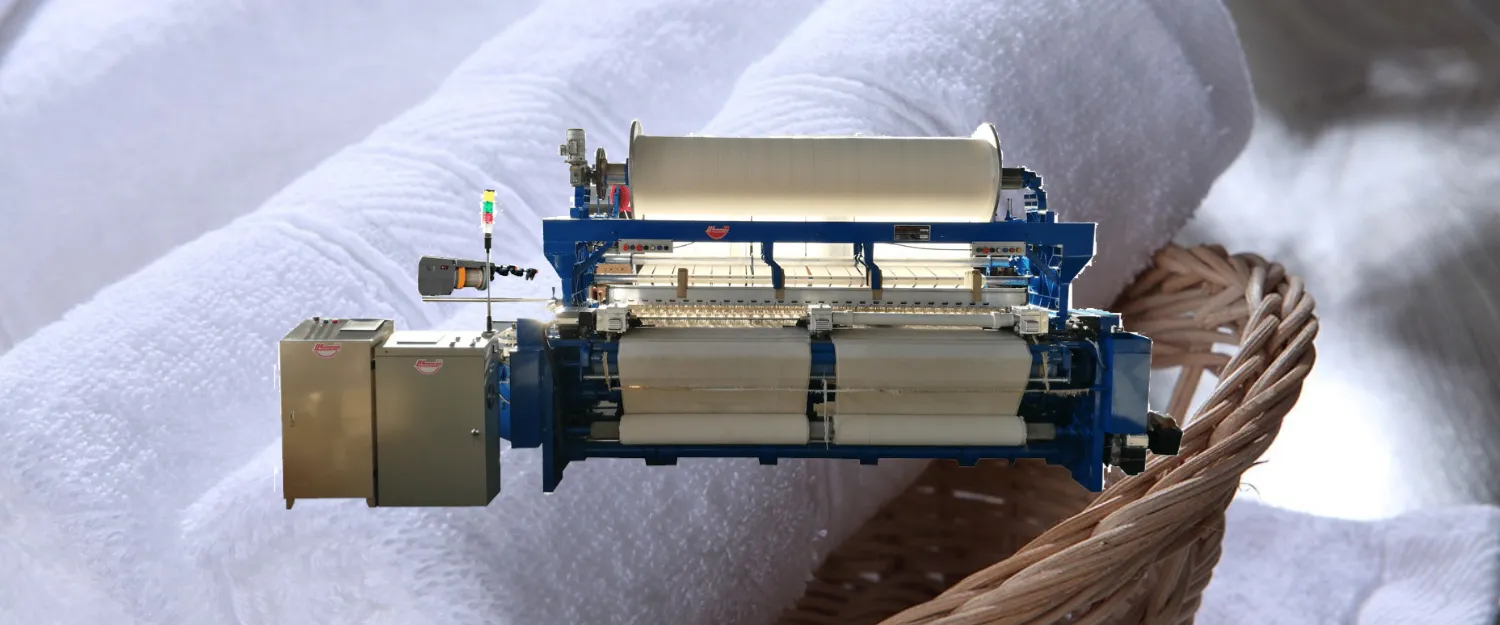

GA738-II Towel Loom
| Width | 4 meters ~ 50 meters (customizable) |
| Operation Speed | 30~120 rpm (depending on width) |
| Yarn Scope | Cotton, polyester, fiberglass, carbon fiber, jute, sisal and etc. |
| Weft Density | 1~50 picks/cm |
| Beat-up System | Crank type and cam type (for light, medium and heavy fabrics) |
| Take Up | Electronic take-up driven by servo motor |
| Let-off | Electronic let-off driven by servo motor |
| Shedding | Electronic dobby or cam shedding |
| Weft Insertion | Flexible rapier with double width weaving capability |
| Special Feature | Double width weaving: 7m reed width can produce 13.5m fabric |
| Application | Carpet, agriculture, military, geotextile industry |
Contact our technical team to discuss your specific requirements and get a customized quote.
