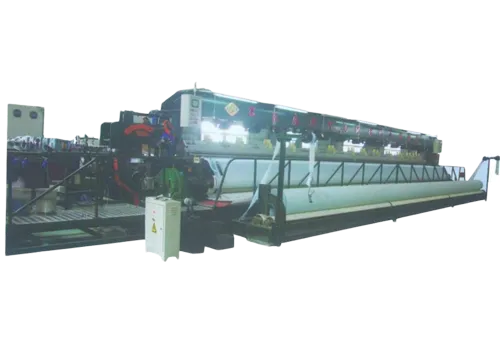

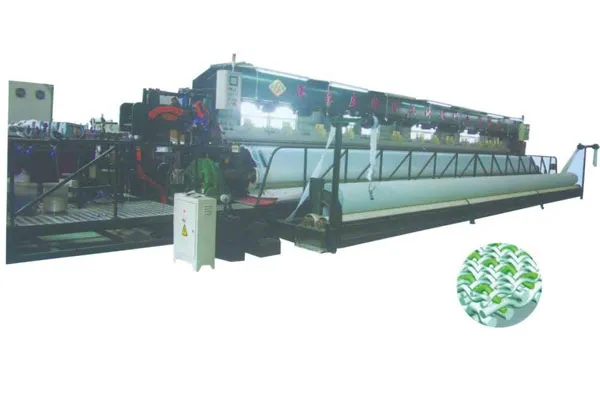

Paper forming fabric works in the wire section of a papermaking machine, dewatering pulp stock and forming the paper web, so it demands a precise mesh structure and high dimensional stability. Our loom is built to deliver exactly that, on a cast iron box-type body mounted on a one-piece substructure.
A bilateral pulling dobby shedding device with 20 heald frames creates complex shed patterns for fine mesh weaves, paired with servo-driven rapier head weft insertion and 4-color selection, while a multi-section crank four-linkage beat-up mechanism delivers up to 7 tons of beating power.
PLC computer control manages parameter settings and automatic fault display, keeping the loom easy to operate and maintain even during long, continuous production runs.
Key Highlights
• Take-up: Servo electronic, porcupine roller, continuous
• Let-off: Positive continuous, double beam
• Fabric rolling: Off-machine batch motion, independent torque motor
Paper Forming Mesh Weaving
For the production of same quantity fabric, the super-wide width rapier weaving machine occupies less space than normal width looms, The wider width loom is also much more economic in terms of energy ...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Except for wider width weaving loom, Sinotextile can also provide weaving machines suitable for PC/PU fiber ribbons, carpets, luggage cover, outdoor mat, velvet, mesh fabric, bamboo fabric and etc. We...
Paper Forming Mesh Weaving
| Reed Width | 550cm~1280cm | |||||||||
| Speed | 40rpm | |||||||||
| Range of yarn | Polyester monofilament, 0.1~0.8 mm. | |||||||||
| Weft density | 100~1200 picks/10cm. | |||||||||
| Power | 20KW~40KW | |||||||||
Contact our technical team to discuss your specific requirements and get a customized quote.
