A carbon fiber sample weaving machine is a compact, lab-scale loom used to develop and test new weave structures before committing to full production. Unlike full-size industrial looms, it typically works with narrower fabric widths, making it practical for research labs, universities and composite developers working with limited material and space.
Most carbon fiber lab weaving machines use single rapier weft insertion paired with dobby shedding, giving researchers precise, repeatable control over pattern changes, an essential capability when testing how different weave architectures affect a composite's mechanical properties.
This kind of small-scale prototyping lets composite manufacturers validate a new fiber architecture before investing in tooling and setup for full-scale production.
Key Highlights
Purpose: Test weave structures before full production
Users: Research labs, universities, composite developers
Insertion: Single rapier with dobby shedding

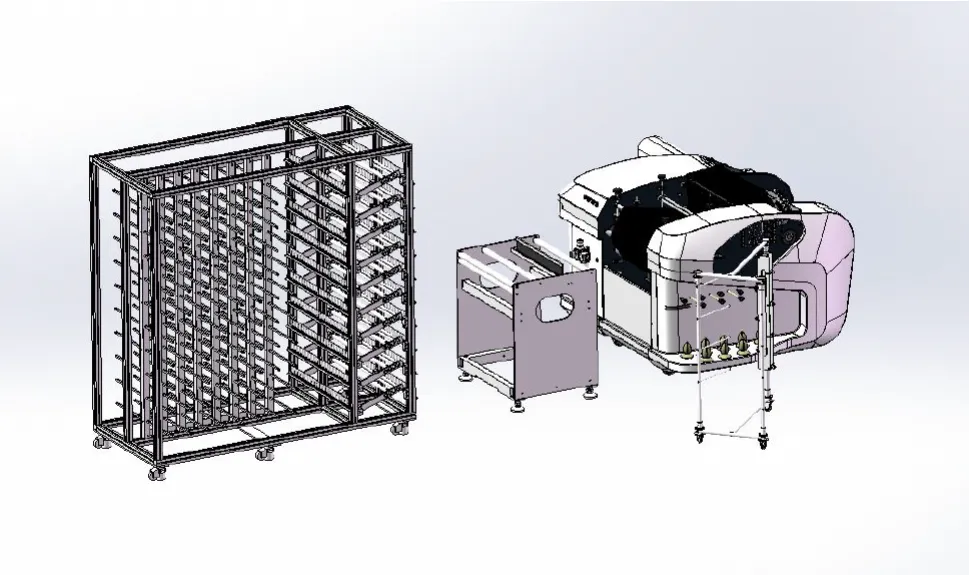

Carbon Fiber Sample Weaving Machine
Compact Lab-Scale Design: Built smaller than full production looms, the machine works with narrower fabric widths and less material, practical for a lab or R&D facility rather than a factory floor...
Compact Lab-Scale Design: Built smaller than full production looms, the machine works with narrower fabric widths and less material, practical for a lab or R&D facility rather than a factory floor...
Compact Lab-Scale Design: Built smaller than full production looms, the machine works with narrower fabric widths and less material, practical for a lab or R&D facility rather than a factory floor...
Compact Lab-Scale Design: Built smaller than full production looms, the machine works with narrower fabric widths and less material, practical for a lab or R&D facility rather than a factory floor...
Carbon Fiber Sample Weaving Machine
| SUITABLE FOR FABRIC WIDTH | MAXIMUM 36 INCH |
| HEALD FRAME | 20 PCS |
| SUITABLE WEAVING PATTERN | PLAIN, TWILL, SATIN, AND ETC |
| SUITABLE FOR YARN | CARBON FIBER, kevlar, fiberglass, etc |
| warp | 3-8 PICKS/CM, 1k~12k carbon fiber |
| weft | 3-8 PICKS/CM, 1k-12k carbon, fiberglass, kevlar |
| MACHINE SPEED | 30-40RPM |
| PRODUCTION CAPABILITY | 200~250 METERS PER DAY (24 HOURS) |
| PROTECTION LEVEL | all electronic PARTS with CARBON DUST PREVENTION, IP65 GRADE PROTECTION |
| Required voltage | 220V 50HZ |
| required space | 5000X3000X1700MM |
| required air: | 0.3-0.8MPA |
Contact our technical team to discuss your specific requirements and get a customized quote.
