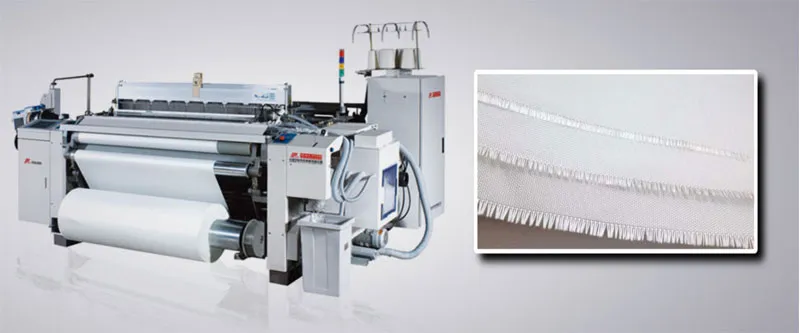

Weaving fiberglass on an air jet loom calls for equipment built specifically around the fiber's demands: a dedicated electronic control system, a stable four-bar beat-up mechanism, and a weft insertion system engineered to handle fiberglass yarn while resisting the abrasion it causes.
A negative let-off mechanism and a take-up system that eliminates weft movement work together to keep the fabric style and surface consistent, while a specially designed temple cylinder and selvedge cutter handle fiberglass's high hardness for smooth, clean edges.
The high-efficiency suction device clears fine fibers and flying particles for a safer, cleaner workshop, and an on-loom batch rolling system saves floor space while rolling fabric up to 800mm in diameter.
Key Highlights
• Control: Electronic control system built for fiberglass
• Beat-up: Stable, powerful four-bar mechanism
• Rolling: On-loom batching up to 800mm diameter

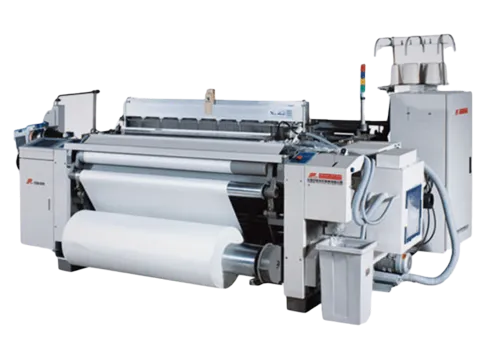

Fiberglass Weaving
A special weft feeder works with dedicated main and auxiliary nozzles tuned for fiberglass, delivering reliable insertion while reducing the abrasion fiberglass yarn causes to nozzles and guides, exte...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Except for wider width weaving loom, Sinotextile can also provide weaving machines suitable for PC/PU fiber ribbons, carpets, luggage cover, outdoor mat, velvet, mesh fabric, bamboo fabric and etc. We...
Fiberglass Weaving
| Width | 4 meters ~ 50 meters (customizable) |
| Operation Speed | 30~120 rpm (depending on width) |
| Yarn Scope | Cotton, polyester, fiberglass, carbon fiber, jute, sisal and etc. |
| Weft Density | 1~50 picks/cm |
| Beat-up System | Crank type and cam type (for light, medium and heavy fabrics) |
| Take Up | Electronic take-up driven by servo motor |
| Let-off | Electronic let-off driven by servo motor |
| Shedding | Electronic dobby or cam shedding |
| Weft Insertion | Flexible rapier with double width weaving capability |
| Special Feature | Double width weaving: 7m reed width can produce 13.5m fabric |
| Application | Carpet, agriculture, military, geotextile industry |
Contact our technical team to discuss your specific requirements and get a customized quote.
