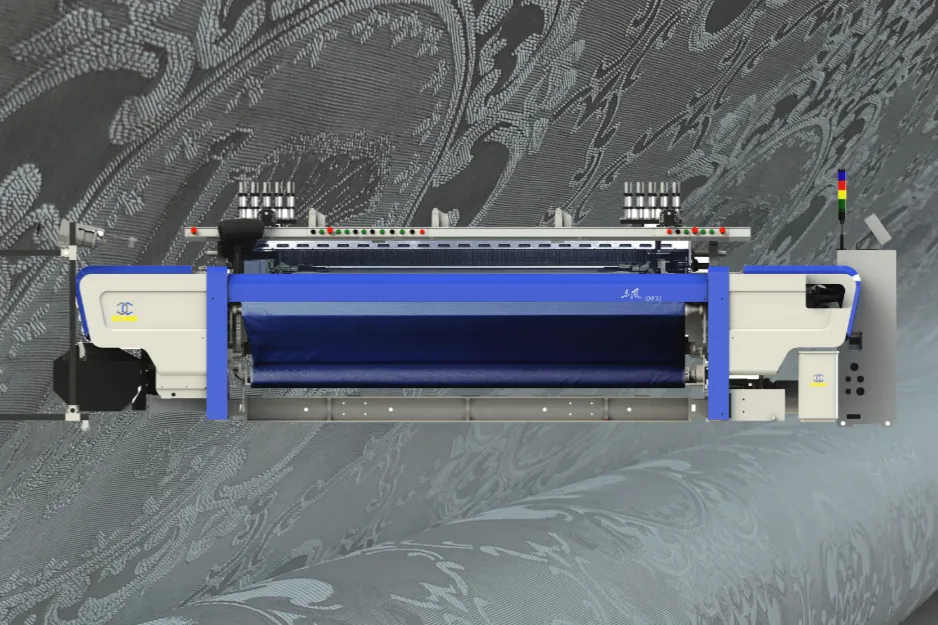

The DF31 is a high-speed rapier loom engineered to European industrial standards, matching the performance of its European counterparts feature for feature. It is a top-tier machine, delivering excellent weaving speed and fabric quality at a price that undercuts comparable imported models.
From weft insertion to beat-up, lubrication and electrical control, every system on the DF31 works in concert to keep production stable and fabric quality consistent, run after run.
Depending on production needs, the DF31 can be configured with a high-power motor and electromagnetic clutch brake for strong start-stop force, or with a super motor direct drive for simpler, more efficient operation.
Key Highlights
• Weft insertion: Suspension guide hook or free-flight methods
• Beat-up: Bilateral conjugate cam, short stroke, strong force
• Control: 32-bit CPU with embedded software
DF31 Rapier Loom
For the production of same quantity fabric, the super-wide width rapier weaving machine occupies less space than normal width looms, The wider width loom is also much more economic in terms of energy ...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Except for wider width weaving loom, Sinotextile can also provide weaving machines suitable for PC/PU fiber ribbons, carpets, luggage cover, outdoor mat, velvet, mesh fabric, bamboo fabric and etc. We...
DF31 Rapier Loom
| Width | 4 meters ~ 50 meters (customizable) |
| Operation Speed | 30~120 rpm (depending on width) |
| Yarn Scope | Cotton, polyester, fiberglass, carbon fiber, jute, sisal and etc. |
| Weft Density | 1~50 picks/cm |
| Beat-up System | Crank type and cam type (for light, medium and heavy fabrics) |
| Take Up | Electronic take-up driven by servo motor |
| Let-off | Electronic let-off driven by servo motor |
| Shedding | Electronic dobby or cam shedding |
| Weft Insertion | Flexible rapier with double width weaving capability |
| Special Feature | Double width weaving: 7m reed width can produce 13.5m fabric |
| Application | Carpet, agriculture, military, geotextile industry |
Contact our technical team to discuss your specific requirements and get a customized quote.
