A warp beam is the aluminum roller that holds the wound yarn on weaving machines and warping machines, keeping tension and alignment consistent as the yarn unwinds.
Our warp beams handle different specification of yarns without bursting or deforming, raising production efficiency. With annual output of 200,000 pieces, we supply hundreds of companies worldwide.

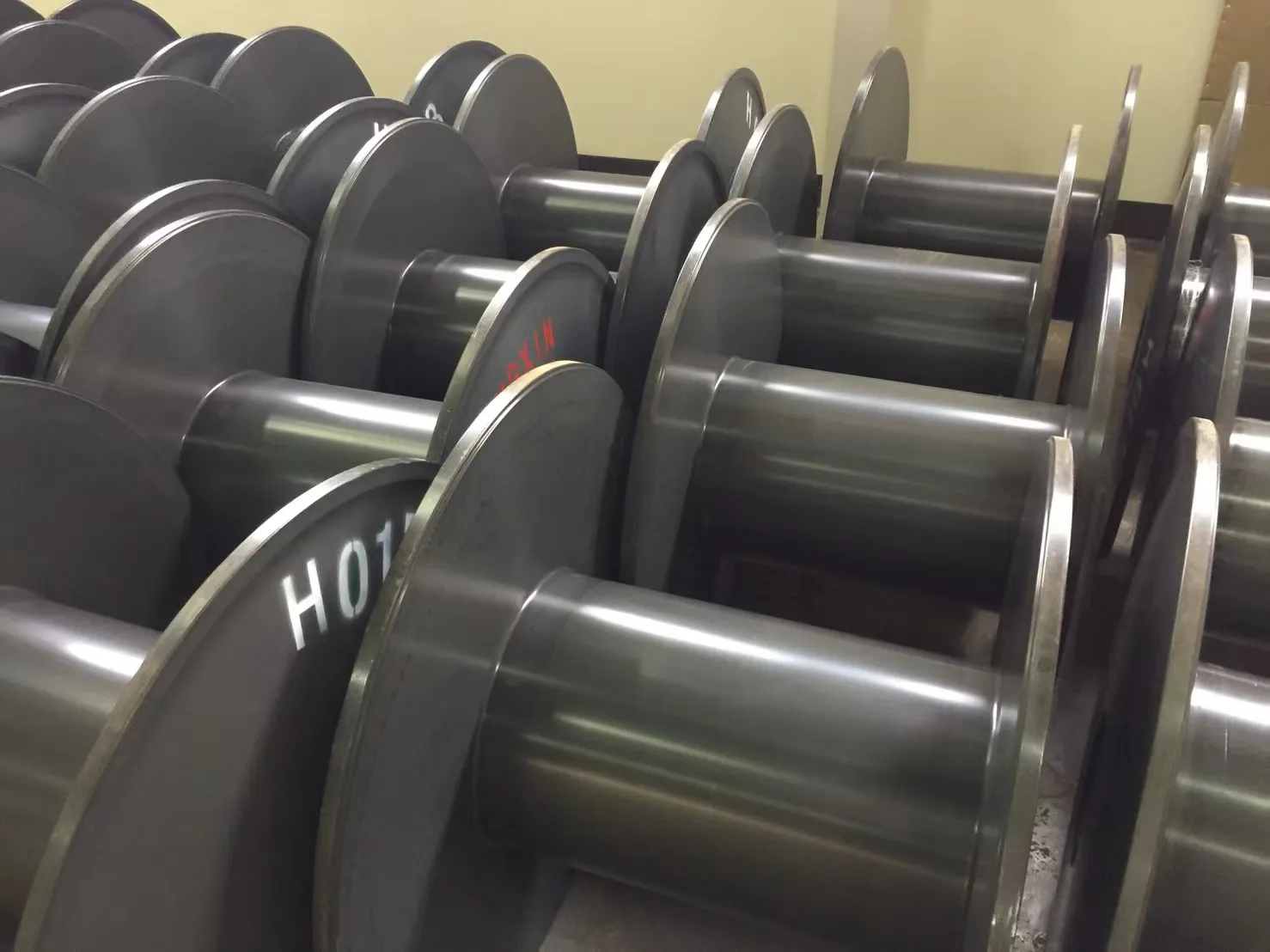

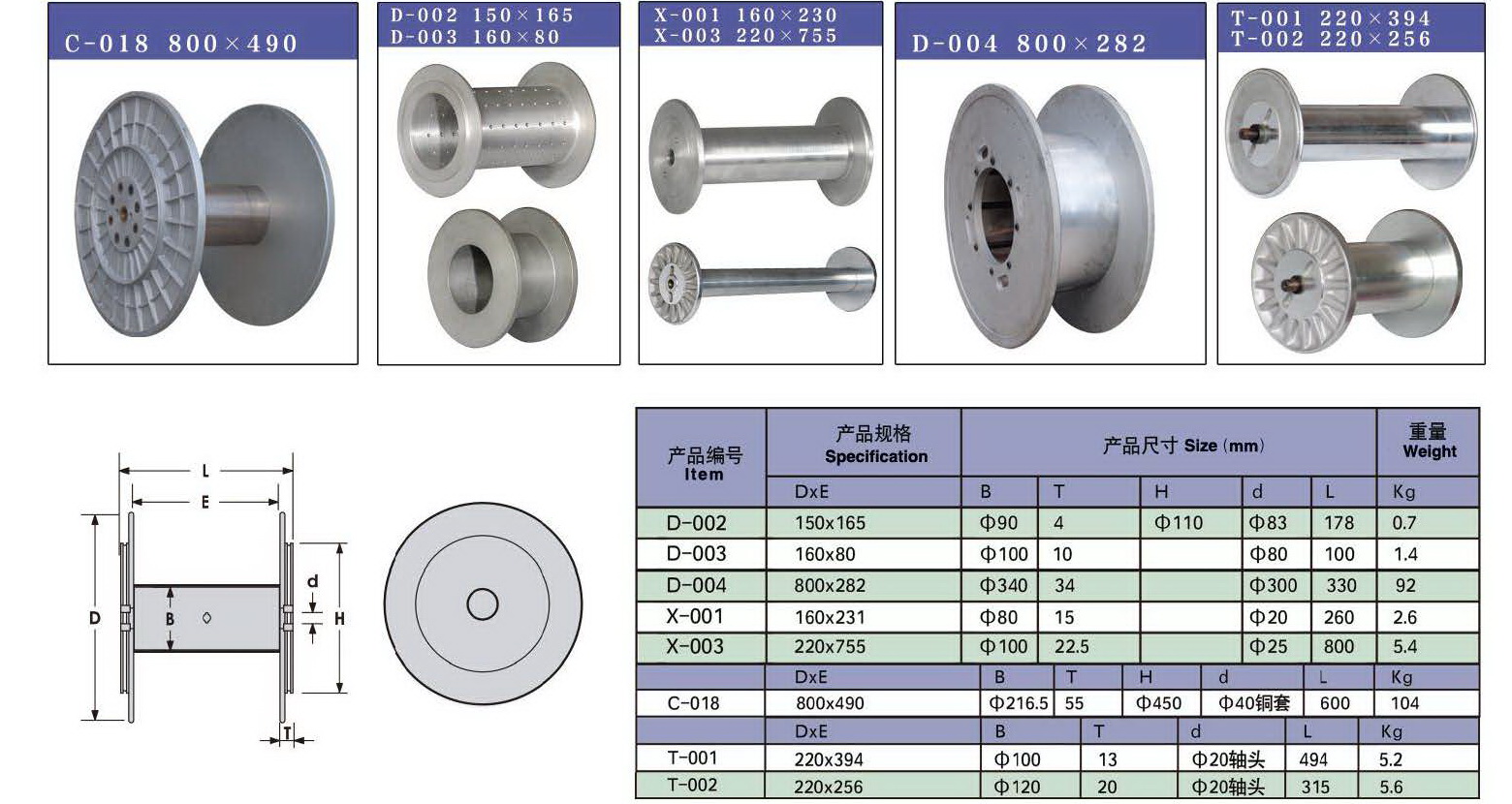

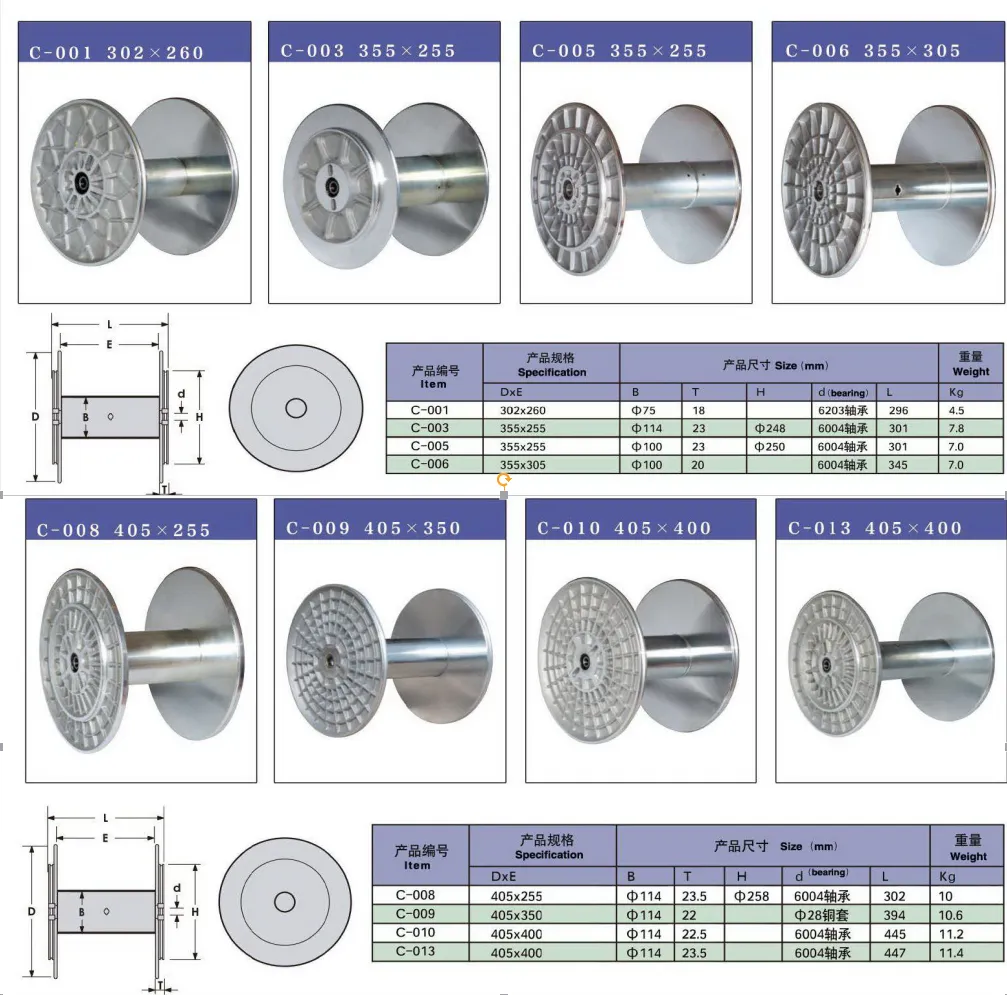

Depending on application, we care supplying yarn winding beams for warping machines, sizing machines, warp knitting machines, webbing looms, and all types of shuttleless looms, each built to the width and flange diameters required by leading brands. Special sizes beams can also be customized according to provided drawings. For warp knitting machines with smaller size beam, reinforced forging process option is available.
We also provide cloth beams for fabric winding purpose.
Key Highlights
• Available in both casting and forging technology
• Application of anodic oxidation treatment on the flange surface
• All beams will go through dynamic balance test before delivery
• Antirust and phosphatizing treatment on the beam tube

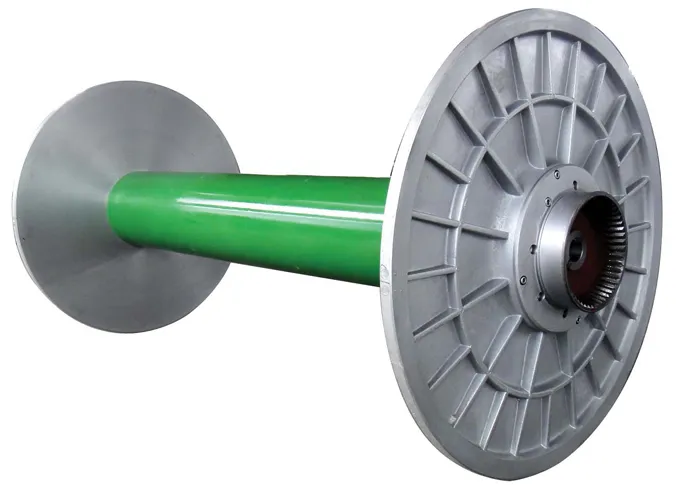

Warp Beam
We are supply beams for following warping machine and sizing machine models--
| Series | Type | Width(mm) | Beam Flange Dia (mm) |
| Beam for Warping Machine | Benninger | 1600 1800 | Φ800 Φ1000 |
| Karl Mayer | 1600 1800 | Φ800 Φ1000 | |
| Daya Yijin | 1600 1800 | Φ600 Φ800 Φ1000 | |
| Domestic GA121 | 1400 1600 | Φ600 Φ800 | |
| GA211 1452A BG | 1800 | Φ700 Φ1000 | |
| Japan Kanemaru | 1600 1800 | Φ800 Φ1000 | |
| Hacoba | 1600 1800 | Φ800 Φ1000 | |
| SA | 1600 1800 | Φ800 Φ1000 | |
| Beam for Sizing Machine | West Point | 1800 2000 | Φ1013 Φ880 |
| Tsudakoma TW | 1600 1800 | Φ600 Φ800 Φ1000 | |
| Kawamoto | 1600 1800 | Φ600 Φ800 Φ1000 | |
| Kanemaru | 1600 1800 | Φ600 Φ800 Φ1000 |
We have been supplying weaver's beam for following shuttleless weaving machine brands and model--
| Series | Type | Width(mm) | Width(mm) | Beam Flange Dia |
| Single | Double | |||

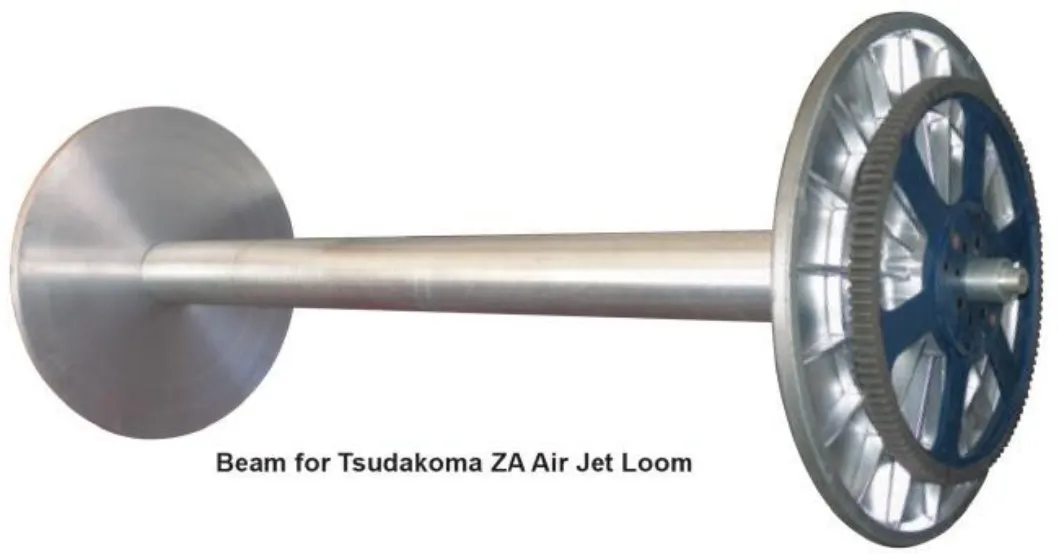

| Beam for Air Jet Loom | Tsudakoma ZA | 1900 2800 | 2800 | Φ800 Φ1000 |
| Toyota JAT | 1900 2800 | 2800 | Φ800 Φ1000 | |
| Picanol | 1900 2800 | 2800 | Φ800 Φ1000 | |
| Beam for Water Jet Loom | Nissan LW | 1700 1900 | Φ800 Φ1000 | |
| Tsudakoma ZW | 1700 1900 | Φ800 Φ1000 | ||
| Korea Water Jet | 1700 1900 | Φ800 Φ1000 | ||
| Beam for Projectile Loom | Sulzer RUTI | 1900 3900 | 3900 | Φ800 Φ1000 |
| Picanol | 1800 2800 | 2800 | Φ800 Φ1000 | |
| Beam for Rapier Loom | Somet | 1900 2800 | 2800 | Φ800 Φ1000 |
| Thema11E | 1900 2800 | 2800 | Φ800 Φ1000 | |
| Fast | 1900 2800 | 2800 | Φ800 Φ1000 | |
| LL680 | 1900 | Φ800 Φ1000 | ||
| RNV | 1900 | Φ800 Φ1000 |
The flange is made of high-strength aluminum alloy and processed through high-pressure forging, ensuring excellent rigidity and durability.
The shaft is made of high-strength aluminum alloy and formed by precision extrusion, offering high strength and accuracy.
Welding is carried out using an automatic welding method under an inert shielding gas atmosphere, ensuring high-precision weld quality.

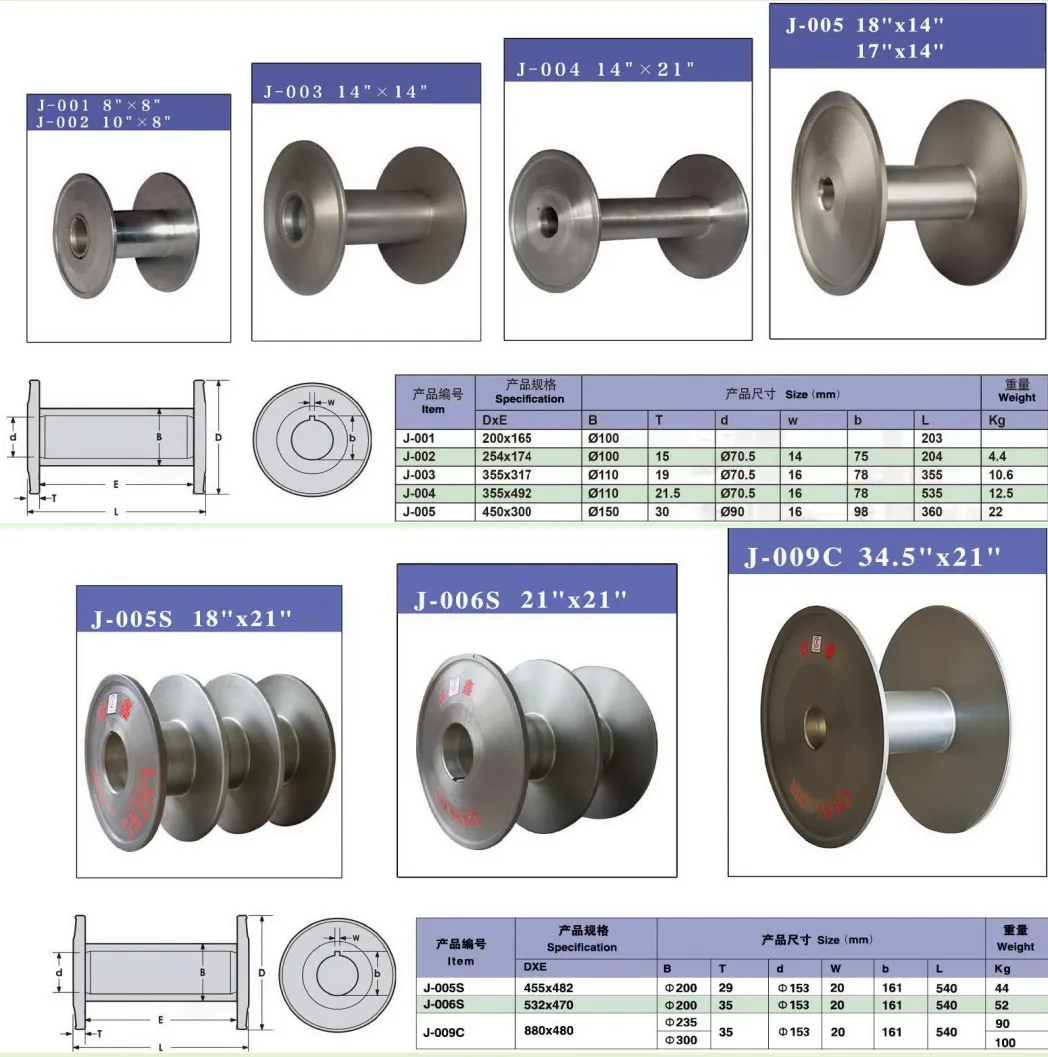

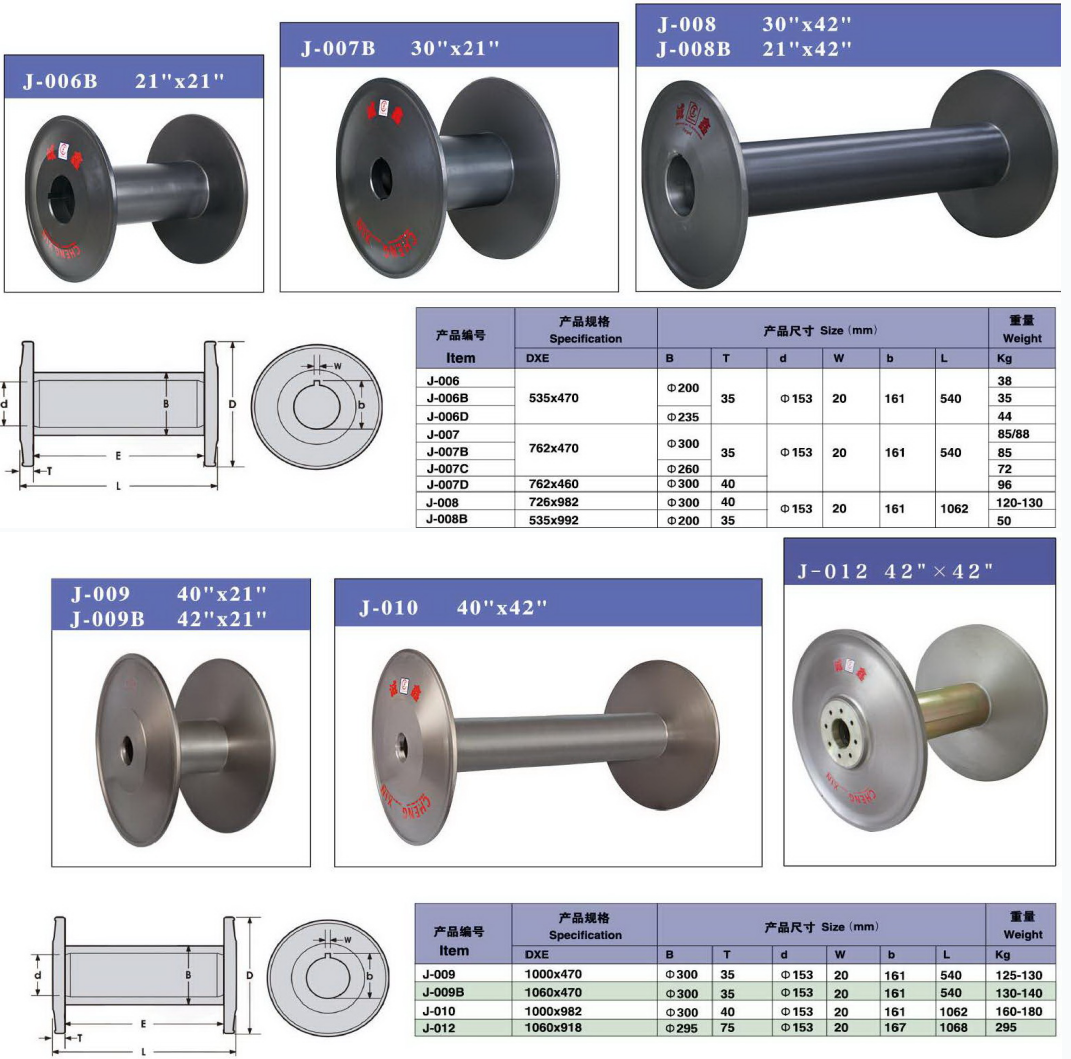

Available in a complete range of specifications, including models such as 14" × 14", 17" × 17", 21" × 21", 30" × 21", and 30" × 42". Other specifications can also be manufactured according to customers’ specific requirements

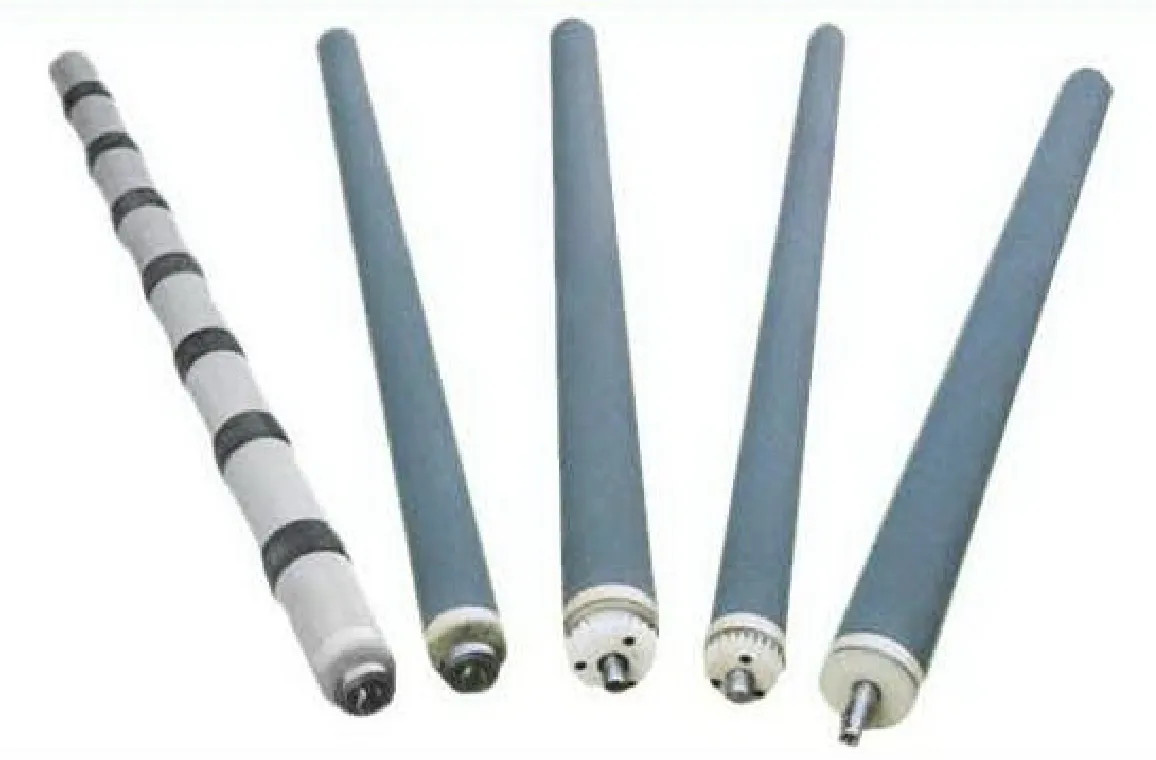

We also supply cloth beams for winding finished fabrics, for different weaving models and different width. Customization also available.
Contact our technical team to discuss your specific requirements and get a customized quote.
