A window screen, also called insect screen, bug screen or fly screen, is a plastic wire mesh stretched across a wood or metal frame to keep insects out while still allowing airflow through an open window.

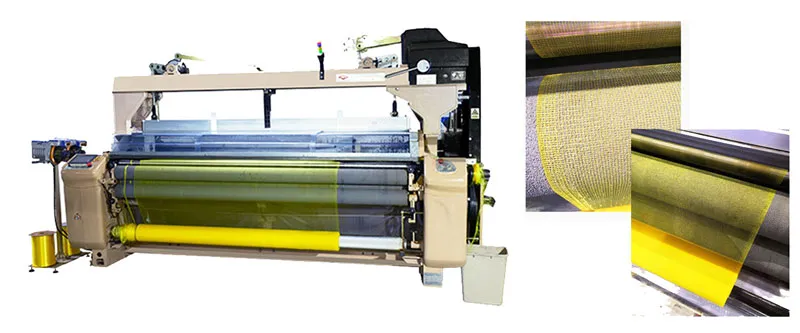

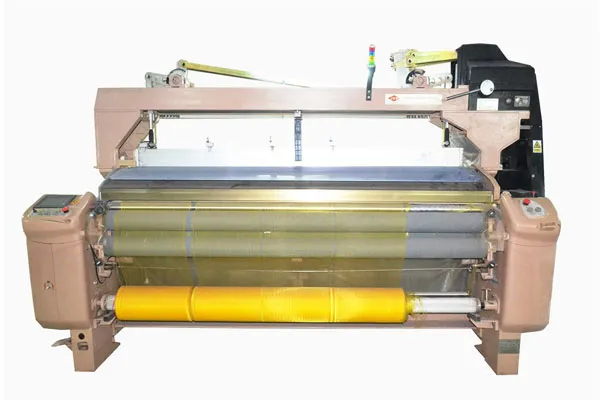

Our SINO609 window screen weaving machine is built specifically for this fabric, weaving plain, leno, three-strand and five-strand structures on one platform, so mills can offer different mesh styles without switching machines.
It's designed for easy operation and low-cost maintenance, giving it strong cost performance for mills producing window screen fabric at scale.
Key Highlights
• Model: SINO609 window screen weaving machine
• Weave options: Plain, leno, three-strand, five-strand
• Value: Easy operation, low-cost maintenance
Window Screen Weaving
For the production of same quantity fabric, the super-wide width rapier weaving machine occupies less space than normal width looms, The wider width loom is also much more economic in terms of energy ...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Window Screen Weaving
| Width | 4 meters ~ 50 meters (customizable) |
| Operation Speed | 30~120 rpm (depending on width) |
| Yarn Scope | Cotton, polyester, fiberglass, carbon fiber, jute, sisal and etc. |
| Weft Density | 1~50 picks/cm |
| Beat-up System | Crank type and cam type (for light, medium and heavy fabrics) |
| Take Up | Electronic take-up driven by servo motor |
| Let-off | Electronic let-off driven by servo motor |
| Shedding | Electronic dobby or cam shedding |
| Weft Insertion | Flexible rapier with double width weaving capability |
| Special Feature | Double width weaving: 7m reed width can produce 13.5m fabric |
| Application | Carpet, agriculture, military, geotextile industry |
Contact our technical team to discuss your specific requirements and get a customized quote.
