The LG798-I is a versatile industrial weaving loom, equally capable with natural fibers like cotton, wool, linen and jute as it is with synthetic fiber and plastic wire rope, making it especially strong at industrial fabrics and building cloth.
As a reliable replacement for shuttle looms, it offers extensive fiber adaptability and the strength to weave thick, heavy fabric without sacrificing speed or consistency.
It weaves geotechnical cloth, filter cloth, canvas, electronic fabric, gridding cloth, car cloth, airplane cloth, glass-fiber mesh and more, all at a genuinely competitive price.
Key Highlights
• Fiber range: Cotton, wool, linen, jute, synthetic, plastic wire rope
• Capability: Weaves thick, heavy fabric
• Value: Shuttle loom replacement at competitive price

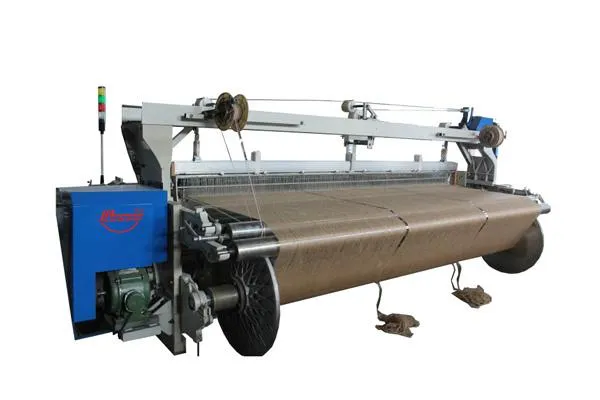

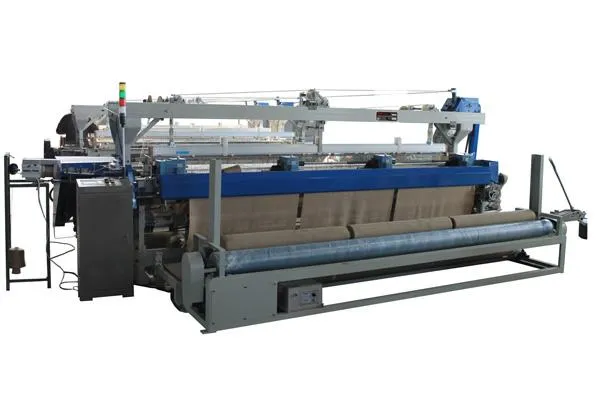

LG798-I Jute Loom
A special weft feeder works with dedicated main and auxiliary nozzles tuned for fiberglass, delivering reliable insertion while reducing the abrasion fiberglass yarn causes to nozzles and guides, exte...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...

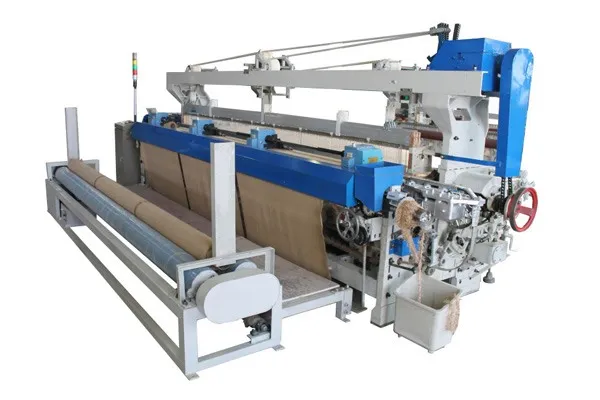

LG798-I Jute Loom
Width | 180cm~850cm |
Operation speed | Maximum weft insertion 250 picks/min, maximum weft insertion rate 750/min |
Weftyarn count range | Cotton 5Ne~80Ne Jute 8Nm~130Nm Man-made fiber 1200dtex~75tex |
Weft selection | Mechanical or electronic selection |
Dia.Beam flange | φ800mm |
Dia. roller | Φ600mm~Φ1500mm |
Shedding device | Upper mechanical dobby, or electronic dobby |
Heald frame | 6~16pcs |
Warp stop | Electronic introduction control |
Weft stop | 6 row electrical |
Motor power | 1.5KW~2.2KW |
Main motor | Centralized oil |
Contact our technical team to discuss your specific requirements and get a customized quote.
