We have more than 20 years experience in research, development and distribution of weaving loom reeds. We manufacture reed for rapier loom, projectile loom, water jet loom, air jet loom, shuttle loom and etc. The advanced infrastructure and mature technology ensure quality and performance of our flat reeds and profile reeds. The weaving reeds supplied by us have got worldwide recognition from customers.

Reed for Air Jet Looms (Profile Reed)

We manufacture profile reeds for different models of air jet loom from domestic and overseas market, covering brands of Tsudakoma, Toyota, Picanol, Dornier, Nissan, Somet, Sulzer and etc. Equipped with the most advanced reed manufacturing line, technique, and detecting instrument, we are able to supply air jet loom reeds for high speed, wide width, high efficiency, energy saving, diversified and high value-add weaving. We can manufacture 360~420dents/cm, up to 5400mm width, with DLC hardness reaching HV3000, and e-reed that can save about 20% to 35% of air consumption. Customization service also available.

Our Inspection
1.Each dent will be checked piece by piece.
2.Dent will be checked by counter.
3.Auto air detector and grinding device will be used to check air pressure value.

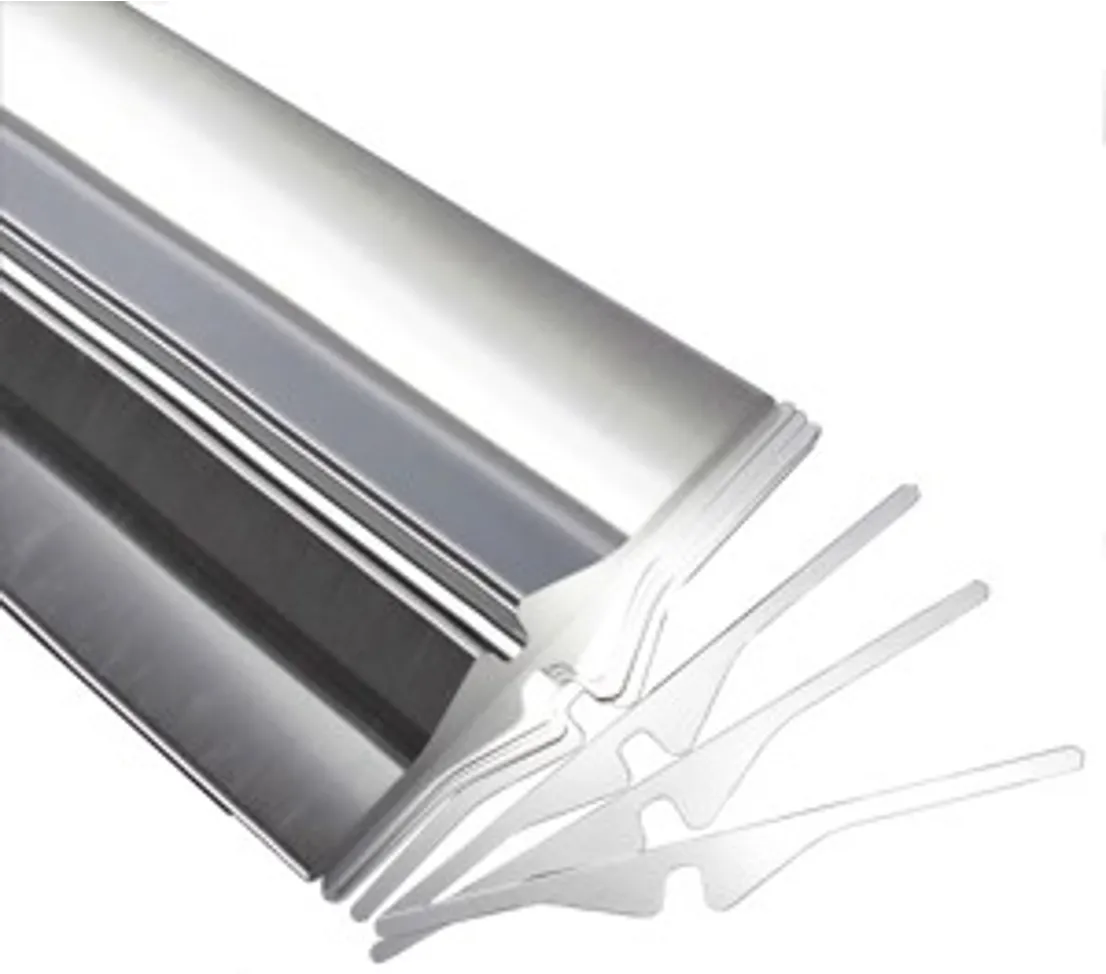

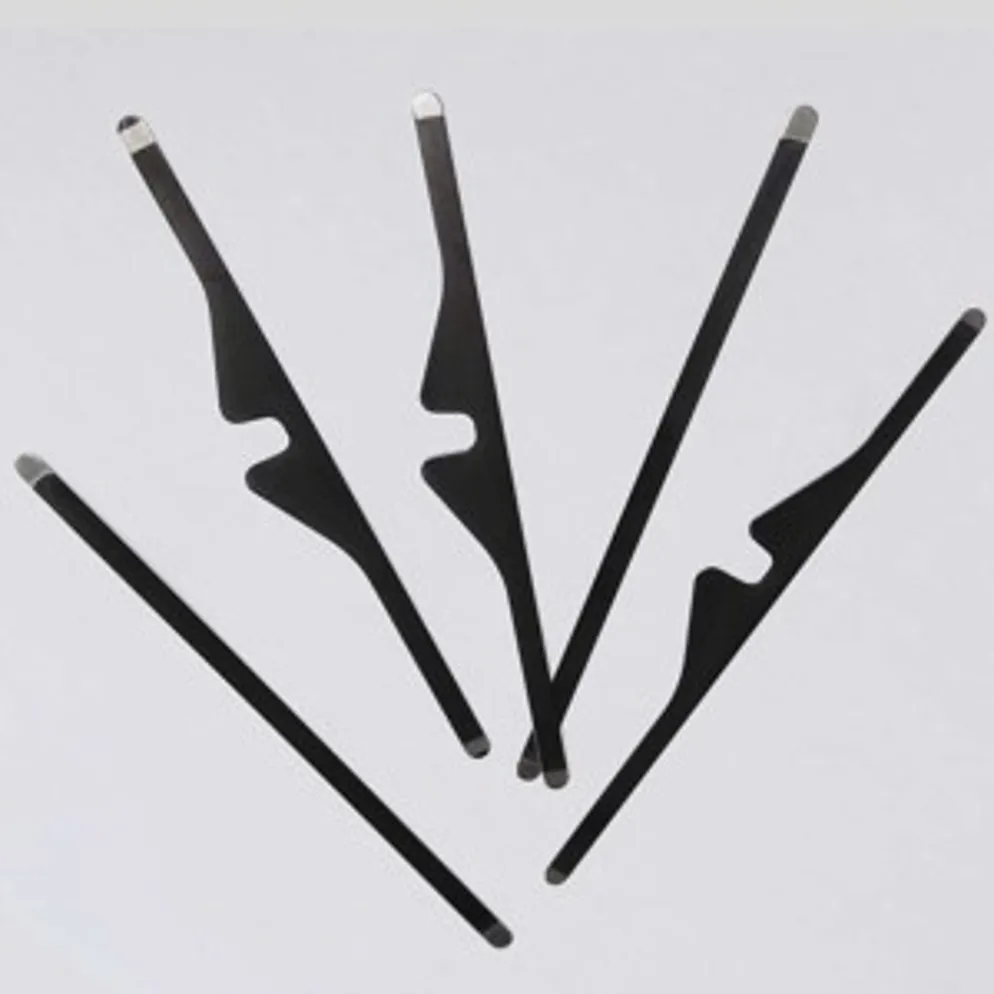

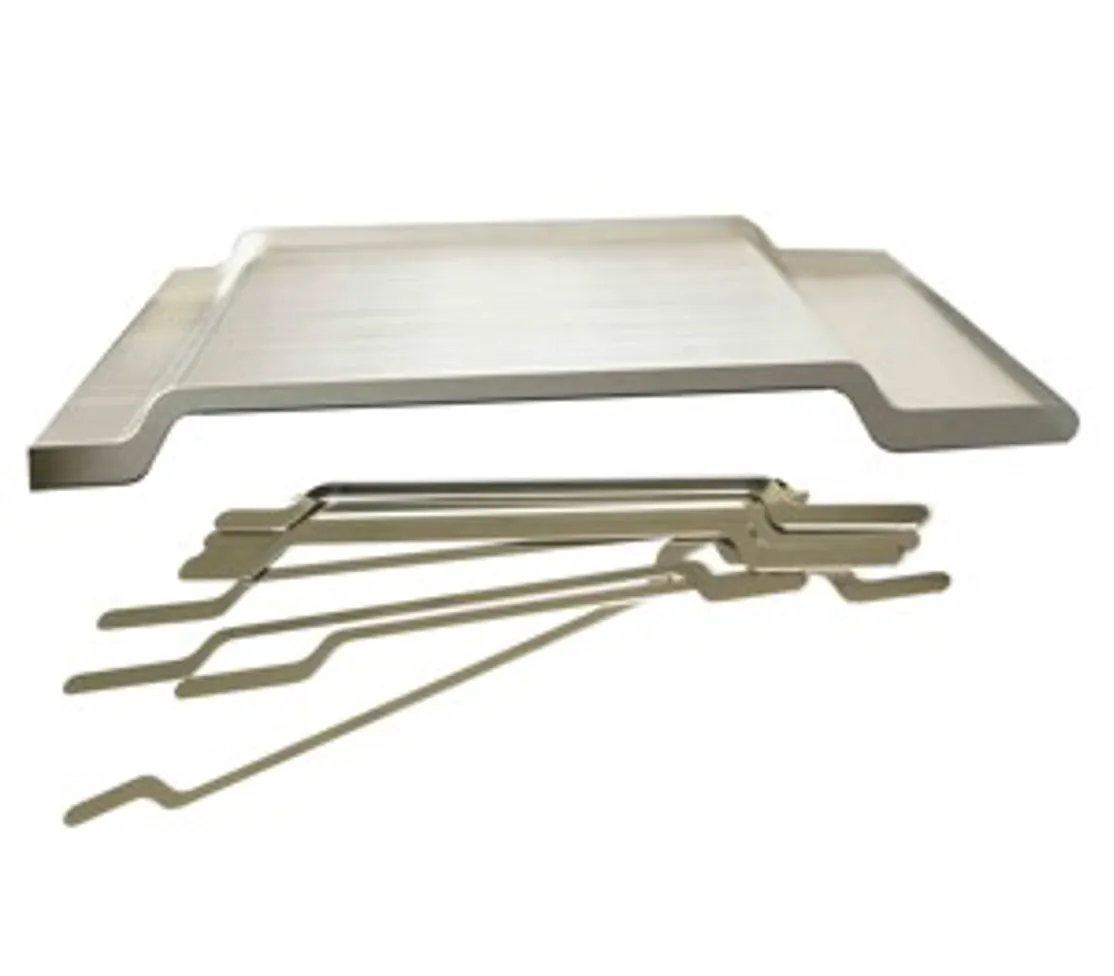

Profile Reed and Reed Dent	Strengthened Dent(DLC)	Double Reed Dent

MODEL	h1	l	a1	a2	h2	d	w/k
TSUDAKOMA ZA100/200 ZAX ZAX9100	111.5	105	18	12(16)	51	8	12°/5.5
	122	113	18	12	56	8	12°/5.5
	115	108	18	12	56	8	12°/5.5
	116.5	108	23	12	56	8	12°/5.5
TOYOTA JAT SERIES JAT7100	122	113	18	12(18)	56	8	12°/5.5
	117	105	23	16	56	8	12°/5.5
	116	105	23	12	56	8	12°/5.5
PICANOL PAT SERIES DELTA & OMNI PLUS SERIES OMNIPLUS 800	119	112	(18)20	10	57	8	6°/6.0
	108	101	18	10	57	8	6°/6.0
	110	104	20	10	54	8	12°/5.5
	100	94	18	10	54	8	6°/6.0
JETTIS INVESTA	110	105	18	12	51	8	12°/5.5
DORNIER	118	112	20	10	57	8	6°/6.0
	118	112	20	10	57	8	12°/5.5
	108	101	20	10	57	8	6°/6.0
NISSAN A SERIES	113	105	18	10	52.5	8	6°/6.0
	122	113	18(20)	12	56	8	12°/5.5
	113	105	18	12	52.5	8	12°/5.5
SOMET MYTHOS	108	101	20	10	57	8	6°/6.0
SOMET MYTHOS	108	101	20	10	57	8	12°/5.5
SULZER R SERIES	120	112	20	10	57	8	6°/6.0
	111	105	20	10	50	8	12°/5.5
	122	113	18	12	56	8	12°/5.5
DOUBLE AIR JET REEDS	122	113	20	10	56	8	12°/5.5
	118	112	20	10	57	8	6°/6.0
	110	104	18	10	57	8	6°/6.0
	100	94	18	10	54	8	6°/6.0
DOMESTIC AIT JET REEDS	SUITABLE FOR ALL TYPRS DOMESTIC AIR JET LOOMS
SPECIAL REEDS	ALSO CAN MAKE ACCORDING TO CUSTOMER REQUIREMENTS

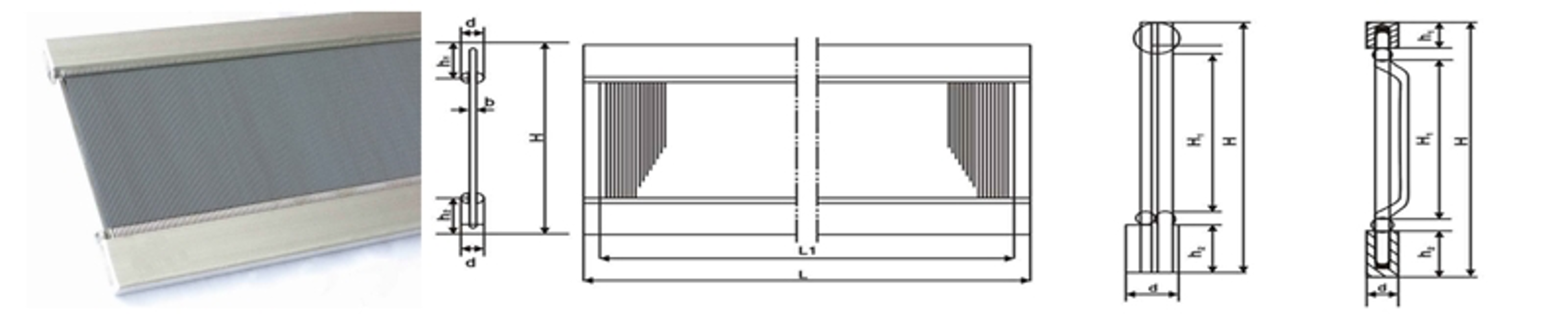

Reed for Projectile Looms and Rapier Looms (Flat Reed)

The flat reeds made by us has the advantage of good flatness and smoothness, even alignment and without any blur or scar. Our reed series cover projectile looms like Sulzer Ruti, rapier looms like Dornier, Ishikawa, Kingtex, Muller, Nuovo Pignone, Panter, Picanol, Saurer, Somet, Smit, Vamatex and etc. We make the stainless steel weaving reeds to fit exact needs of our customers.

To meet the working requirement of high speed rapier looms, the reed must control a precise straightness. Choosing unqualified steel weaving reed may affect the wearout of relating spare parts, the overall performance and endurance of the loom, and the quality of fabric especially flatness and plumpness. Equipped with whole set of automatic straightness adjusting machine and detecting instruments, we implement strict control on the weaving reed straightness.

Reed for Projectile Looms and Rapier Looms (Flat Reed)

Name	Code	Dimension(mm)
No. of Reed		20~240/10cm
Total Width	L	≤6000
Working Width	L1	As per customer demand
Total Height	H	90~180
Width of Dents	b	2.7, 3.0, 4.0
Height of Top Channel	h1	10, 12
Height of Bottom Channel	h2	18, 20, 26
Thickness of Channel	d	6, 8

Reed for Water Jet Looms

We supply water jet loom reeds specially for high-end, high density, light weight fabrics, with an annual production of 100,000 meters. Product series cover Nissan, Tsudakoma, and Chinese brand water jet looms. Various specifications are available including tin-solder structure, aluminum channel resin structure, U-channel structure, space adhesive junction type, as well as customized specifications according to customer.

The reeds manufactured by us embody the features of light weight, good elasticity, easy maintenance, and low energy consumption. Our aim is to help customers increase weaving efficiency, improve fabric quality, and save the cost.

Water Jet Loom Reeds

Name	Code	Dimension(mm)
No. of Reed		20~260/10cm
Total Width	L	≤6000
Working Width	L1	As per customer demand
Total Height	H	90~180
Width of Dents	b	2.2, 2.5, 2.7, 4.0
Height of Top Channel	h1	12, 18
Height of Bottom Channel	h2	18

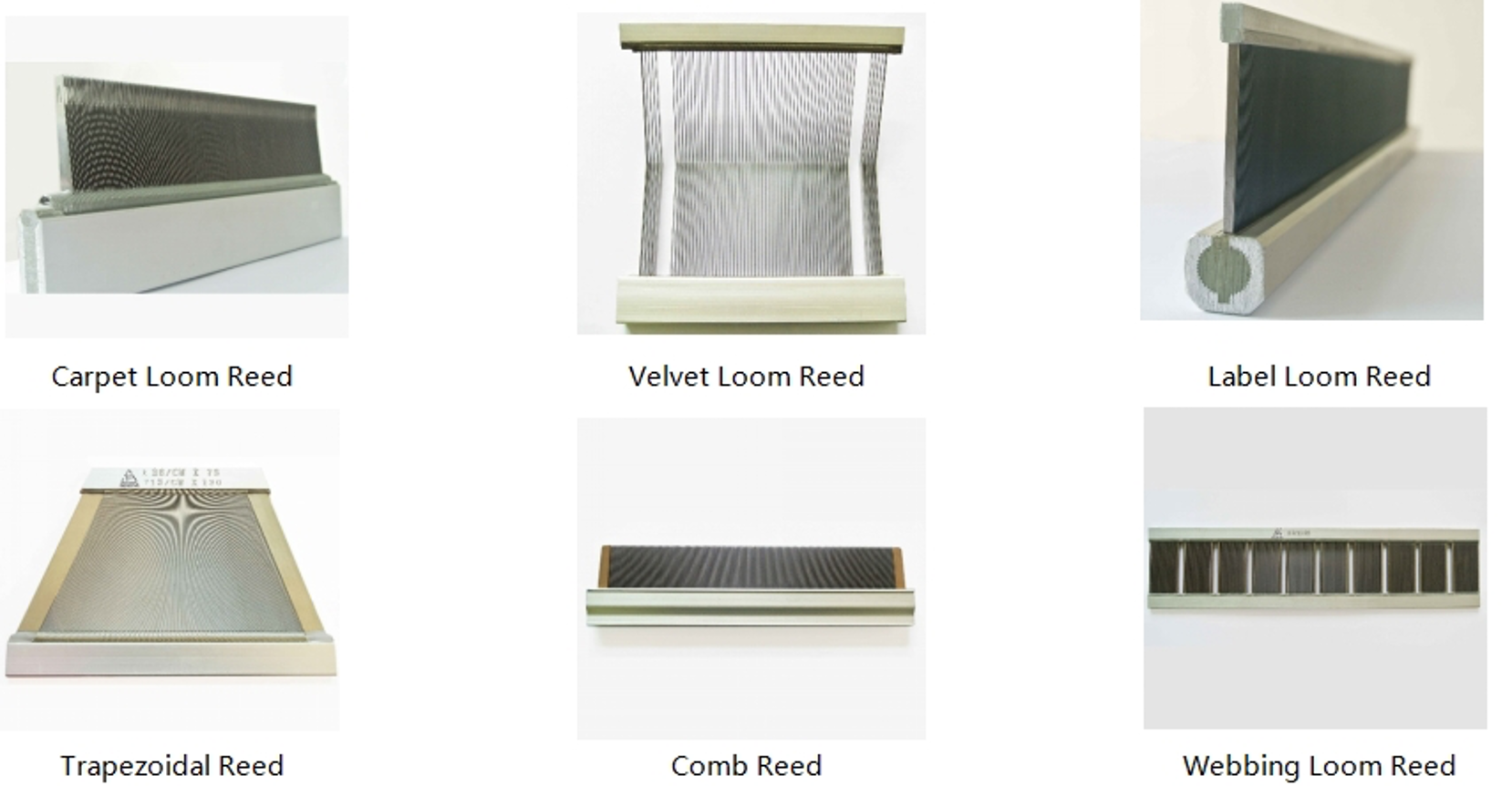

Reed for Other Weaving Purposes
Except for shuttle looms and shuttleless looms mentioned above, we are also making reeds for other weaving purposes, like carpet weaving, velvet weaving, label weaving, tape and webbing weaving, trapezoidal reeds, comb reed, metal mesh reed, reed for industrial use and etc. We can offer carpet weaving reed used on Van de Wiele and Schonherr looms, with a world advanced level of strength, abrasion resistance, flatness and evenness.

Learn More About Weaving Reeds:

1. Causes of Profile Reed Wearout and Measures for Extending Its Endurance
2. A New Type of Weaving Reed
3. Key Points for Use and Maintenance of Air Jet Loom Reeds
4. Norms and Quality Test of Weaving Reeds
5. Research on Failure Mechanism of Weaving Reeds
6. Use and Maintenance of High-Density Weaving Reed
