Our 3D weaving machine handles advanced materials like carbon fiber, Kevlar, fiberglass, ceramic fiber and basalt fiber, creating complex structures such as interlayer orthogonal and angle interlock multilayer fabrics used in high-performance composites.
The process minimizes fiber twisting and turning during weaving, preserving the mechanical properties these expensive, high-performance fibers depend on, while a compact equipment footprint makes handling, installation, commissioning and maintenance genuinely convenient.
Every related technology behind the machine has been validated in production, giving mills a mature, reliable platform rather than an unproven prototype.
Key Highlights
• Let-off: Customized creel, independent warp yarn control
• Heald lifting: Multi-eye harness threads for carbon, glass fiber
• Take-up: Precise density control, fabric stays unbent
• Software: Touchscreen with copyrighted fabric design software

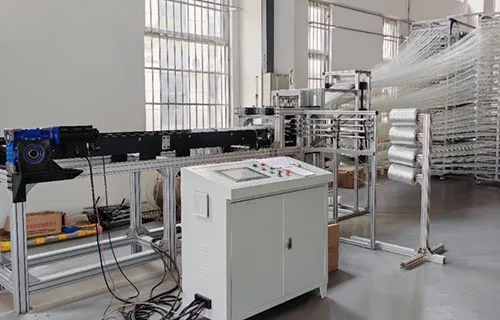

3D Weaving Machine for Composite Materials
A special weft feeder works with dedicated main and auxiliary nozzles tuned for fiberglass, delivering reliable insertion while reducing the abrasion fiberglass yarn causes to nozzles and guides, exte...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
3D Weaving Machine for Composite Materials
Project Indicators | Performance Requirements |
Fabric Width | customized |
Warp Density | 2~8wefts/cm |
Weft Density | 2~6wefts/cm |
Fiber Type | Carbon Fiber 1~24k / Other Coarse Fibers |
Fabric Length | customized |
Fabric Structure | Interlayer Orthogonal, Angle Interlock, and Various Other Structures. |
Number of Heddles | Up to 20 |
Number of Layers | multilayer |
Weft Insertion Efficiency | ＞20 wefts/min |
Equipment Dimensions | Length Approx. 13000mm / Width 4500mm / Height 2500mm |
Creel | customized |
Power Supply | 220V，16A/220V，10A |
Air Pressure | 0.3~0.8Mpa |
Contact our technical team to discuss your specific requirements and get a customized quote.
