Tension sensors and load cells sit on the warp tension beam, measuring the pull of the yarn and converting it into an electrical signal that lets the let-off motor keep tension constant from a full beam to an empty one. Proximity switches work alongside them, detecting position and rotation to control motor timing during weaving.
We offer a wide range of electronic parts for textile weaving machines, including approach switches, membrane switches, proximity switches, push buttons, load sensors, tension sensors and load cells, all built for premium quality and long endurance.
We supply switches and sensors for rapier, water jet and air jet looms, including original parts for domestic weaving machine manufacturers, with customization available to sample or drawing.
Key Highlights
Function: Tension feedback controls the let-off motor
Scope of supply: Approach, membrane, proximity switches, push buttons, load sensors, tension sensors, load cells
Compatibility: Rapier, water jet, air jet looms
Switch and Sensor
_NA-T-0.3(BJ-079-2).webp)
_NA-T-51(BJ-080-2).webp)
Switch and Sensor
| SINOTEX NO. | CODE NO. | PRODUCT NAME |
| SN00356-CC | F293.971.02C F294.873.50A | DORNIER SENSOR |
| SN00209-ZY | F295.B7.11 | HEALD LEVEL SENSOR |
| SN00207-ZY | G295.137.18B | OIL PRESSURE SENSOR |
| SN00075-RH | BE55989 BE89392 BE152501 | PICANOL GTM PROXIMITY SWITCH |
| SN00076-RH | BE151763 BE152624 | Picanol Leno Selvedge Sensor |
| SN00077-RH | BE305801 | PICANOL LOAD CELL |
| SN00198-ZY | BE151784 BE211762 BE206728 | PICANOL OIL TEMPERATURE SENSOR |
| SN00078-RH | BE306368 | PICANOL OMNI PLUS SENSOR |

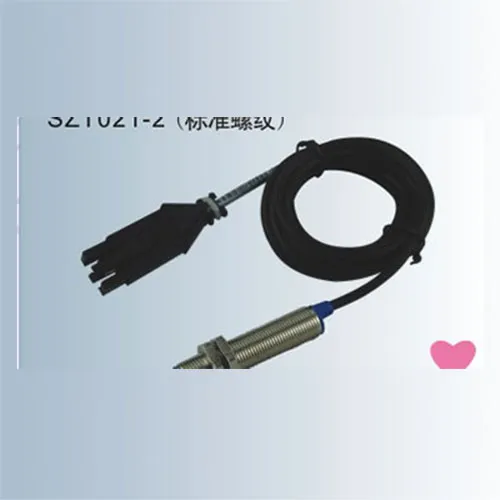

| SN00357-CC | BE303968 BE306441 BA219538 | PICANOL OMNIPLUS PROXIMITY SWITCH |
| SN00079-RH | BE239133 BE238410 | PICANOL OPTIMAX SENSOR |

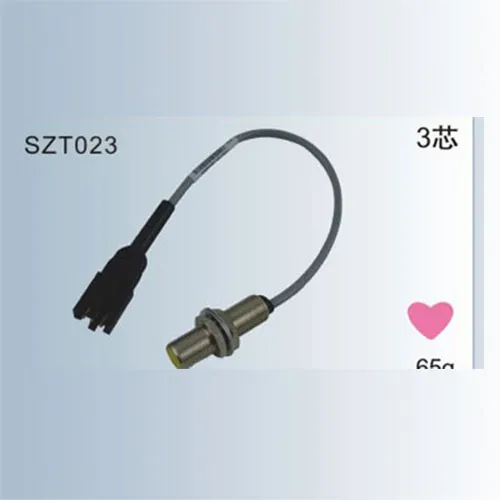

| SN00358-CC | B160907 | PICANOL PROXIMITY SWITCH |
| SN00080-RH | BA209609 BE303468 | PICANOL PROXIMITY SWITCH |
| SN00081-RH | BE80328 BE80124 BE80128 BE90270 BE80329 | PICANOL Proximity Switch |
| SN00082-RH | BE82043 BE89270 BE83081 BE83082 | Picanol Proximity Switch |
| SN00083-RH | BE89392 BE22280 BE89269 BE80830 BE152501 BE208723 | Picanol Proximity Switch |

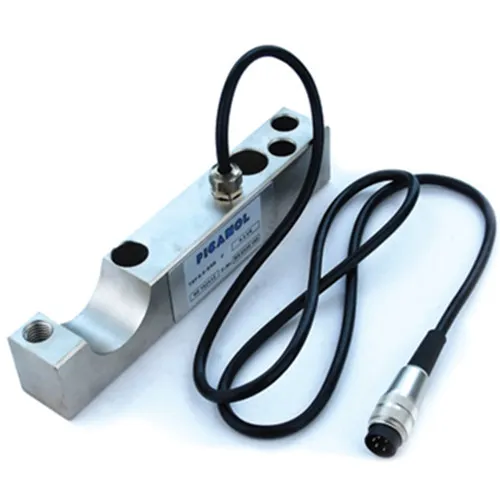

| SN00085-RH | BE152412 | PICANOL WARP TENSION SENSOR |
| SN00086-RH | BE154229 BE151984 | PICANOL WARP TENSION SENSOR |
| SN00087-RH | PSO614005000 | SMIT FAST LOAD SENSOR |

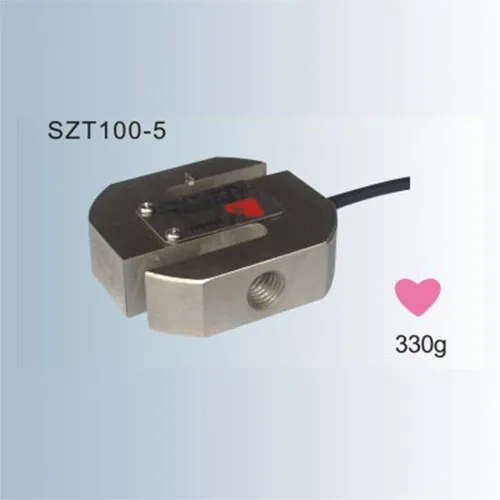

| SN00359-CC | PSO614001000 | SMIT FAST-SR TENSION SENSOR |
| SN00088-RH | JCE131A | SOMET ALFA TENSION SENSOR |
| SN00089-RH | A2EM40A | SOMET MYTHOS Load Sensor |
| SN00199-ZY | NA-T-0.3(BJ-079-1) NA-T-0.3(BJ-079-2) | SOMET OIL SWITCH |
| SN00200-ZY | NA-T-51(BJ-080-1) NA-T-51(BJ-080-2) | SOMET OIL SWITCH |
| SN00201-ZY | M8x1 EA-106A1E1 | SOMET PROXIMITY SENSOR |
| SN00202-ZY | M12x1 EA-114A1E1 | SOMET PROXIMITY SENSOR |
| SN00203-ZY | M17x17 EA-120A1F1 | SOMET PROXIMITY SENSOR |
| SN00204-ZY | M18x1 EA-111A1E1 | SOMET PROXIMITY SENSOR |
| SN00205-ZY | M18x18 EA-121D1F1 | SOMET PROXIMITY SENSOR |

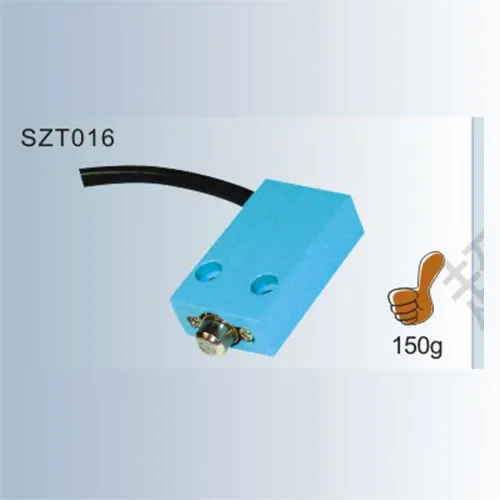

| SN00360-CC | A1EZ69A A1FZ36A | SOMET SM92 SM93 MICRO MOTION SWITCH |
| SN00090-RH | CEX25A 7-CEX250A | SOMET SM92 SM93 SWITCH |
| SN00091-RH | A2E557A A2E558A A2E559A A2E560A | SOMET SM93 Proximity Switch |
| SN00092-RH | JCE117A | SOMET THEAMA11 SUPER EXCEL |
| SN00093-RH | A1EZ66A A1EZ68A A1EZ67A A1EZE9A | Somet Thema Proximity Swicth |
| SN00094-RH | A1EP34A JCE116A JCE116B | SOMET THEMA TENSION SENSOR |

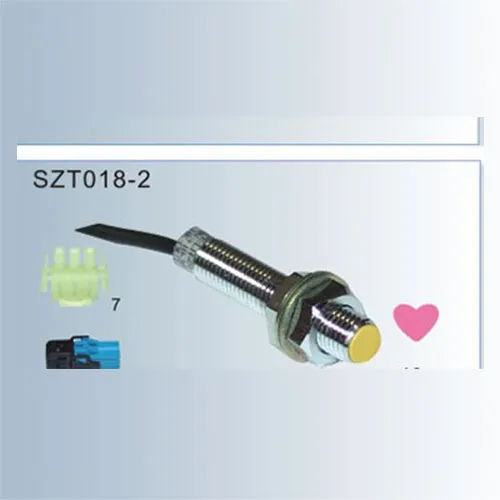

| SN00361-CC | A1EZ66B | SOMET THEMA11 THEMA11E PROXIMITY SWITCH |
| SN00095-RH | JCE114E | SOMET THEMA11E Load Sensor |

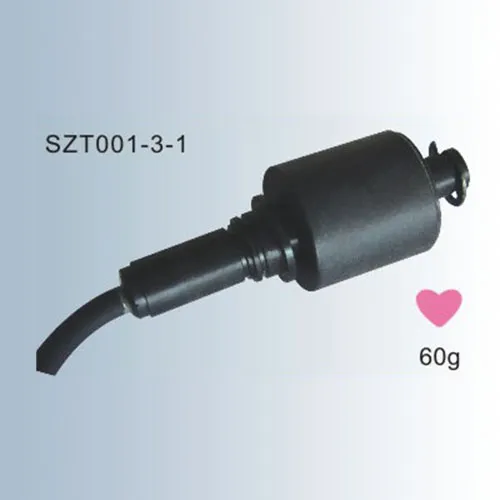

| SN00362-CC | F295.137.06 | STAUBLI DOBBY OIL SWITCH |

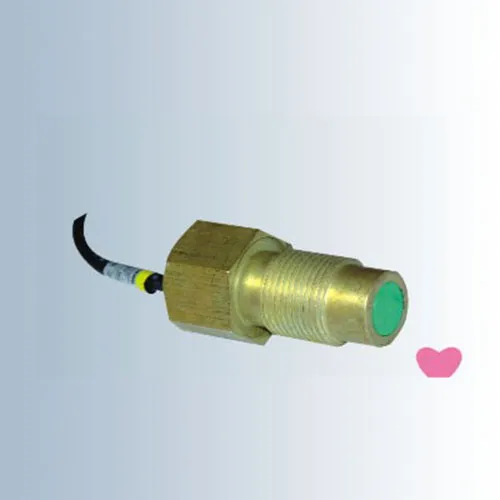

| SN00363-CC | F294.507.02 F294.507.03 F294.507.04 F294.507.05 F294.507.08 F294.507.09 F294.507.11 F294.137.11 F294.507.13 F294.507.09E F294.507.08E | STAUBLI DOBBY SENSOR |

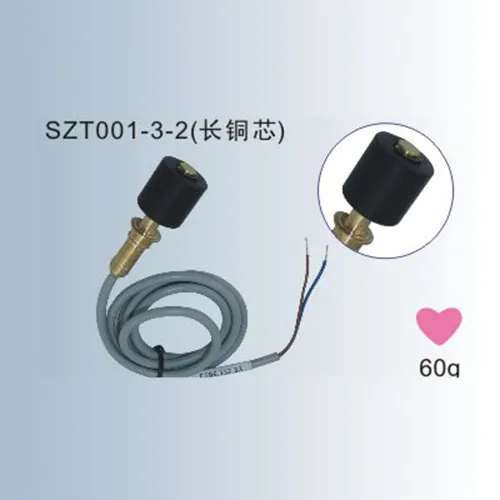

| SN00364-CC | 75211-0007 F07.9G5YA1 F295.137.23 F295.137.23C F295.137.18 F295.137.28 F295.137.30 | STAUBLI DOBBY TOYOTA 610 OIL SWITCH |
| SN00096-RH | F294.507.09 F294.507.08 F294.507.05 F294.507.11 | Staubli Dobby Transducer |
| SN00097-RH | F292.464.18 | Staubli Electronic Dobby |
| SN00098-RH | 911.329.062 911.321.011 | Sulzer Flight Trigger |
| SN00099-RH | 145015001 911.502.330 | Sulzer Let off control panel |
| SN00100-RH | 911.321.058 | SULZER P7100 PU flight trigger |
| SN00101-RH | 911.180.593 | SULZER SENSOR |
| SN00102-RH | 927.009.861 | Sulzer Shutdown Transducer |

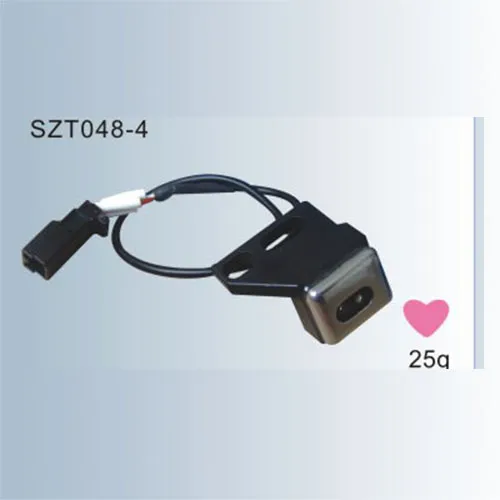

| SN00365-CC | J9801-00010-0B | TOYOTA JAT600 TURN SENSOR |

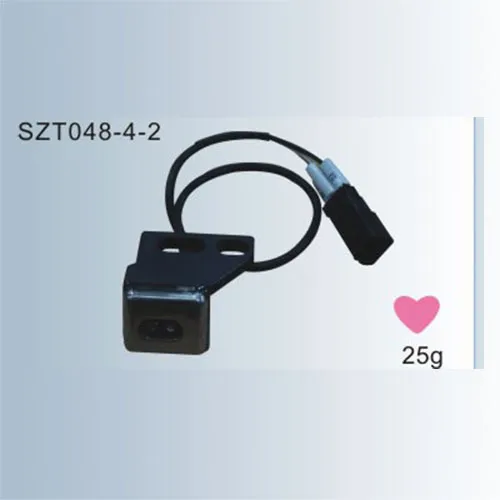

| SN00366-CC | TOYOTA JAT600 WEFT FEEDER TURN SENSOR | |
| SN00103-RH | 0812608 | TOYOTA WATER JET SENSOR |

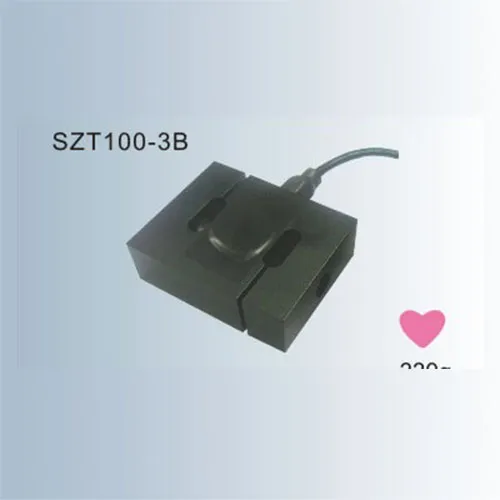

| SN00367-CC | 627331BB | TSUDAKOMA AIR JET SENSOR |
| SN00104-RH | 627966 | TUSDAKOMA ZA205 ZAX209 ZAX SENSOR |
| SN00105-RH | 2589012 | VAMATEX C401 P401 Proximity Switch |
| SN00106-RH | 9850680 | VAMATEX K88 |

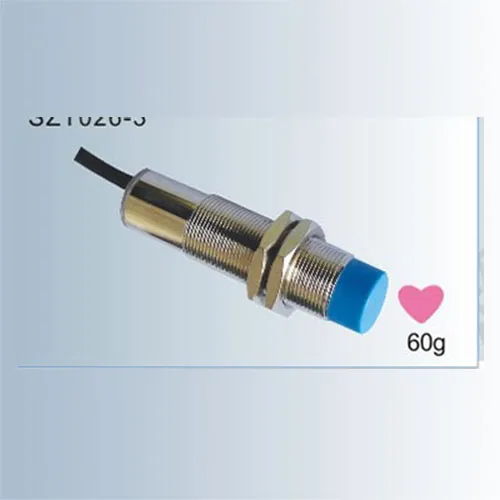

| SN00368-CC | 9820935 | VAMATEX K88 DISPLACEMENT TRANSDUCER |
| SN00107-RH | 9820990 | VAMATEX K88 SENSOR |
| SN00108-RH | 9820264 9820992 | VAMATEX K88 TENSION SENSOR |

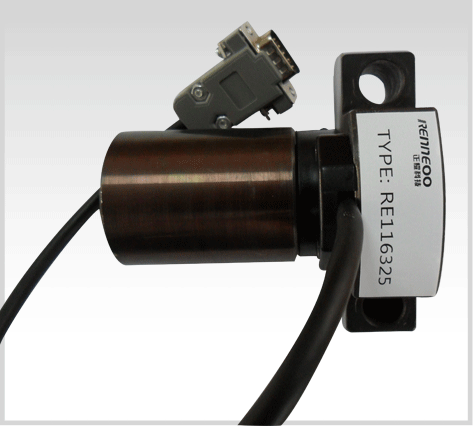

| SN00206-ZY | VAMATEX LEONARDO TENSION SENSOR | |
| SN00210-ZY | 0862003 | VAMATEX PROXIMITY SENSOR |
| SN00109-RH | 9820772 9851169 | VAMATEX LEONARDO K88 WEFT SELECTING SENSOR |
Contact our technical team to discuss your specific requirements and get a customized quote.
