A tuck-in device folds the cut end of each weft pick back into the next shed, weaving it into the fabric with the following pick instead of leaving a loose fringe. Cam-driven crochet hook, presser foot and scissors shafts press, shear and hook the yarn end, doubling weft density at the selvedge for a clean, tucked edge.
We supply an extensive range of tuck-in devices for rapier and air-jet looms, water jet loom, suitable for major brands including Somet, Vamatex, Smit, Dornier Sulzer and Chinese domestic models. We provide solutions for both mechanical tuck-in and air tuckers.
Designed using premium quality components to industry norms, our tuck-in devices are known for easy installation, high accuracy and long durability, with spare parts also available.
Key Highlights
· Performance: Low power consumption, low noise and vibration
· Solutions for various brands: Somet, Vamatex, Smit, Dornier, Sulzer, Picanol and etc
· Solution: both mechanical tuckin and air tucker
· Durability: Less maintenance, easy operation, long service life

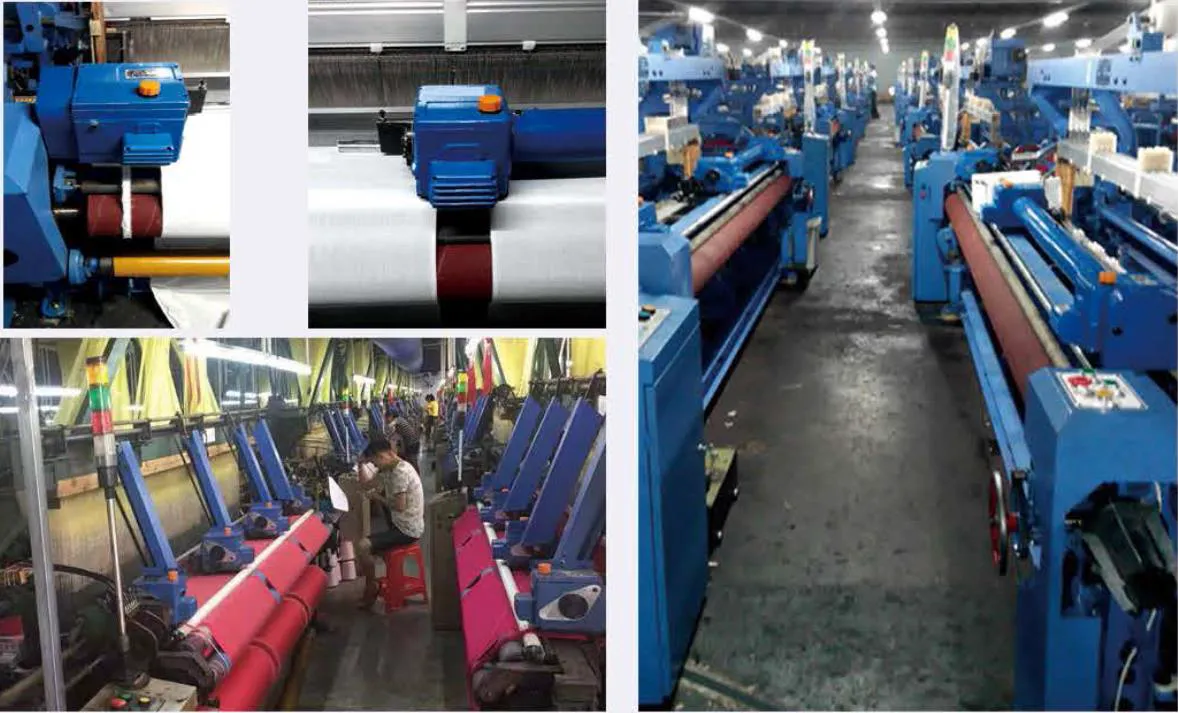

Compatible models: Chinese domestic made low speed rapier looms and Indian made low speed looms, including GA747, GA788, GA736 series.
Maximum running speed: 250rpm
Options: left + right; left + middle + right
Fabric range: cotton, wool, jute, filament, steel wire, fiberglass and etc
Installation: belt drive or gear drive, based on loom models
Tuck in zone: our standard is 11~20mm, also can customize as per customer request

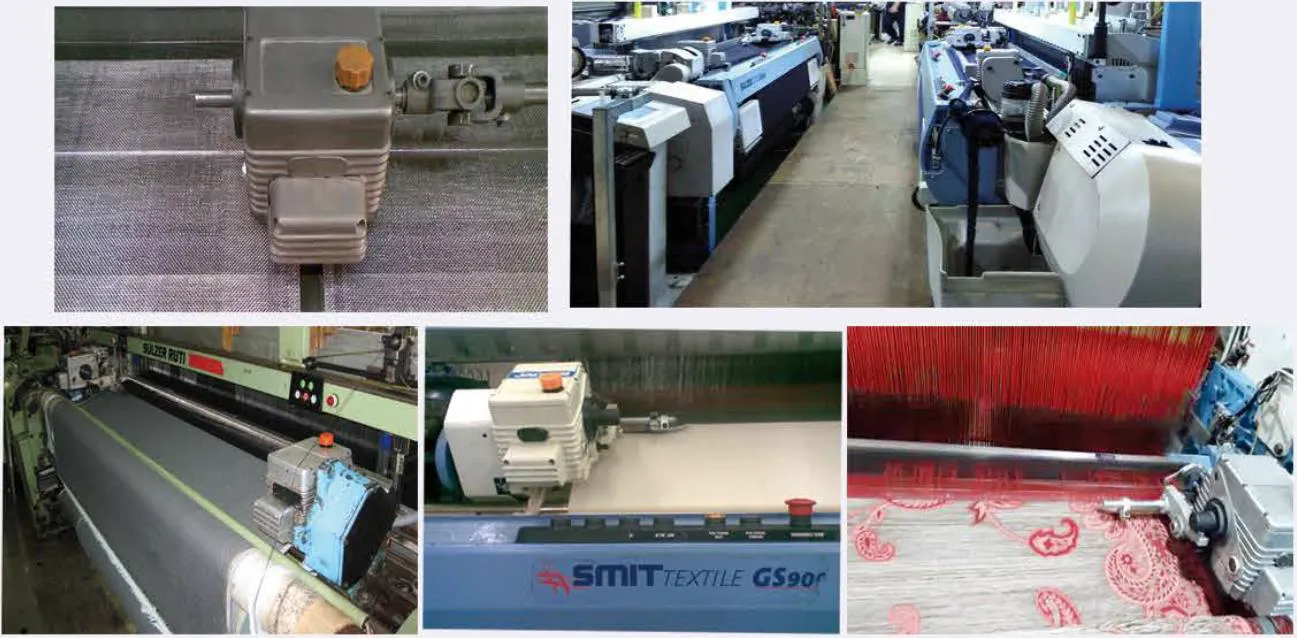

Compatible models: European brand and Chinese brand rapier looms, including Vamatex, Somet, Smit, Picanol, Itema, Panter, Rifa, Titan, Wanli, QianJiahui, Lenado, Youjia, Kingtex etc.
Maximum running speed: 450rpm
Options: left + right; left + middle + right
Fabric range: cotton, wool, jute, filament, steel wire, fiberglass and etc
Installation: belt drive or gear drive, based on loom models
Tuck in zone: our standard is 11~20mm, also can customize as per customer request

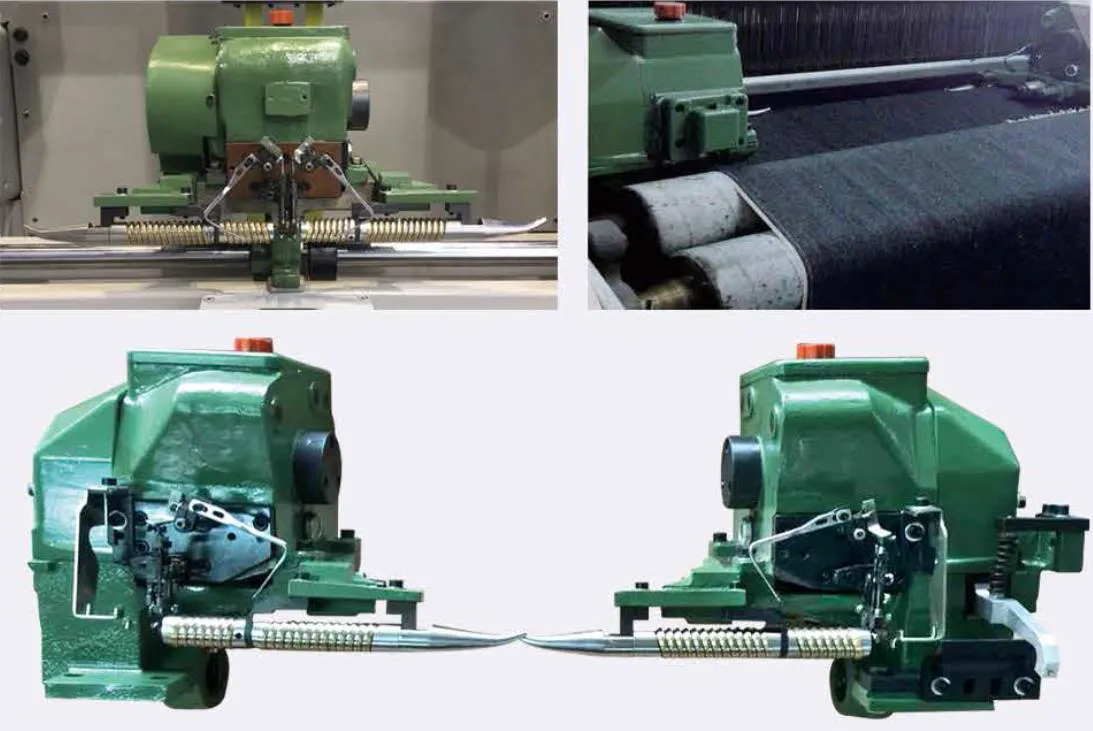

Compatible models: European brand and Chinese brand rapier looms, including Vamatex, Somet, Smit, Picanol, Itema, Panter, Rifa, Titan, Wanli, QianJiahui, Lenado, Youjia, Kingtex etc.
Maximum running speed: 600rpm
Options: left + right; left + middle + right
Fabric range: cotton, wool, jute, filament, and etc
Installation: belt drive or gear drive, based on loom models
Tuck in zone: our standard is 11~20mm, also can customize as per customer request

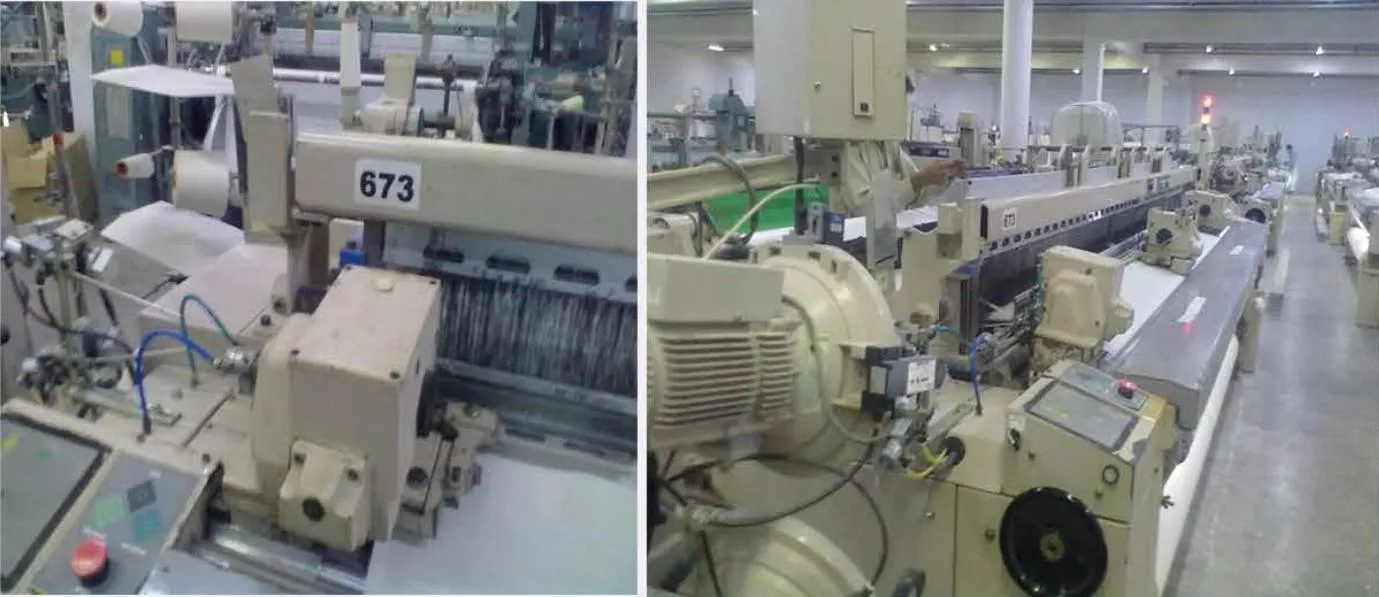

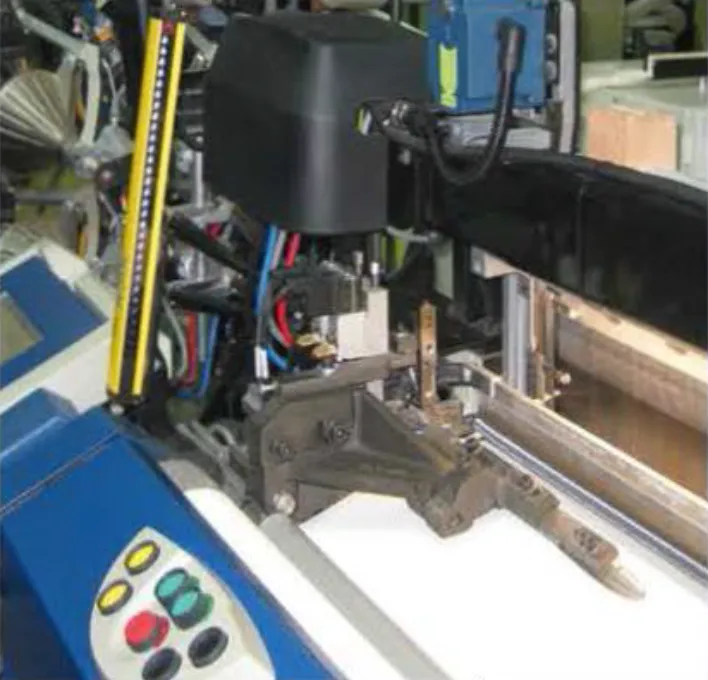

Compatible models: Europeanbrand and Chinese brand air-jet looms, including Tsudakoma, Toyota, Picanol, Rifa, Titan, Qian Jiahui, Redflagand etc.
Maximum running speed: 700rpm
Options: left + right; left + middle + right
Fabric range: cotton, wool, jute, filament, and etc
Installation: belt drive or gear drive, based on loom models
Tuck in zone: our standard is 12~20mm, also can customize as per customer request

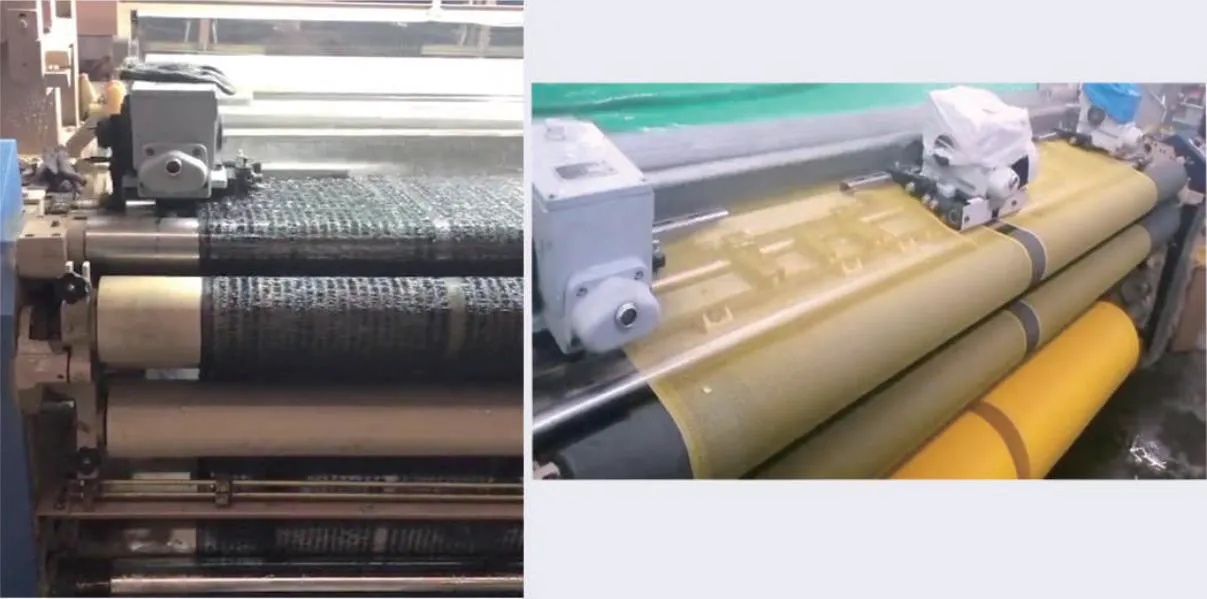

Compatible models: European brand and Chinese brand water-jetlooms, including Tsudakoma, Toyota, Picanol, Rifa, QianJiahui, Haijia, Yinchunand etc.
Maximum running speed: 700rpm
Options: left + right; left + middle + right
Fabric range: filament and etc
Installation: belt drive or gear drive, based on loom models
Tuck in zone: our standard is 12~20mm, also can customize as per customer request

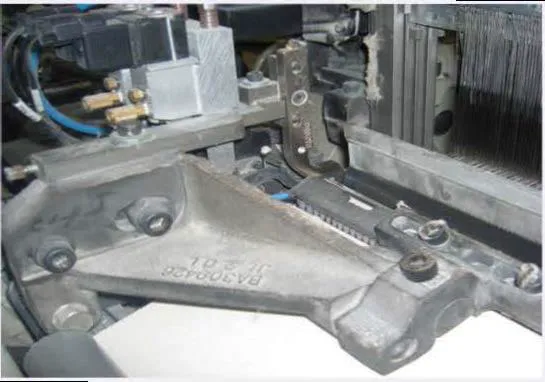

Compatible models: European brand and Chinese brand rapier looms, including Vamatex, Somet, Smit, Picanol, Itema, Panter, Rifa, Titan, Wanli, QianJiahui, Lenado, Youjia, Kingtex etc.
Maximum running speed: 1000rpm
Options: left + right; left + middle + right
Fabric range: mainly cotton fabric
Tuck in zone: our standard is 10~15mm, also can customize as per customer request
Compatible models: European brand and Chinese brand air-jet looms, including Tsudakoma, Toyota, Picanol, Rifa, Titan, Qian Jiahui, Redflagand etc.
Maximum running speed: 1000rpm
Options: left + right; left + middle + right
Fabric range: mainly cotton fabric
Tuck in zone: our standard is 10~15mm, also can customize as per customer request
 |  |  |  |
 |  |  |  |
 |  |  |

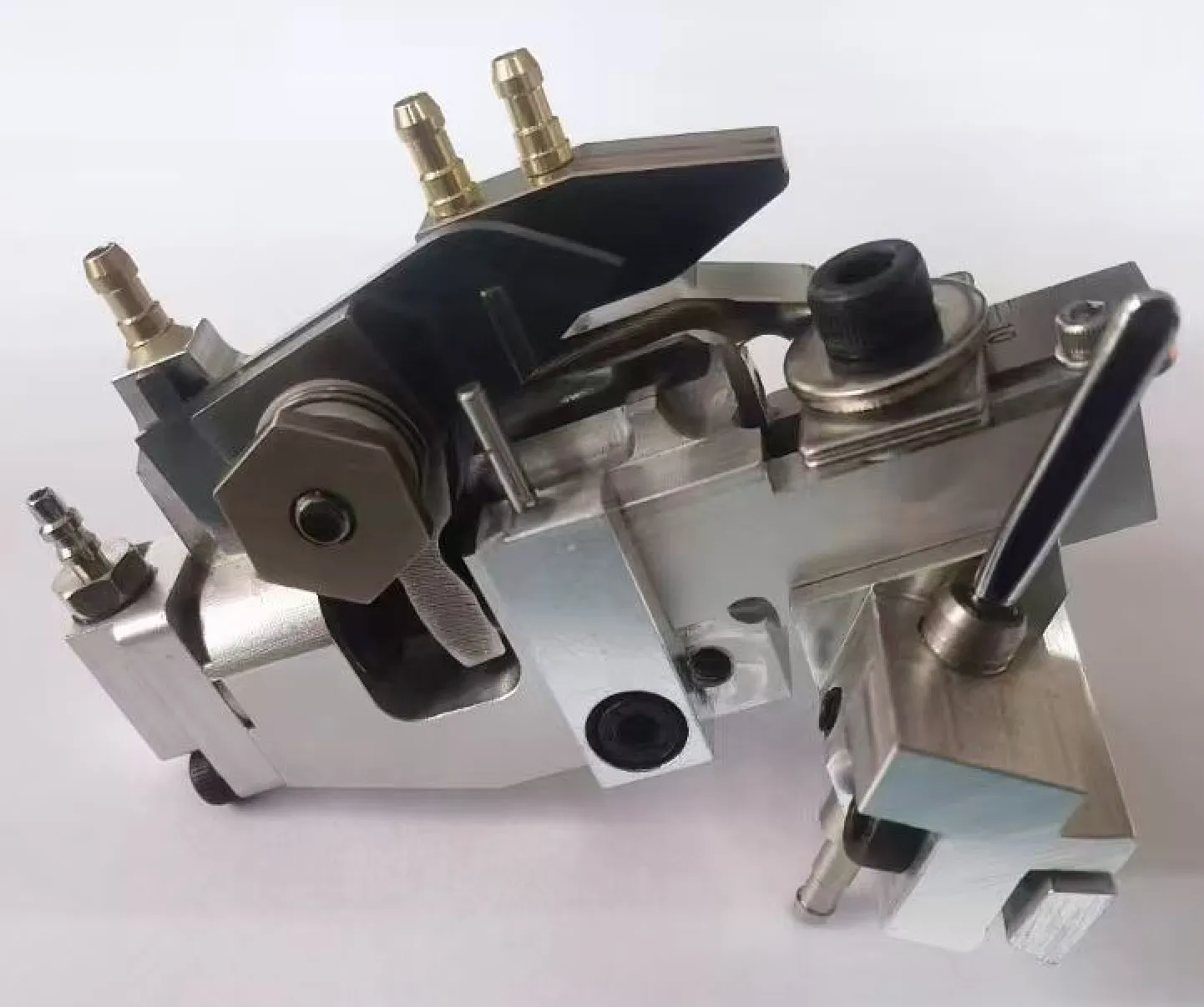

Tuck In Device

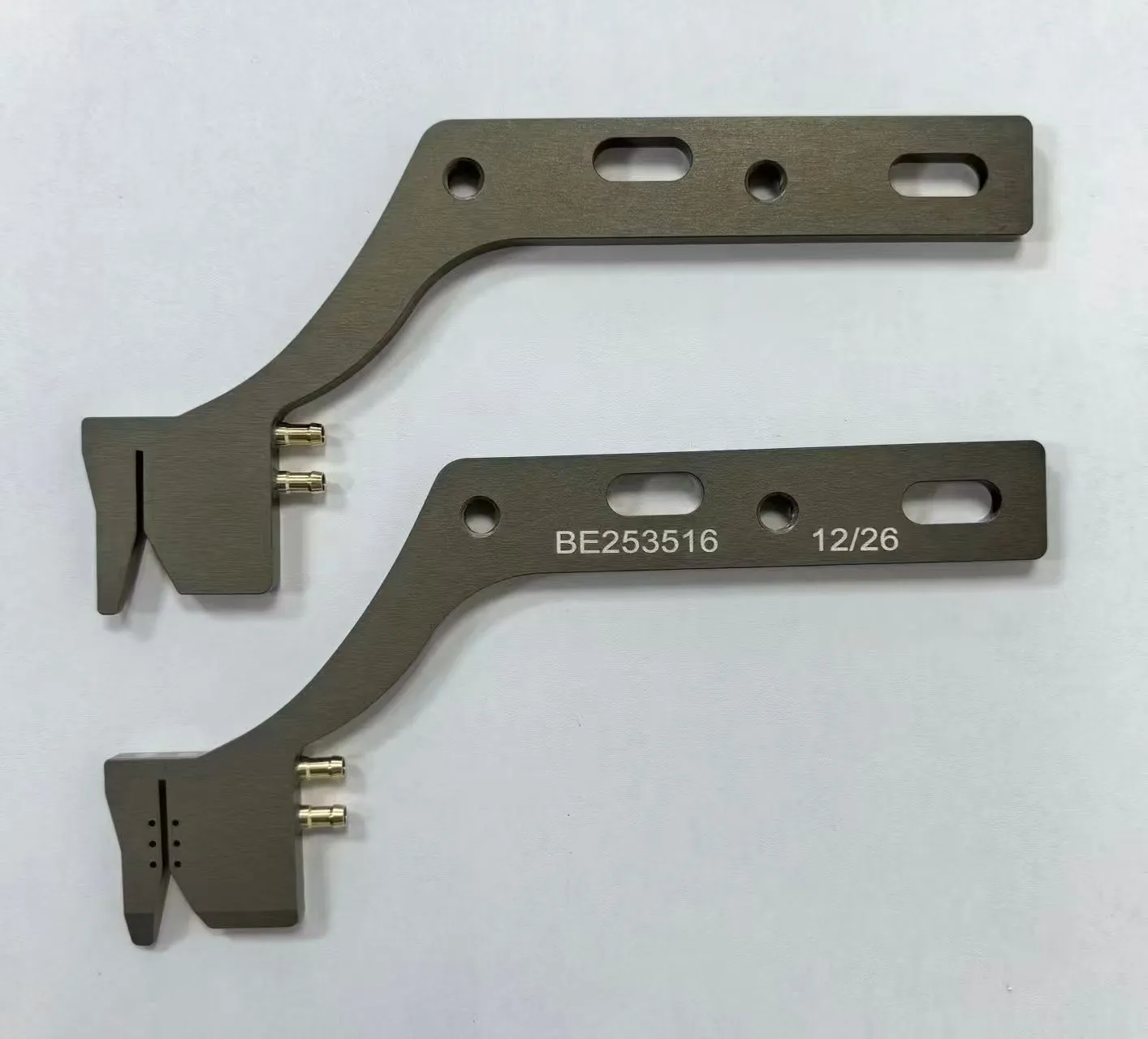

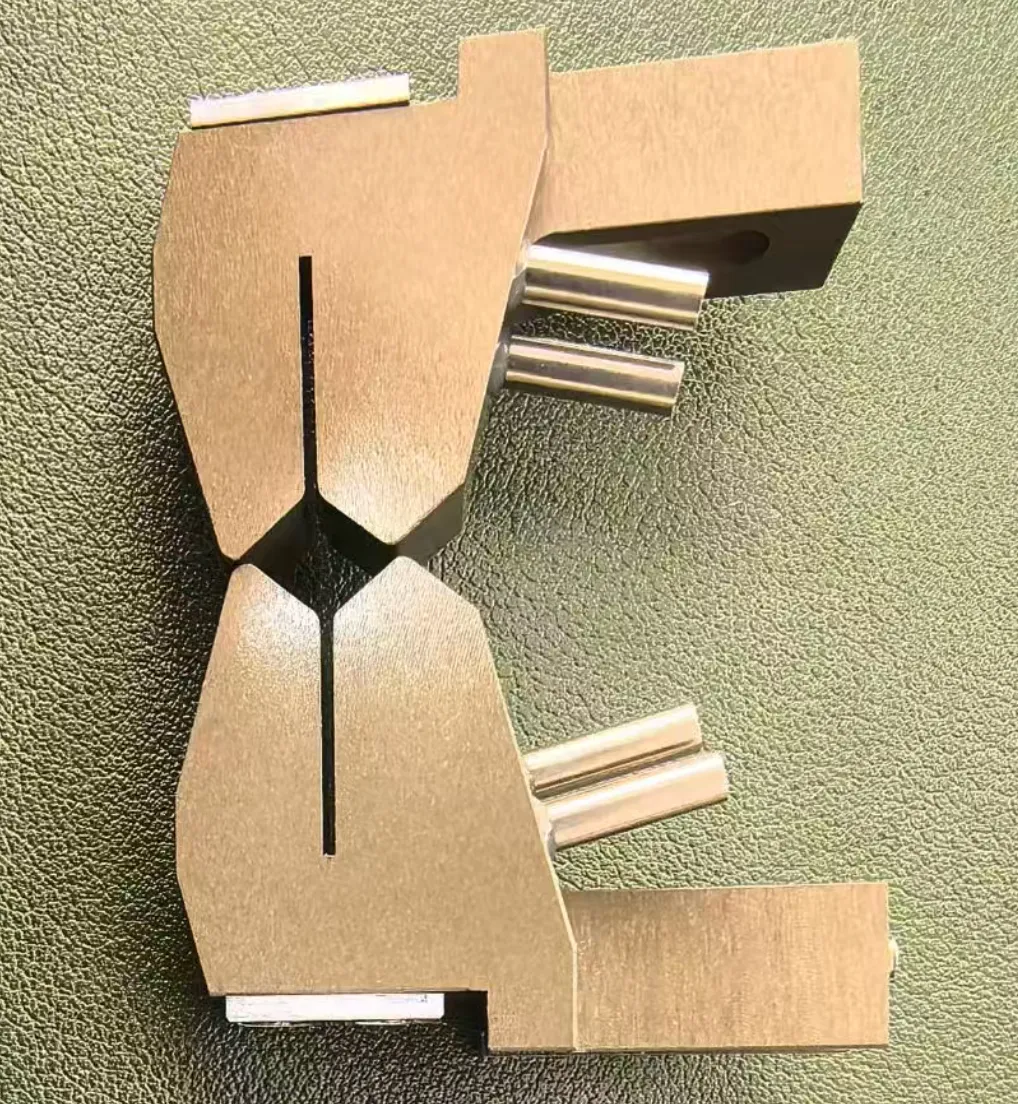

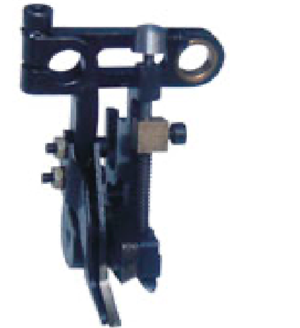

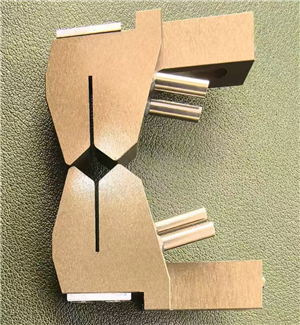

Tuck in Device Accessories

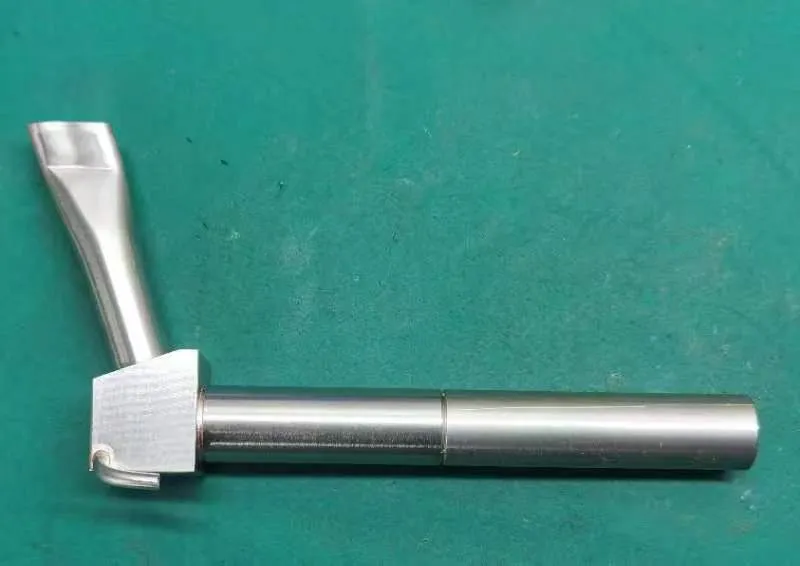

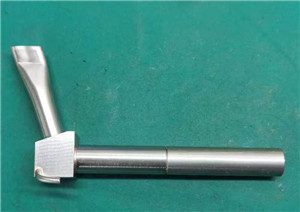

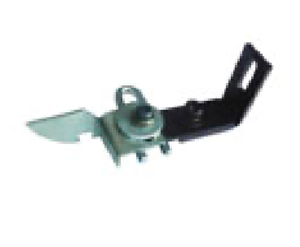

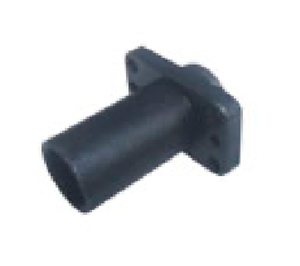

Tuck in Device Accessories

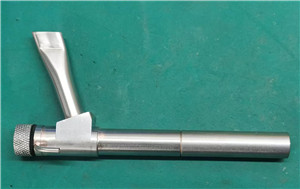

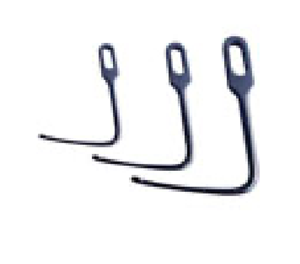

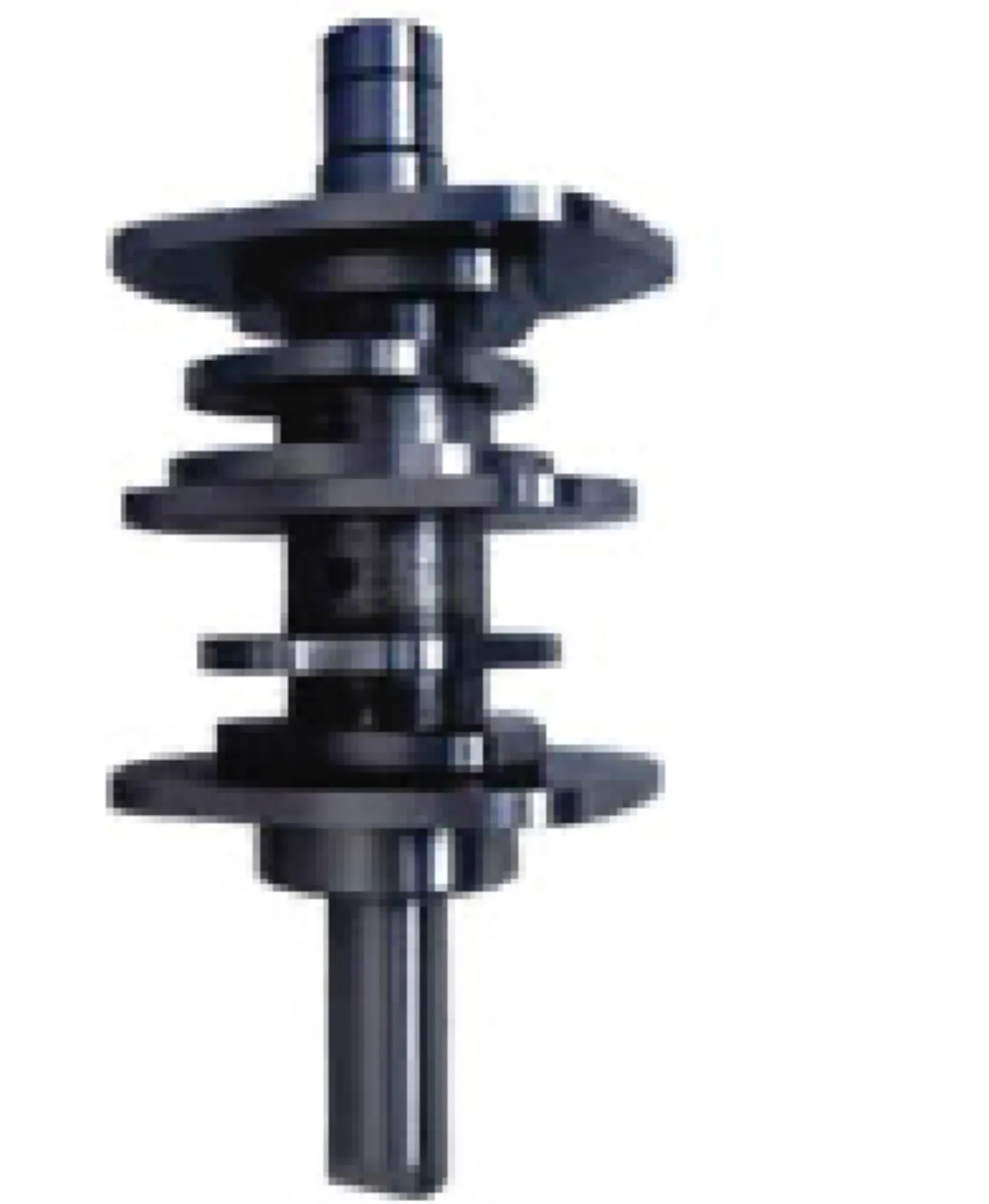

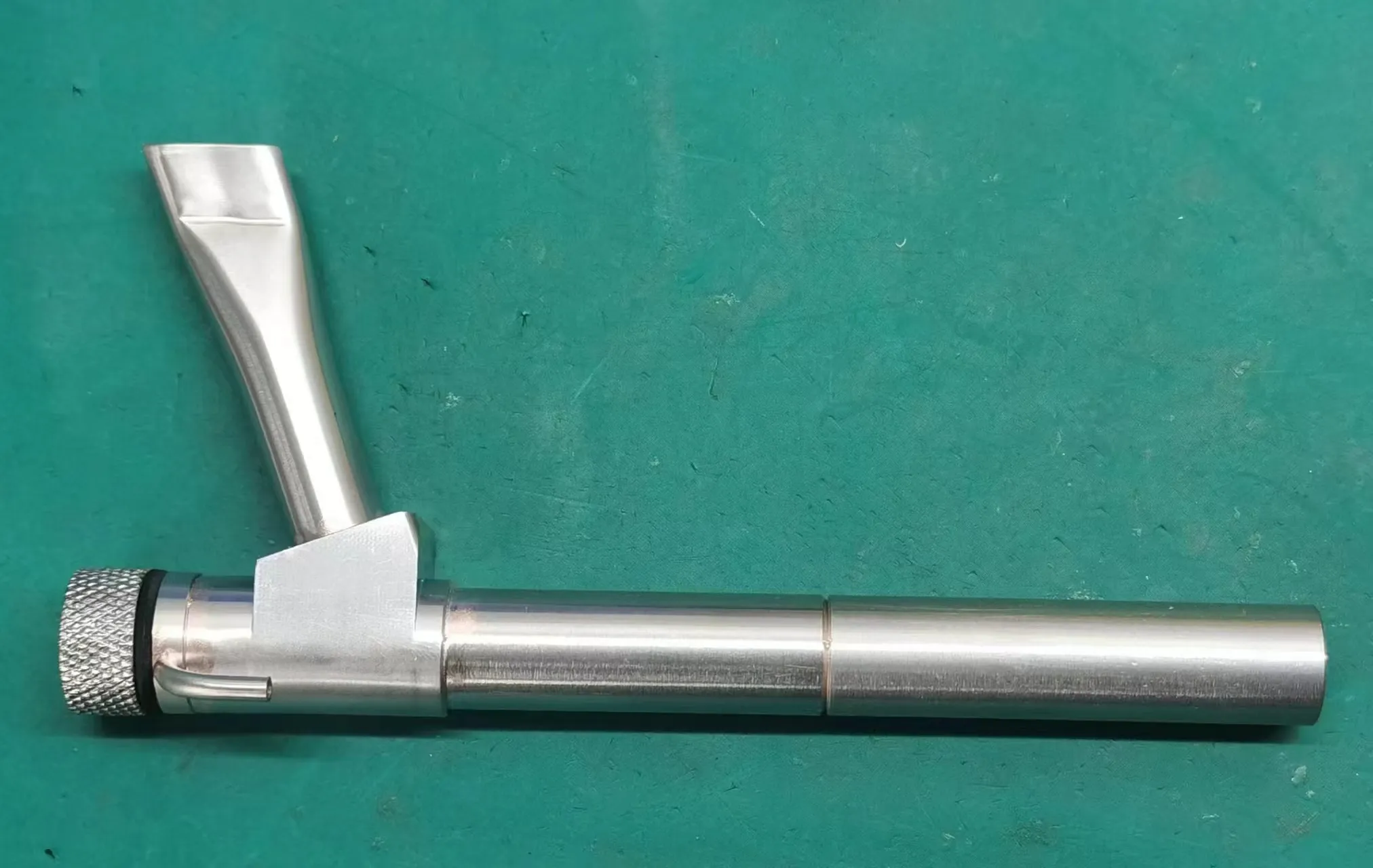

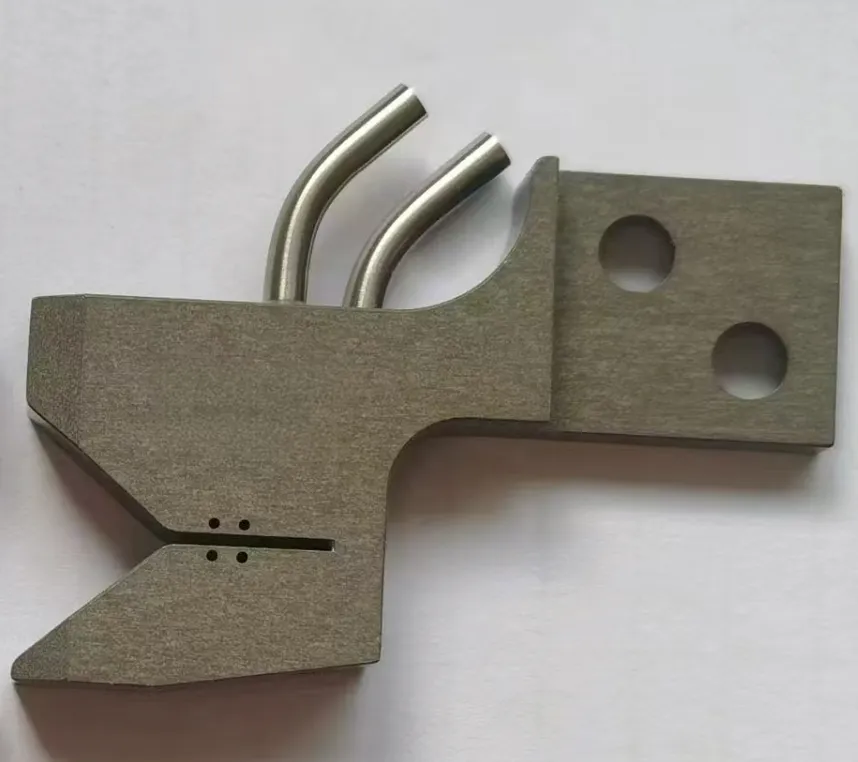

Tuck in Device Accessories
Contact our technical team to discuss your specific requirements and get a customized quote.
