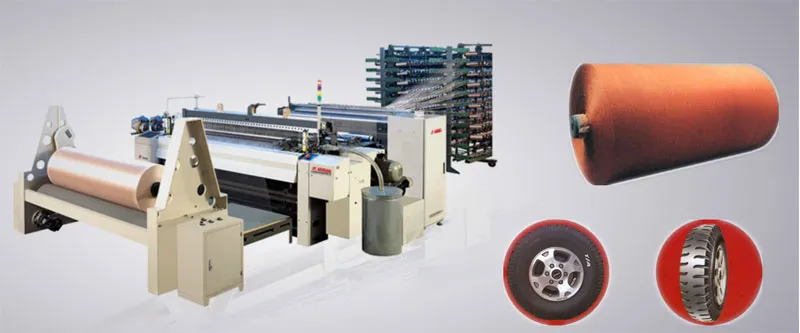

Tyre cord fabric reinforces car and aircraft tires, so the yarn, typically nylon, polyester or rayon, needs high tenacity, toughness and fatigue resistance, and the loom weaving it must process large volumes of yarn reliably, precisely and at real speed.
Our tyre cord weaving machine answers that brief with a rational design and a stable, strong beat-up that keeps weft insertion consistent even at high running speed, delivering roughly 20% higher efficiency than other models weaving the same structure.
A high degree of automation, including a human-computer interface that displays running condition, defect causes and weaving parameters, makes the machine easy to operate and helps keep the finished fabric's quality consistently high, with fewer flaws.
Key Highlights
• Efficiency: About 20% higher than other models
• Automation: Human-computer interface for easy operation
• Quality: Higher fabric quality, fewer flaws

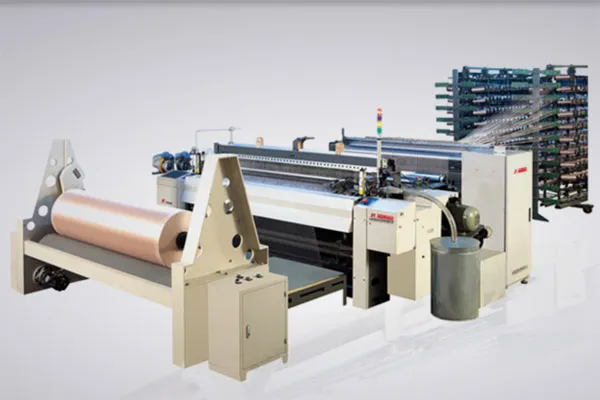

Tyre Cord Weaving
A special weft feeder works with dedicated main and auxiliary nozzles tuned for fiberglass, delivering reliable insertion while reducing the abrasion fiberglass yarn causes to nozzles and guides, exte...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Tyre Cord Weaving
| Width | 4 meters ~ 50 meters (customizable) |
| Operation Speed | 30~120 rpm (depending on width) |
| Yarn Scope | Cotton, polyester, fiberglass, carbon fiber, jute, sisal and etc. |
| Weft Density | 1~50 picks/cm |
| Beat-up System | Crank type and cam type (for light, medium and heavy fabrics) |
| Take Up | Electronic take-up driven by servo motor |
| Let-off | Electronic let-off driven by servo motor |
| Shedding | Electronic dobby or cam shedding |
| Weft Insertion | Flexible rapier with double width weaving capability |
| Special Feature | Double width weaving: 7m reed width can produce 13.5m fabric |
| Application | Carpet, agriculture, military, geotextile industry |
Contact our technical team to discuss your specific requirements and get a customized quote.
