Squeeze-and-metering-roll accuracy at operating temperature: ±2 μm; gap is servo-adjusted with a measurement accuracy of 0.5 μm and a control accuracy of 1 μm.

The impregnation bath can be configured for ambient temperature, water-bath heating, or cooling, depending on the resin.

Uses a high-efficiency vertical oven with multi-stage automatic temperature control and multiple heating options (natural gas, steam, thermal oil, or electric).

The central control console centrally and automatically manages parameters such as coating thickness, tension, speed, temperature, and length. Unwinding and rewinding can realize roll exchange without stopping

Optional modules such as a fabric storage rack, automatic viscosity-control system, online basis-weight detector, defect inspection system, and automatic marking machine can be added to enhance automation and strengthen product quality monitoring.

Suitable for producing wet-process prepregs of glass fiber, carbon fiber, basalt fabrics, etc., and widely used in aerospace and other industries.

SALIENT FEATURES Of
Fabric Impregnation Machine--Thermosetting Wet Process

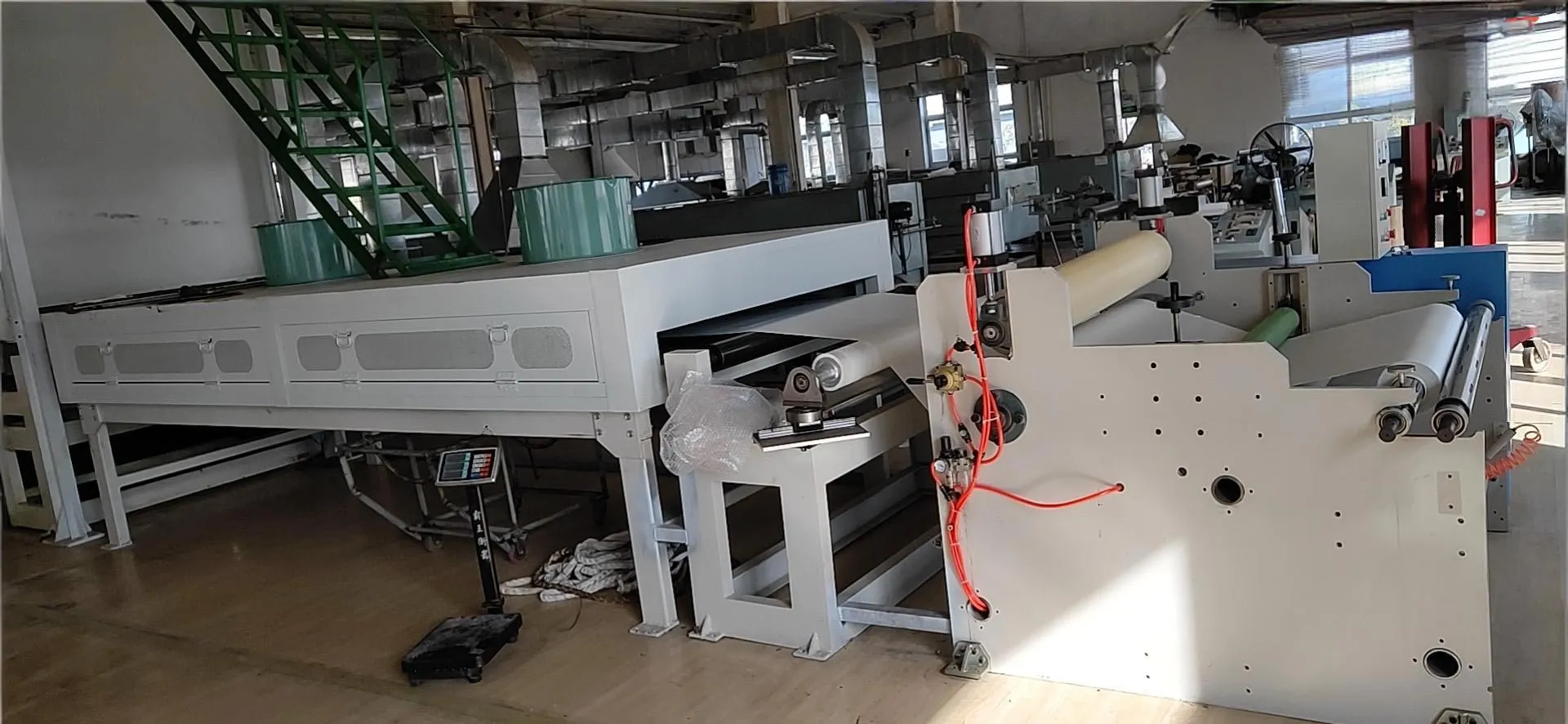

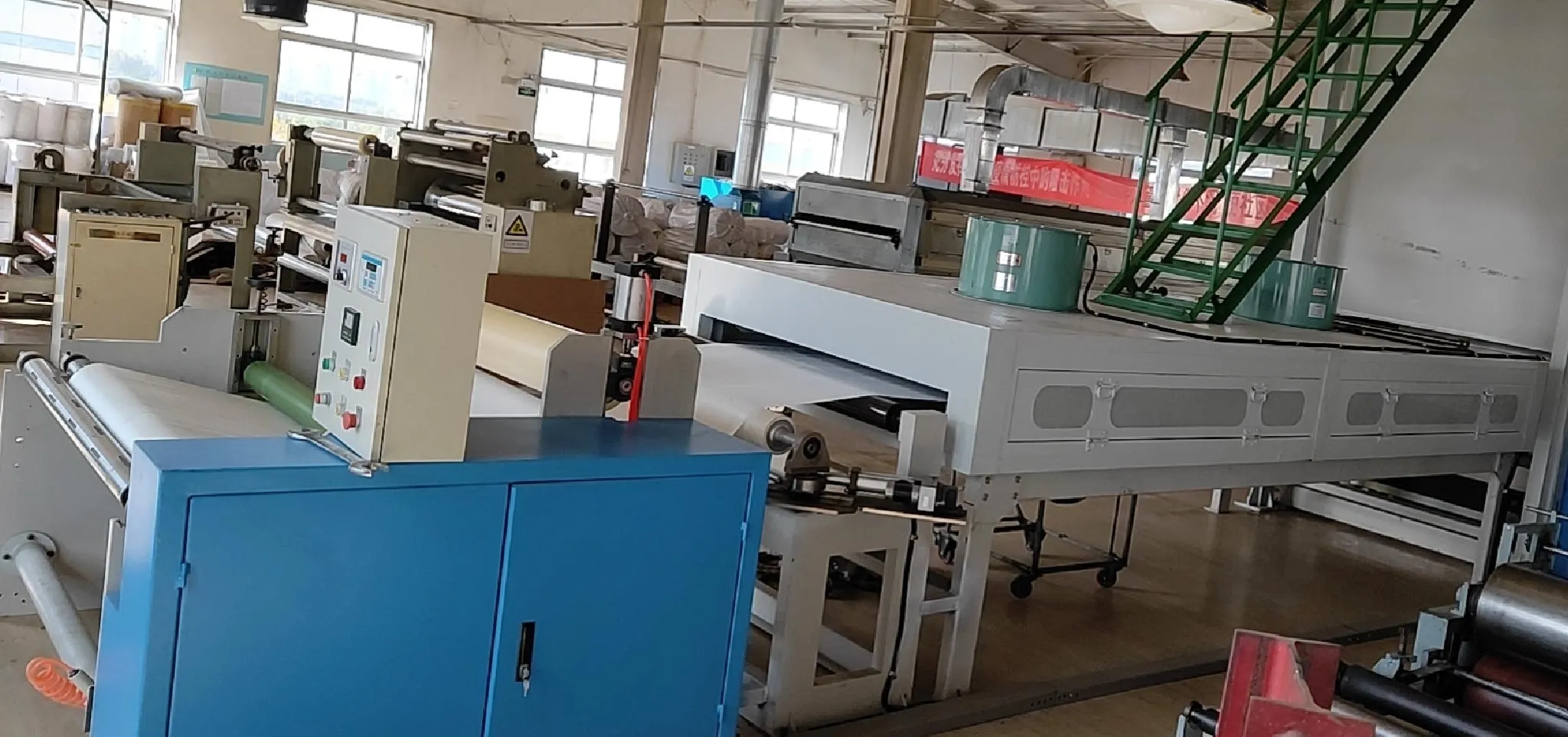

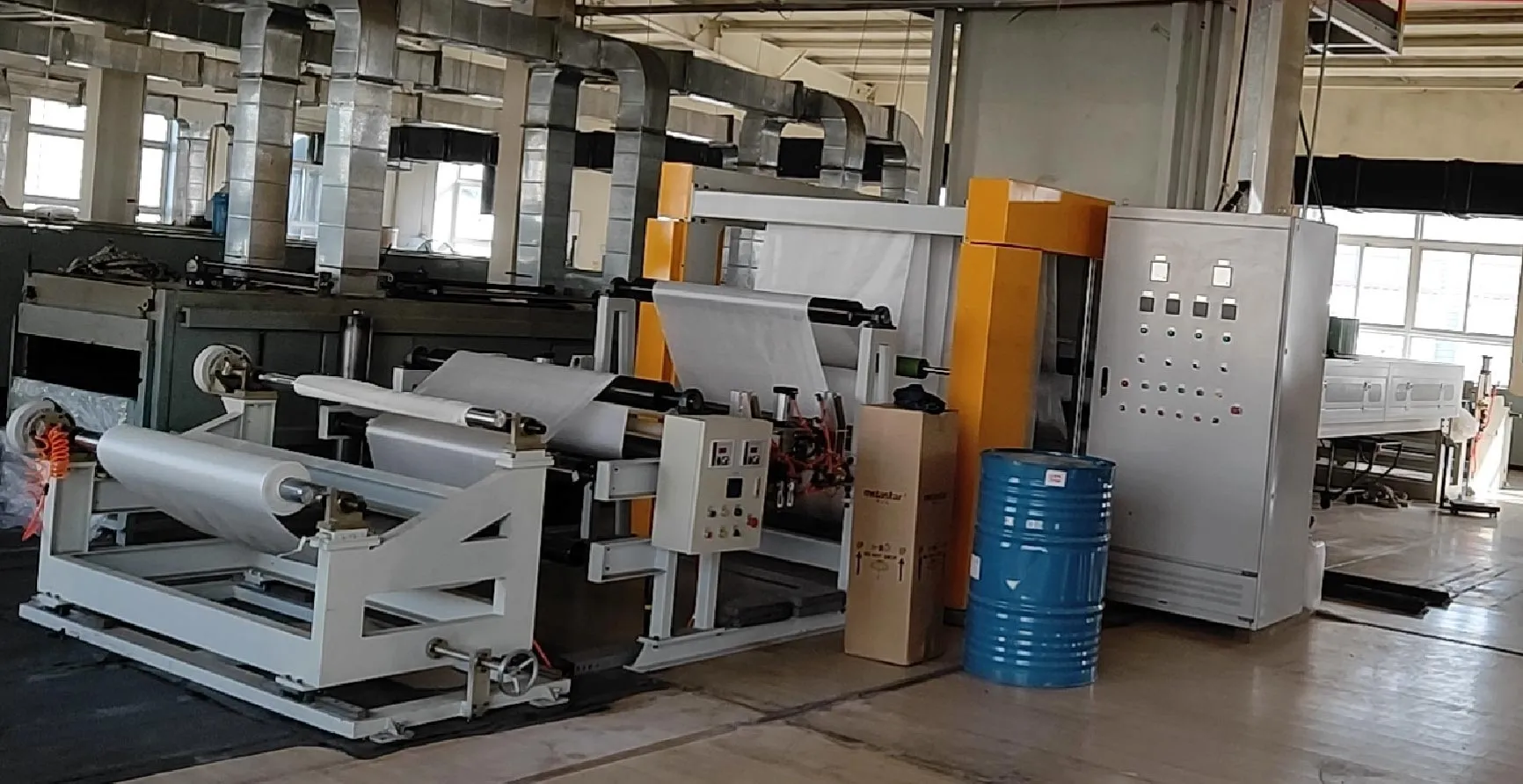

Fabric impregnation machine is a device specifically used for coating high-performance fiber fabrics. It employs a thermosetting wet process to uniformly apply adhesive onto the surface of high-performance fiber fabrics to meet specific process requirements.

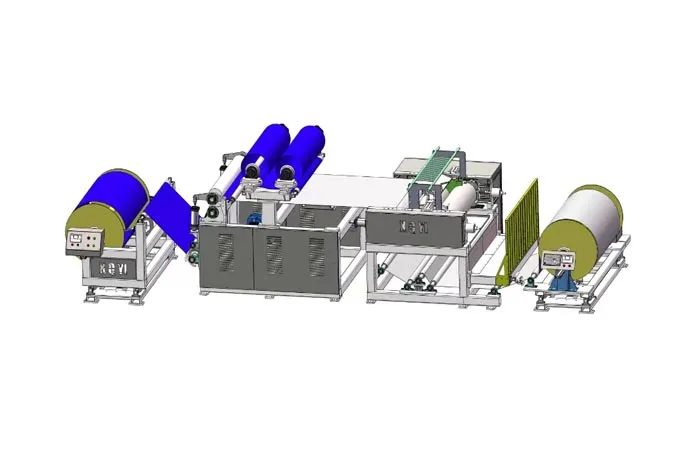

The machine comprises units including fabric unwinding, splicing, fabric storage rack, front traction, impregnation bath, squeeze-and-metering, drying, cooling, release-paper unwinding, PE-film unwinding, film-lamination traction, edge trimming, cutting, rewinding, automatic cross-cutting, online basis-weight measurement, online defect inspection, flammable-gas-concentration alarm, and electrical control system.

TECHNICAL SPECS Of
Fabric Impregnation Machine--Thermosetting Wet Process

Mechanical Speed	3~15 m/min
Drying Method	Natural gas, steam, thermal oil, electricity
Applicable Width	300mm~1600mm
Winding Diameter	500~1000mm
Fiber Density	30~800g/m²
Core Inner Diameter	76~305mm
