Coal mines and other high-risk environments require conveyor belts with an integral, flame-retardant fabric core, and our fire retardant conveyor core weaving loom is purpose-built for exactly that job: a steel machine body on a one-piece substructure, driven by a variable frequency motor through reduction gears for stable, controllable power.
Double dobby shedding across 16 heald frames pairs with single-rapier, double-weft insertion and small shuttle lockstitching to build the dense, reinforced structure conveyor belt cores need, while a conjugate cam beat-up with a separate slay delivers strong, consistent beating force.
PLC computer control handles parameter settings and automatic fault display, keeping the loom straightforward to operate and quick to service even in demanding industrial production environments.
Key Highlights
• Take-up: Servo electronic, porcupine roller, continuous
• Let-off: Positive continuous let-off
• Applications: Also builds other special-purpose industrial fabrics

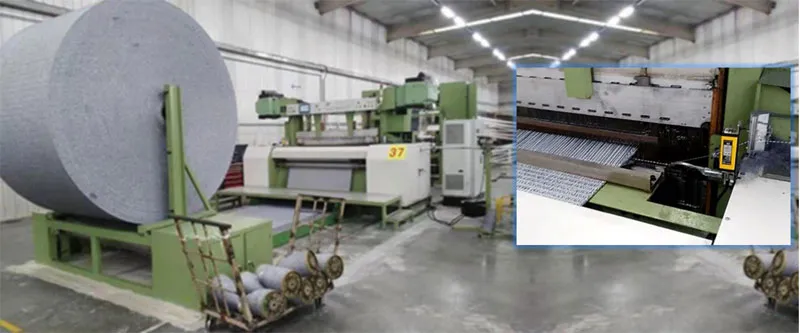

Fire Retardant Conveyor Core Weaving
For the production of same quantity fabric, the super-wide width rapier weaving machine occupies less space than normal width looms, The wider width loom is also much more economic in terms of energy ...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Except for wider width weaving loom, Sinotextile can also provide weaving machines suitable for PC/PU fiber ribbons, carpets, luggage cover, outdoor mat, velvet, mesh fabric, bamboo fabric and etc. We...
Fire Retardant Conveyor Core Weaving
| Reed Width | 160cm, 190cm, 160cmx2 | |||||||||
| Speed | 80rpm, with stepless speed regulating | |||||||||
| Range of yarn | All kinds of fiber ply yarn | |||||||||
| Warp/Weft density | Warp density 100~350 picks/10cm, weft density 60~120picks/10cm | |||||||||
| Power | About 7.87Kw | |||||||||
Contact our technical team to discuss your specific requirements and get a customized quote.
