Our sisal and jute rapier weaving loom is built on the proven GA788 platform, adapted specifically for coarse natural fibers like cotton, wool, hemp and jute, alongside chemical fiber and blended yarns. It is easy to operate and economical to maintain.
Rapier weft insertion is inherently faster and quieter than traditional shuttle weaving, with a strong gripping action that handles thick, coarse yarns without the frequent shuttle reloading that slows shuttle looms down.
A special weft accumulator, built for thick yarn, feeds weft continuously into the insertion cycle, keeping production running smoothly even with heavier, bulkier fibers than a standard rapier loom is designed for.
Key Highlights
• Platform: Based on the proven GA788 rapier loom
• Fiber range: Cotton, wool, hemp, jute, chemical, blended yarns
• Efficiency: Faster and quieter than shuttle loom weaving

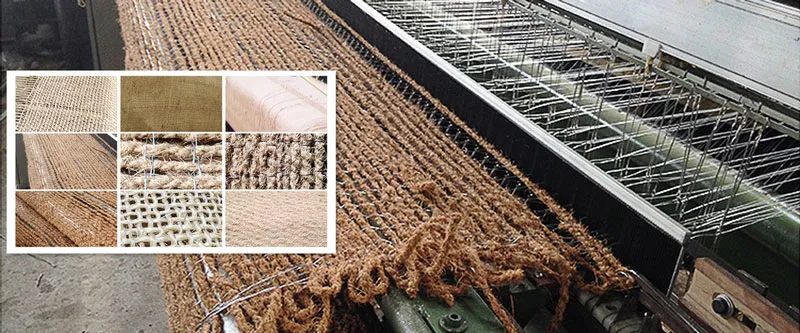

Jute & Sisal Weaving
For the production of same quantity fabric, the super-wide width rapier weaving machine occupies less space than normal width looms, The wider width loom is also much more economic in terms of energy ...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...

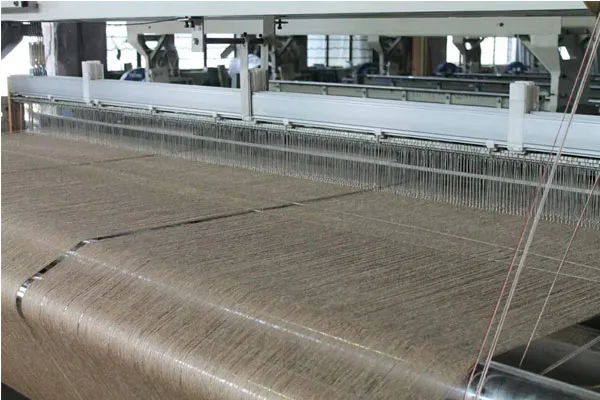

Jute & Sisal Weaving
| Reed Width | 180cm(74"), 200cm(78"), 230cm(90"), 250cm(98"), 280cm(110"), 330cm(130") | |||||||||
| Rotation speed(R.P.M) | 150-210 | |||||||||
| Weft selection | 1-4 colors | |||||||||
| Yarn count | jute yarn 7-60Ne, chemical fabric 100-650D | |||||||||
| Dia.of warp beam(mm) | 600mm, 800mm | |||||||||
| Dia.of rolling-up(mm) | 400mm | |||||||||
| Number of heddle frame | 8-12 pcs | |||||||||
| Insertion rate(m/min) | 300-400 | |||||||||
| Electrical control | P.L.C | |||||||||
| Motor power(KW) | 1.5KW~1.8KW | |||||||||
| Weight(kg) | 1700-2200 | |||||||||
| Overall size(mm) | 5400x1827x2120(8250px/130") | |||||||||
Contact our technical team to discuss your specific requirements and get a customized quote.
