Our specially designed electronic weft selector has two parts: a signal device that reads the programmed weft color sequence, and an actuator that steers the correct weft finger into position. Each color module runs its own stepping motor, synced to the loom's microcomputer to keep pace with loom speed.
Built for high-speed rapier looms above 400 rpm, up to a maximum of 600 rpm, it performs reliably at high, medium and low speeds. The modular design lets customers choose 2 to 16 colors freely, needs no special maintenance or lubrication, and makes color changes easy.
At about one-third the price of European models with comparable reliability, it's used as original equipment on looms from Kingtex, Wanli, Titan, Rifa and Picanol series looms.
Key Highlights
• Adoption of the latest technology with reasonable structure
• Stable and reliable performance,
• Long working endurance
• Easy maintenance and operation
Voltage: Usr:220±10% Vac/50HZ
Usr:27~36Vdc · 5A/24Vdc · 0.5A/5Vdc · 2A
No. of color selection: 2-16 colors
Frequency: 7-10t/s (loom speed 400-600rpm)

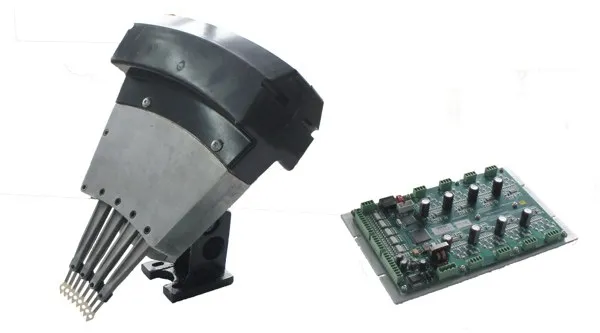

Applicable loom brands: Picanol, Kingtex, Wanli, Rifa, Titan and etc

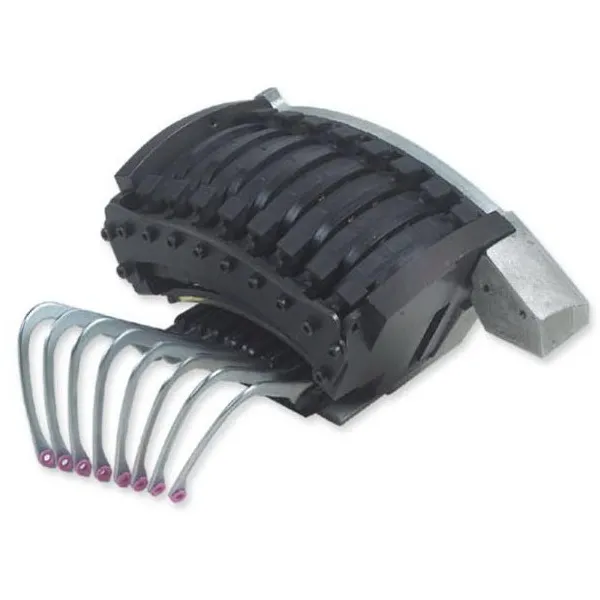

The weft color selector is a replacement for the original GS900 selector.
No. of color selection: 4~8 colors

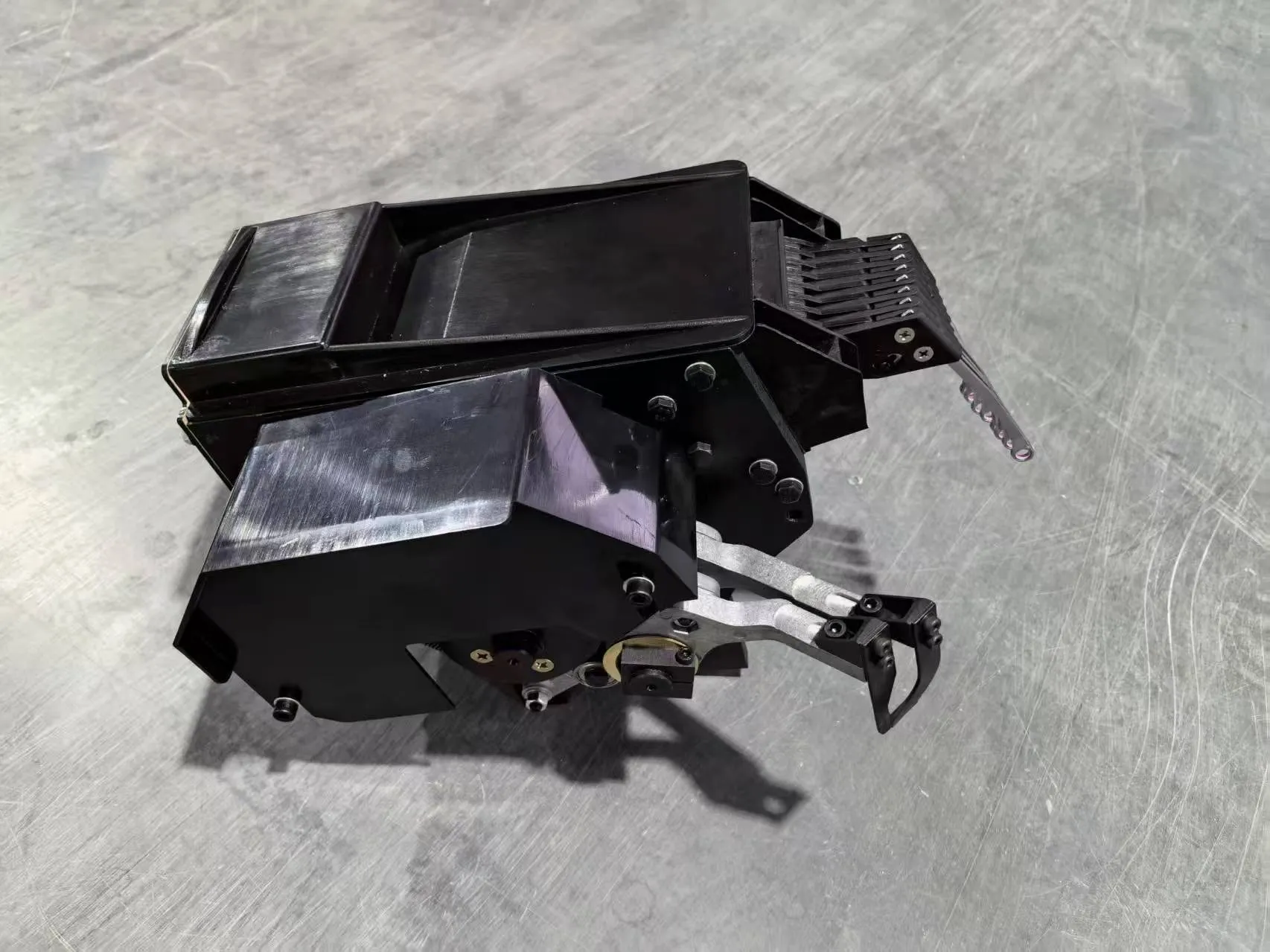

The weft color selector is a replacement for the original Somet Thema11E selector.
No. of color selection: 8 colors

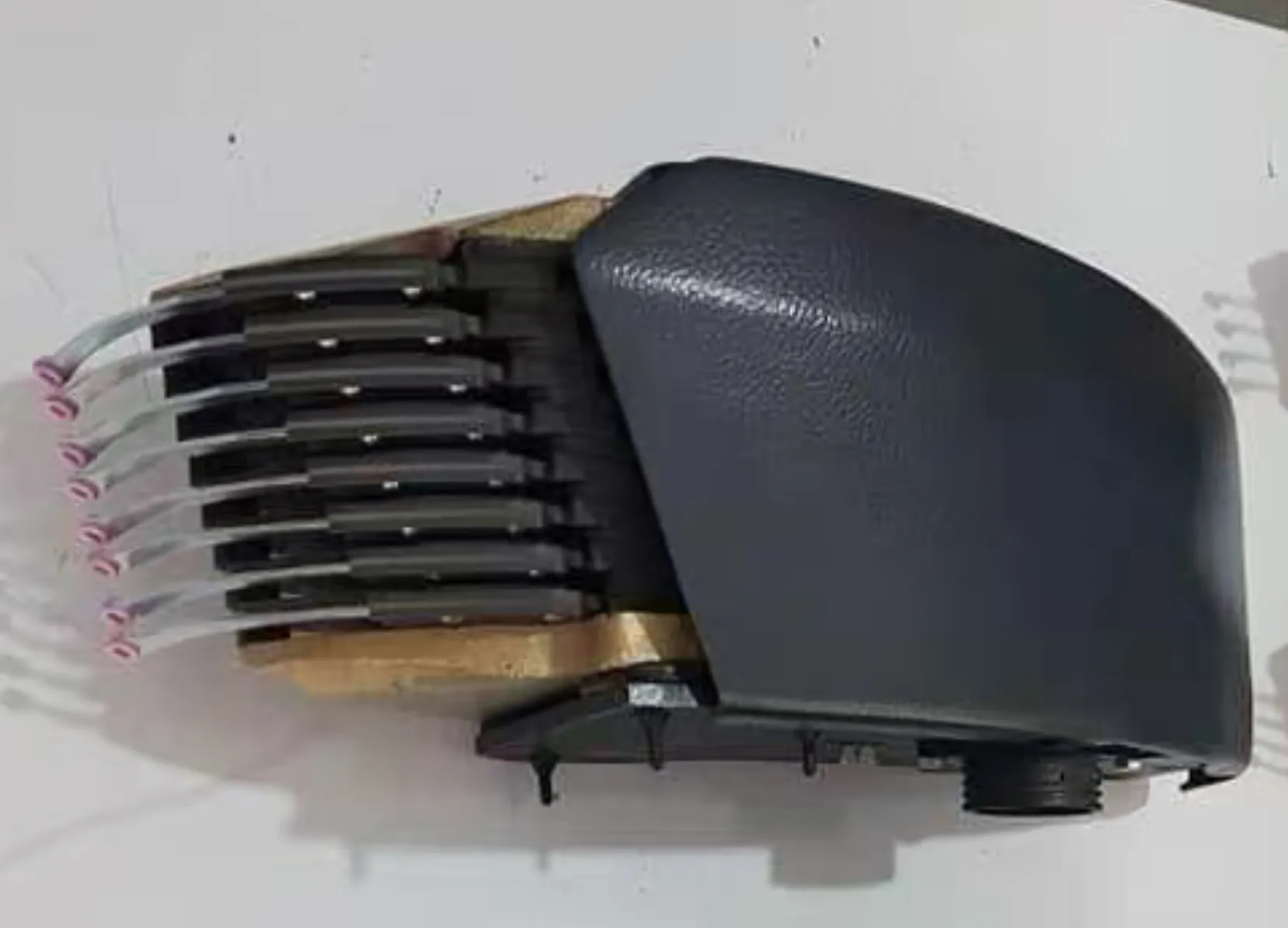

The weft color selector is a replacement for the original K88 selector.
No. of color selection: 4~8 colors

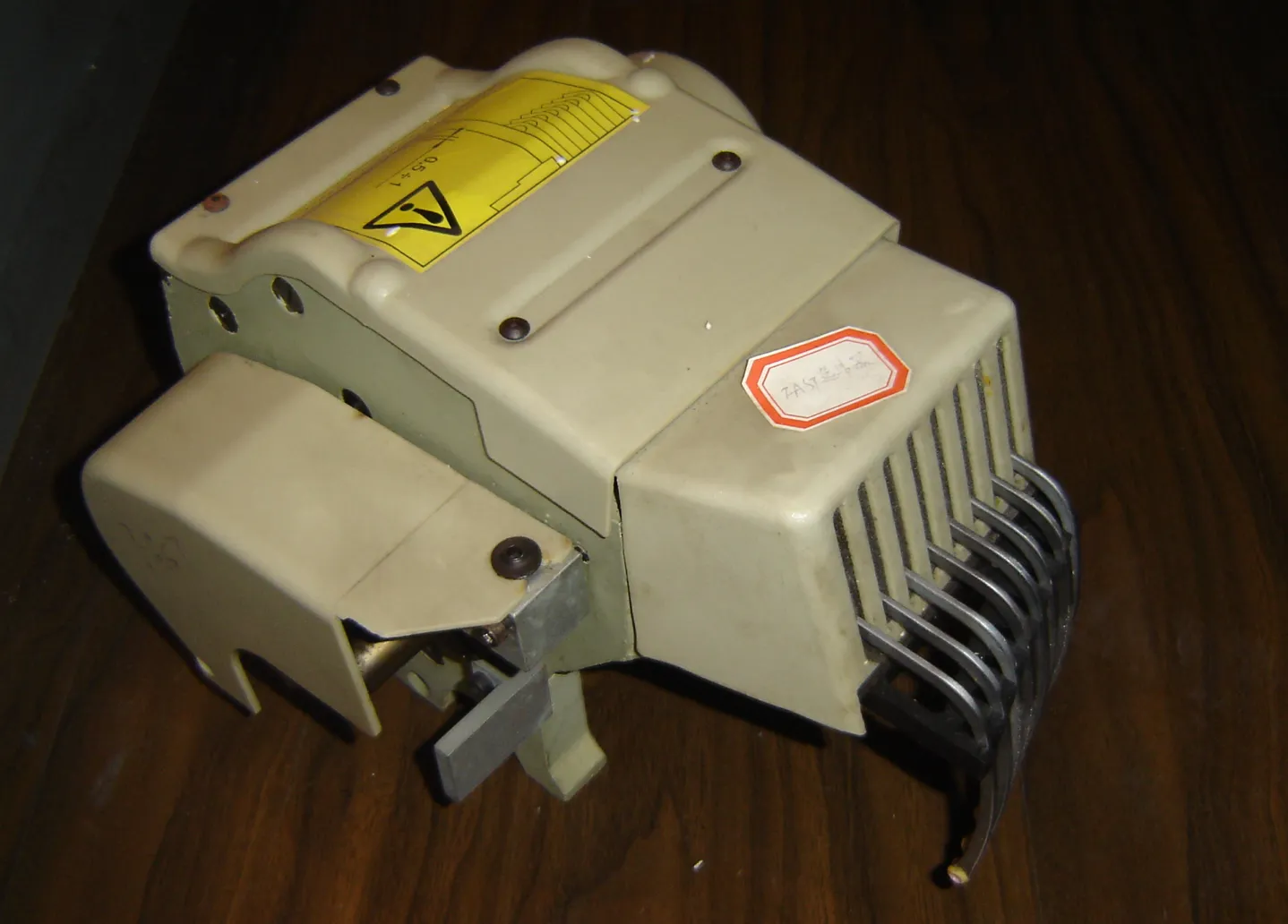

The weft color selector is a replacement for the original Nuovo Pignone FAST selector.
No. of color selection: 8 colors

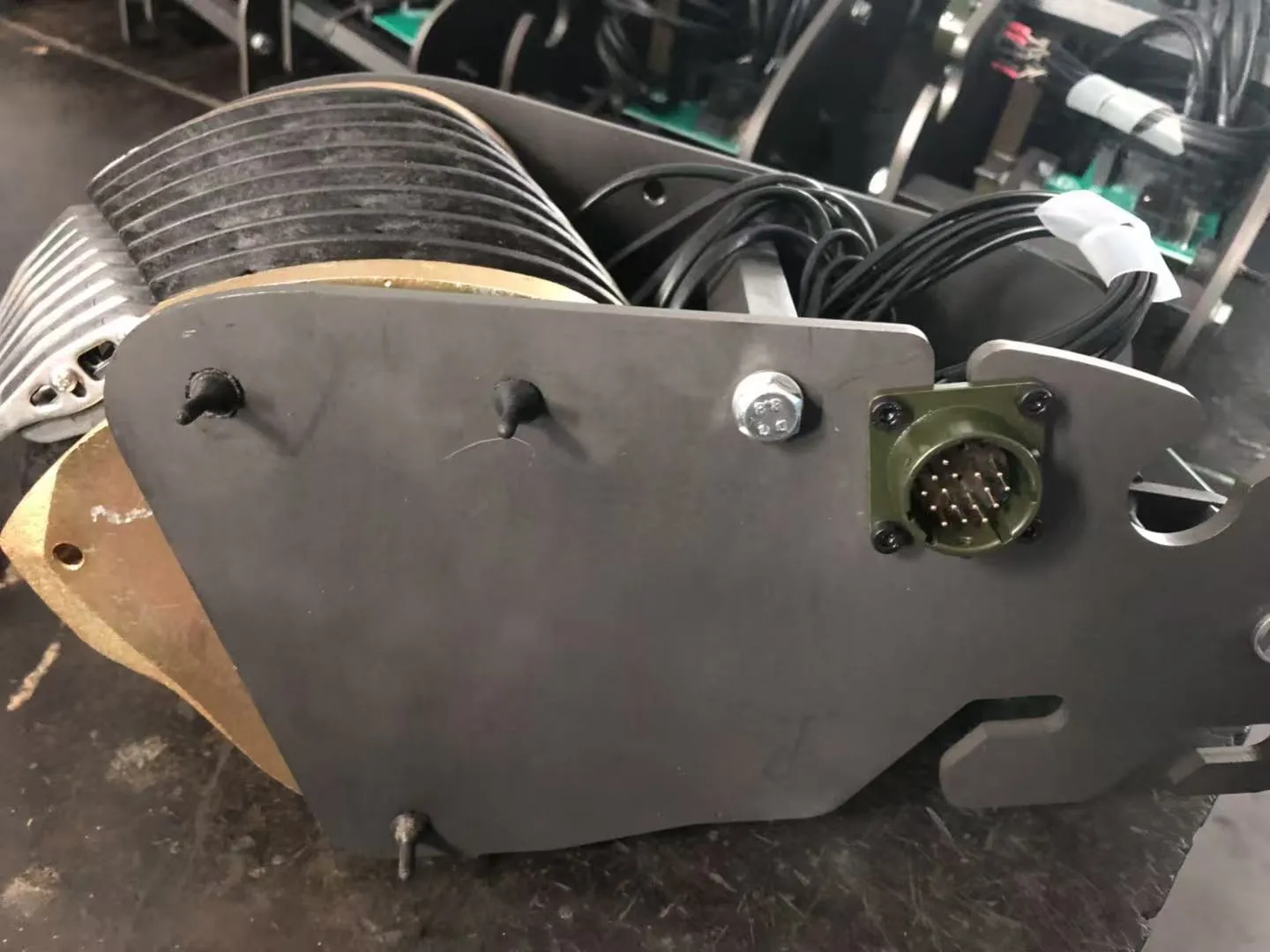

The weft color selector is a replacement for the original Leonardo selector.
No. of color selection: 4~8 colors

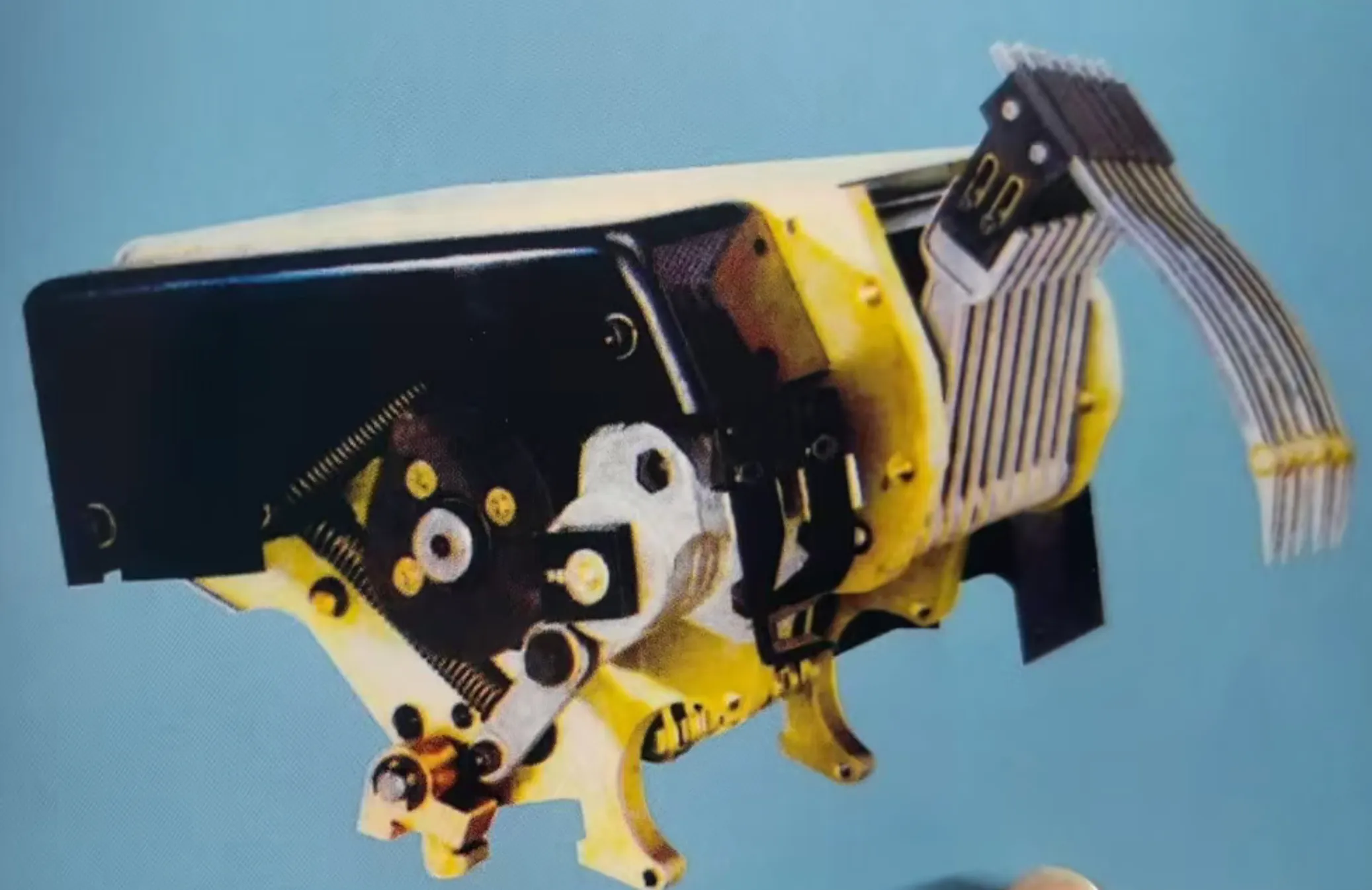

The weft color selector is a replacement for the original Somet SM93 selector.
No. of color selection: 8 colors
Contact our technical team to discuss your specific requirements and get a customized quote.
