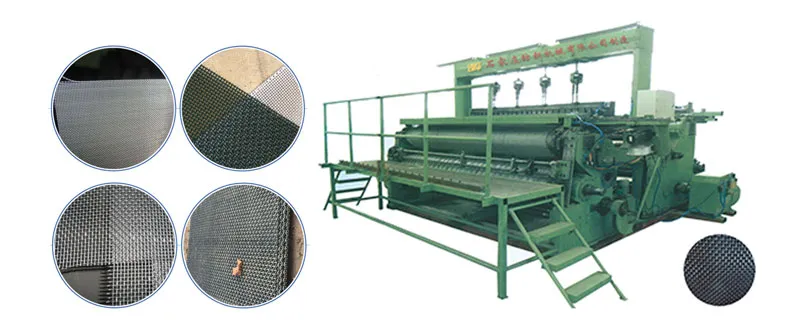

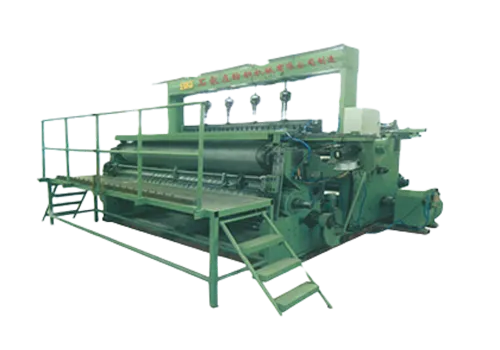

Our wire mesh weaving loom is purpose-built for metal wire, handling flat or pre-crimped, flexible or rigid wire from 0.10mm up to 6mm in diameter. The machine body's two main wall boards, reinforced with several pairs of middle wall boards, keep the frame rigid under heavy load.
A main motor paired with a pneumatic clutch drives the whole machine, while a tappet cam shedding device with 4 heald frames works alongside servo-driven rapier weft insertion, and a crankshaft six-linkage mechanism delivers a double weft beat for a dense, stable mesh structure.
Mechanical take-up and let-off keep the design simple and dependable, and PLC computer control handles parameter settings and automatic fault display for straightforward operation.
Key Highlights
• Take-up: Mechanical, simple and dependable
• Let-off: Mechanical
• Applications: Also builds other special-purpose industrial fabrics
Wire Mesh Weaving
For the production of same quantity fabric, the super-wide width rapier weaving machine occupies less space than normal width looms, The wider width loom is also much more economic in terms of energy ...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Except for wider width weaving loom, Sinotextile can also provide weaving machines suitable for PC/PU fiber ribbons, carpets, luggage cover, outdoor mat, velvet, mesh fabric, bamboo fabric and etc. We...
Wire Mesh Weaving
| Reed Width | 300cm~500cm | |||||||||
| Speed | 30rpm | |||||||||
| Range of Weft and Warp | Different types of metal wire made of stainless steel, copper and etc. | |||||||||
| Power | 7.5Kw | |||||||||
| Weight | 20T | |||||||||
Contact our technical team to discuss your specific requirements and get a customized quote.
