The GA736 builds on everything the GA788 does well, then adds the strength needed to weave thick, heavy fabrics. A reinforced beat-up system, using four levers, short connectors and a short sley driven by a 110mm seamless-tube shaft, gives it the extra rigidity heavy fabric production demands.
Micro-computer control, automatic warp and weft stop devices, and semi-automatic oil supply protect fabric quality, while advanced helix umbrella gears in the transmission box keep power delivery stable even at higher loads.
A positive, continuously variable warp let-off with tension feedback keeps pace with the pick-finding device to hold consistent tension throughout, and we offer the GA736 at a genuinely competitive price for partners worldwide.
Key Highlights
• Structure: Strong, heavy machine body
• Efficiency: Continuous take-up, double pressing rollers
• Reliability: Low noise, long life, easy maintenance

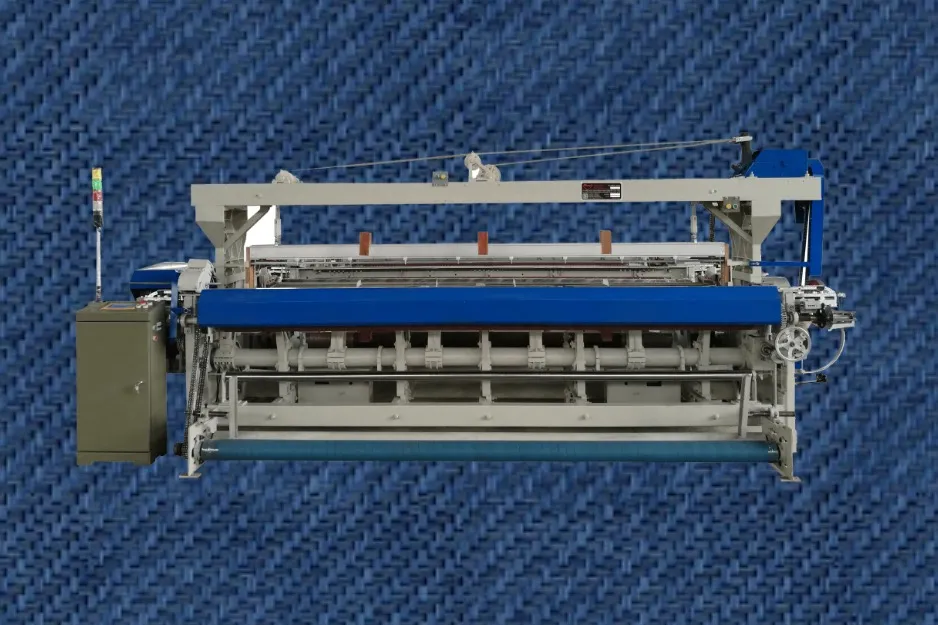

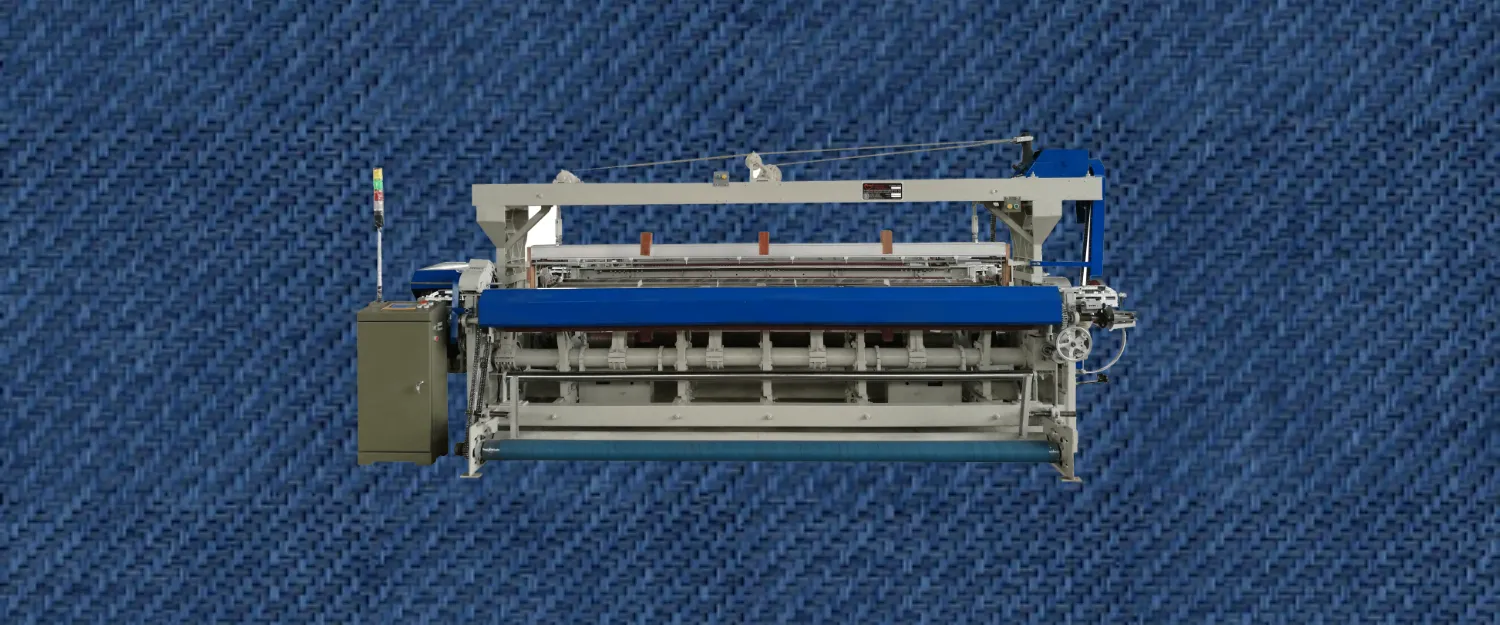

GA736 Rapier Loom
For the production of same quantity fabric, the super-wide width rapier weaving machine occupies less space than normal width looms, The wider width loom is also much more economic in terms of energy ...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Except for wider width weaving loom, Sinotextile can also provide weaving machines suitable for PC/PU fiber ribbons, carpets, luggage cover, outdoor mat, velvet, mesh fabric, bamboo fabric and etc. We...

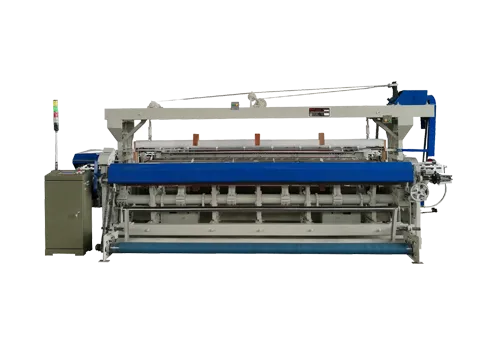

GA736 Rapier Loom
Width | 1800mm-3600mm |
Operation speed | 120-215rpm |
Weft density | 10~47picks/cm |
Take up | mechanical take-up, beam diameter φ600mm |
Letoff | mechanical let-off, beam diameter φ300mm or φ400mm |
Shedding | GT221 inhead type mechanical dobby or electronic dobby, 20 heald frames at most |
Color selector | 4~6 colors |
Selvage | Left, right and central tuck in device optional |
Maindrive | 1.5kw |
Automatic functions | automatic warp stop, automatic weft stop |
Electronic control | micro-computer control, LCD display of working statistics data |
Contact our technical team to discuss your specific requirements and get a customized quote.
