Air jet weaving is especially popular for plain and high-density fabrics, and the HH810 is built to deliver superior air-jet performance at an economical price. It helps mills produce top-grade fabric while cutting environmental impact, labor cost and overall production expense.
A new weft insertion system, redesigned frame and high-speed CPU push the HH810 to a maximum running speed of 1200 rpm, while energy-saving nozzle design keeps air consumption low and a computer-optimized, lightweight frame minimizes vibration even at full speed.
Standard and optional configurations extend the HH810 into fabrics normally woven on rapier looms, from home furnishings and tyre cord to electronic glass fabric, airbags and seersucker, all managed through an easy-to-use multifunctional control panel with internet connectivity.
Key Highlights
• Speed: Up to 1200 rpm with new weft insertion, fast CPU
• Energy: Low air consumption via nozzle design
• Stability: Low vibration, computer-optimized frame

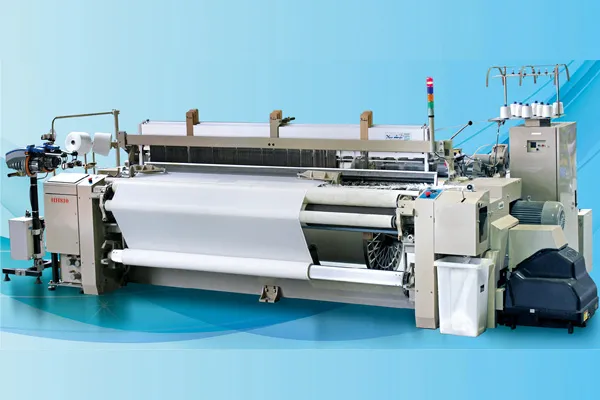

HH810 air jet loom
A special weft feeder works with dedicated main and auxiliary nozzles tuned for fiberglass, delivering reliable insertion while reducing the abrasion fiberglass yarn causes to nozzles and guides, exte...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...

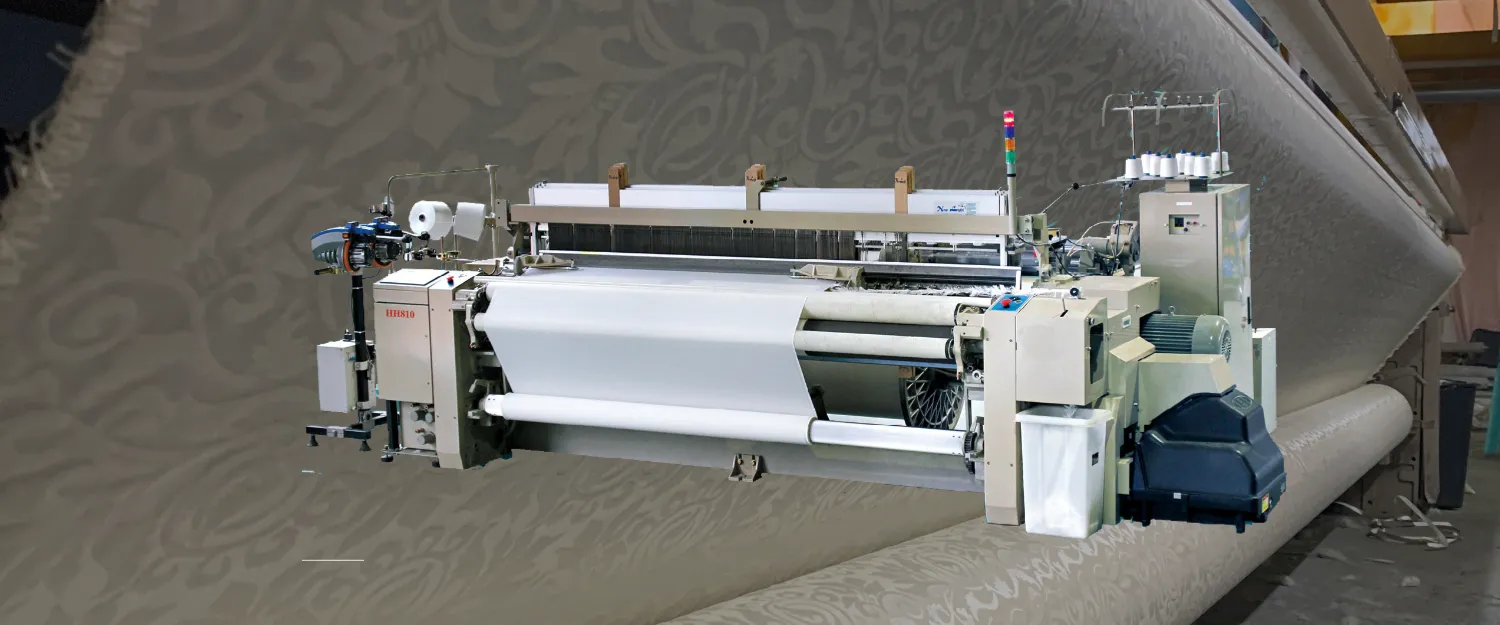

HH810 air jet loom
| Width | 4 meters ~ 50 meters (customizable) |
| Operation Speed | 30~120 rpm (depending on width) |
| Yarn Scope | Cotton, polyester, fiberglass, carbon fiber, jute, sisal and etc. |
| Weft Density | 1~50 picks/cm |
| Beat-up System | Crank type and cam type (for light, medium and heavy fabrics) |
| Take Up | Electronic take-up driven by servo motor |
| Let-off | Electronic let-off driven by servo motor |
| Shedding | Electronic dobby or cam shedding |
| Weft Insertion | Flexible rapier with double width weaving capability |
| Special Feature | Double width weaving: 7m reed width can produce 13.5m fabric |
| Application | Carpet, agriculture, military, geotextile industry |
Contact our technical team to discuss your specific requirements and get a customized quote.
