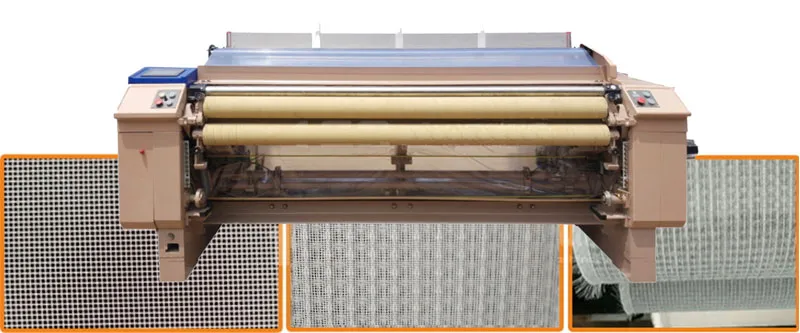

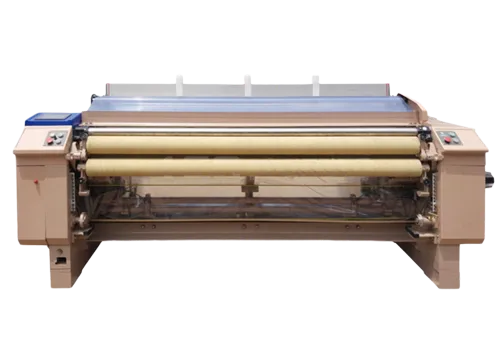

Our AC filter weaving loom builds on mature plastic round yarn weaving technology, purpose-built to produce air conditioner filter mesh, and today it holds more than 95% of the domestic AC filter weaving machine market.
A reinforced supporting bar and rigid body frame keep the machine stable, while eight heddle frames with cam shedding, a single nozzle and an electronic take-up let-off system work together to effectively reduce stop marks and other visible defects.
Beyond AC filters, the same water jet platform weaves insect net, sieve screen, printing net and plastic mesh, giving mills one machine for several related product lines.
Key Highlights
• Market share: Over 95% of domestic AC filter machines
• Frame: Reinforced supporting bar, rigid body
• Shedding: Eight heddle frames, cam shedding
• Quality: Reduces stop marks and visible defects
AC Filter Weaving
For the production of same quantity fabric, the super-wide width rapier weaving machine occupies less space than normal width looms, The wider width loom is also much more economic in terms of energy ...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Except for wider width weaving loom, Sinotextile can also provide weaving machines suitable for PC/PU fiber ribbons, carpets, luggage cover, outdoor mat, velvet, mesh fabric, bamboo fabric and etc. We...
AC Filter Weaving
| Width | 4 meters ~ 50 meters (customizable) |
| Operation Speed | 30~120 rpm (depending on width) |
| Yarn Scope | Cotton, polyester, fiberglass, carbon fiber, jute, sisal and etc. |
| Weft Density | 1~50 picks/cm |
| Beat-up System | Crank type and cam type (for light, medium and heavy fabrics) |
| Take Up | Electronic take-up driven by servo motor |
| Let-off | Electronic let-off driven by servo motor |
| Shedding | Electronic dobby or cam shedding |
| Weft Insertion | Flexible rapier with double width weaving capability |
| Special Feature | Double width weaving: 7m reed width can produce 13.5m fabric |
| Application | Carpet, agriculture, military, geotextile industry |
Contact our technical team to discuss your specific requirements and get a customized quote.
