The Sun600 series is our high-speed electronic jacquard machine, built for high-speed rapier, water jet and air jet looms, with hook counts from 2,688 to 36,864. It is designed for weaving labels, ties, decoration fabric, terry fabrics, carpet and velvet.
At the core of the Sun600 is a conjugate cam shedding mechanism built on an improved Staubli-type structure, delivering the smooth, precise motion that high-speed weaving demands while keeping the transmission more stable and economical to run.
The Sun600 has already been fitted on Panter MAXI, Picanol optimax, Itema R9500, Dornier and other high speed weaving machines without communication problem.
Key Highlights
• Energy efficiency: Low energy consumption in transmission
• Reliability: Fully sealed electrical control system
• Capacity: High speed, low torque, handles heavy-load patterns

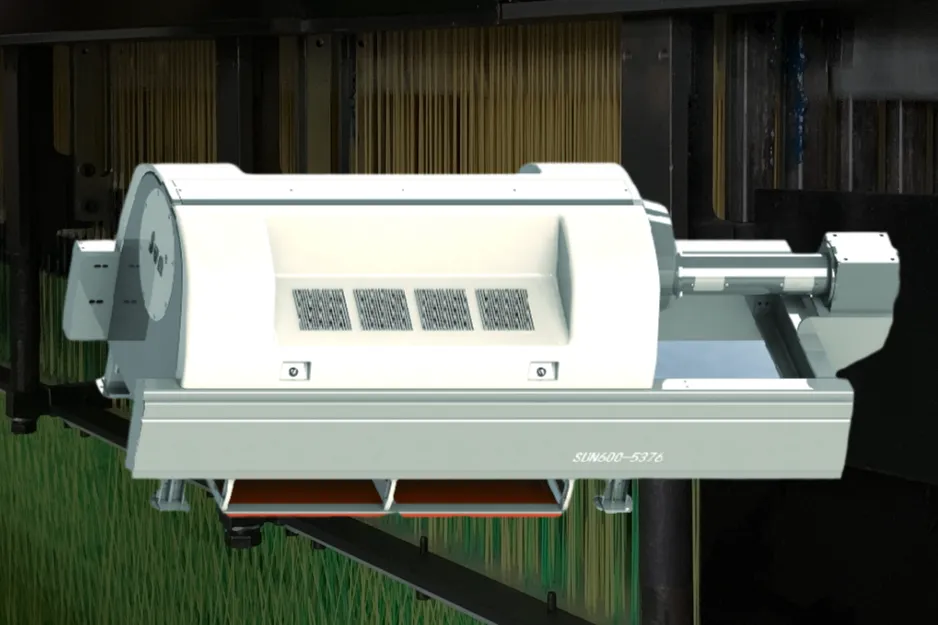

Sun600 Jacquard Machine
A special weft feeder works with dedicated main and auxiliary nozzles tuned for fiberglass, delivering reliable insertion while reducing the abrasion fiberglass yarn causes to nozzles and guides, exte...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Sun600 Jacquard Machine
Field of application | Hign speed rapier loom, water jet loom, air-jet loom |
Fabric suitability | All flat fabrics, terry cloth and technical fabrics |
Available hooks | 2688~36864 hooks |
Maximum speed | 600rpm |
50-120mm | |
Transmission model | Shaft drive |
Hook selection | Staubli, M5 with bearing |
Electronic control | JC5+EP |
Our Sun 600 series have already been fitting with Panter latest model MAXI, it is also suitable for brands like Picanol, Itema, Dornier, Vamatex and etc., it is your best choice for high speed weaving.
Contact our technical team to discuss your specific requirements and get a customized quote.
