The QJH910J is part of a full range of electronic jacquard rapier looms we offer to match different weaving needs, with broad fabric adaptability across cotton, blended and chemical fiber yarns, weaving everything from light to heavy jacquard fabrics like decorative cloth, tie cloth and home textiles.
A high-power main motor with inverter enables variable speed weaving, while 32-bit microcomputer control handles automatic weft stop, warp stop, empty weft detection, multi-weft handling and positioning stop, with errors detected and displayed automatically.
The loom accepts electronic jacquard heads with hook ranges from 1,344 to 12,288, compatible with our own brand or the main brands electronic jacquard.
Key Highlights
• Data input: USB and wireless parameter entry
• Data tracking: Automatic stop, output, efficiency logging
• Troubleshooting: Slow motion pick finding function

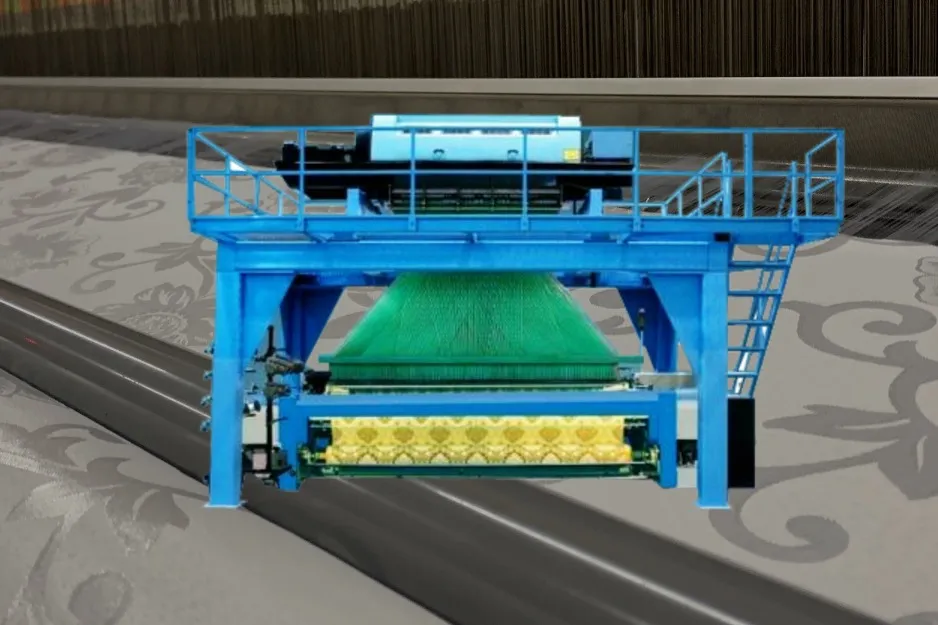

QJH910J Rapier Jacquard Loom
A special weft feeder works with dedicated main and auxiliary nozzles tuned for fiberglass, delivering reliable insertion while reducing the abrasion fiberglass yarn causes to nozzles and guides, exte...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Except for wider width weaving loom, Sinotextile can also provide weaving machines suitable for PC/PU fiber ribbons, carpets, luggage cover, outdoor mat, velvet, mesh fabric, bamboo fabric and etc. We...

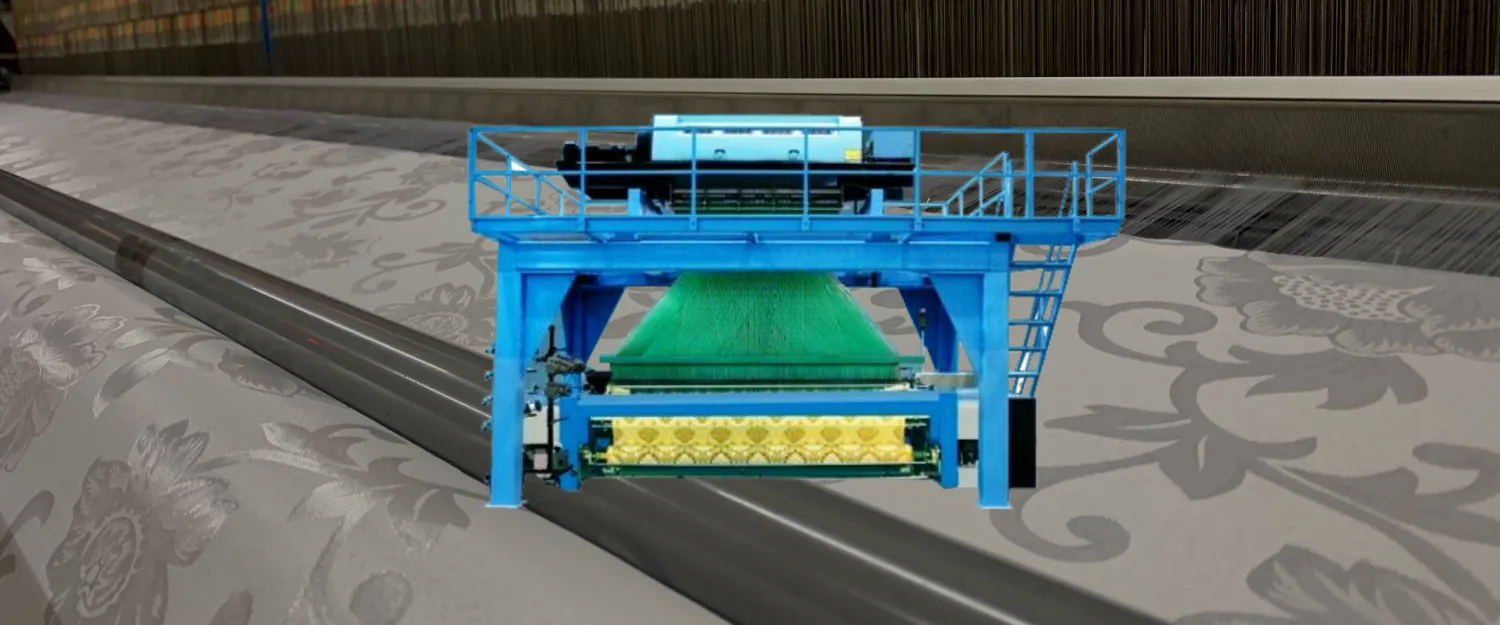

QJH910J Rapier Jacquard Loom
Width | 190cm, 230cm, 280cm, 300cm, 320cm, 340cm, 360cm |
Operation speed | maximum design speed350rpm, economic speed240~280rpm (340cm model) |
Weft density | 4~200 picks/cm |
Take up | electronic take-up driven by servo motor, beam diameter φ600mm |
Letoff | electronic let-off driven by servo motor, beam diameter φ800mm |
Shedding | electronic jacquard 1344, 2688, 5120, 6144, 12288 hooks |
Color selector | high speed electronic weft selector controlled bystepping motor, 4~16 colors |
Selvage | electronic jacquard driven selvage, optional stepping motor independent selvage mechanism |
Maindrive | high power main motor with speed converter, power rating7.5KW |
Automatic functions | automatic warp stop, automatic weft stop,automatic pick finding |
Electronic control | with 32-bit CPU control system and embedded software |
Weft insertion | space four-link structure, 16mm rapier tape with suspension guide hook; adopting slow positive anti seeking, weft insertion motion precision to reduce the start mark |
Beat up | double side conjugate cam, separated slay |
Lubrication | closed force circulation lubrication system |
Contact our technical team to discuss your specific requirements and get a customized quote.
