Velvet fabric starts as a double-layer weave, with a set height of pile warp connecting the top and bottom layers; once woven, the two layers are cut apart to yield two separate pieces of velvet fabric in a single pass.
An intelligent velvet control system manages electronic let-off for ground and pile warp separately, along with electronic pile raising, electronic dobby shedding and electronic confuser weft insertion, keeping tension uniform and pile height accurate throughout the weaving process.
Air jet weft insertion avoids the friction between warp, pile and selvedge yarn that rapier and shuttle looms cause, while confuser relay insertion improves efficiency and cuts energy use, a genuine advantage unique to this air jet approach.
Key Highlights
• Structure: Double-layer weave, cut into two velvet pieces
• Control: Intelligent electronic system for let-off and shedding
• Efficiency: Confuser relay insertion saves energy

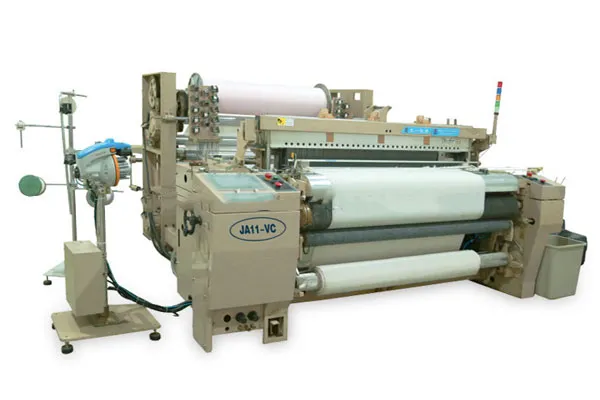

Velvet Weaving
A special weft feeder works with dedicated main and auxiliary nozzles tuned for fiberglass, delivering reliable insertion while reducing the abrasion fiberglass yarn causes to nozzles and guides, exte...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...

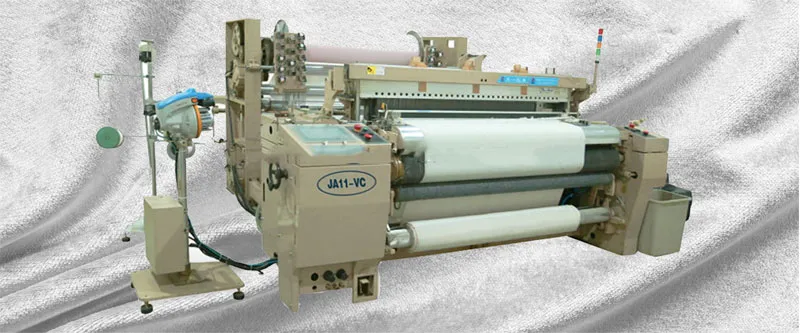

Velvet Weaving
| Width | 4 meters ~ 50 meters (customizable) |
| Operation Speed | 30~120 rpm (depending on width) |
| Yarn Scope | Cotton, polyester, fiberglass, carbon fiber, jute, sisal and etc. |
| Weft Density | 1~50 picks/cm |
| Beat-up System | Crank type and cam type (for light, medium and heavy fabrics) |
| Take Up | Electronic take-up driven by servo motor |
| Let-off | Electronic let-off driven by servo motor |
| Shedding | Electronic dobby or cam shedding |
| Weft Insertion | Flexible rapier with double width weaving capability |
| Special Feature | Double width weaving: 7m reed width can produce 13.5m fabric |
| Application | Carpet, agriculture, military, geotextile industry |
Contact our technical team to discuss your specific requirements and get a customized quote.
