Carpet, agriculture, military and geotextile production all create demand for super-wide fabric that standard looms cannot handle. Rapier, air jet, water jet and projectile looms typically top out around 4 meters wide, but our platform scales from 4 to 50 meters, fully customizable.
A special weft insertion system lets the loom weave fabric at double the width of its reed, a technique long used on shuttle looms but rare among rapier machines: a 7-meter reed, for example, produces 13.5 meters of finished fabric.
For the same fabric output, a wider loom occupies less floor space and consumes less energy than running multiple standard-width machines in parallel, while a versatile crank-and-cam beat-up system adapts to light, medium and heavy fabrics.
Key Highlights
• Width range: 4 to 50 meters, fully customizable
• Applications: Carpet, agriculture, military, geotextile
• Customization: Width, beat-up type, and configuration tailored to order

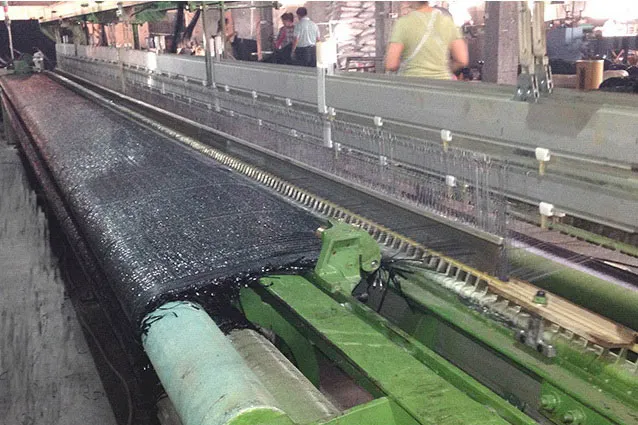

Ultra-wide Width Weaving
For the production of same quantity fabric, the super-wide width rapier weaving machine occupies less space than normal width looms, The wider width loom is also much more economic in terms of energy ...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Except for wider width weaving loom, Sinotextile can also provide weaving machines suitable for PC/PU fiber ribbons, carpets, luggage cover, outdoor mat, velvet, mesh fabric, bamboo fabric and etc. We...
Ultra-wide Width Weaving
| Width | 4 meters ~ 50 meters (customizable) |
| Operation Speed | 30~120 rpm (depending on width) |
| Yarn Scope | Cotton, polyester, fiberglass, carbon fiber, jute, sisal and etc. |
| Weft Density | 1~50 picks/cm |
| Beat-up System | Crank type and cam type (for light, medium and heavy fabrics) |
| Take Up | Electronic take-up driven by servo motor |
| Let-off | Electronic let-off driven by servo motor |
| Shedding | Electronic dobby or cam shedding |
| Weft Insertion | Flexible rapier with double width weaving capability |
| Special Feature | Double width weaving: 7m reed width can produce 13.5m fabric |
| Application | Carpet, agriculture, military, geotextile industry |
Contact our technical team to discuss your specific requirements and get a customized quote.
