SALIENT FEATURES Of
Carbon Fiber Sample Weaving Machine

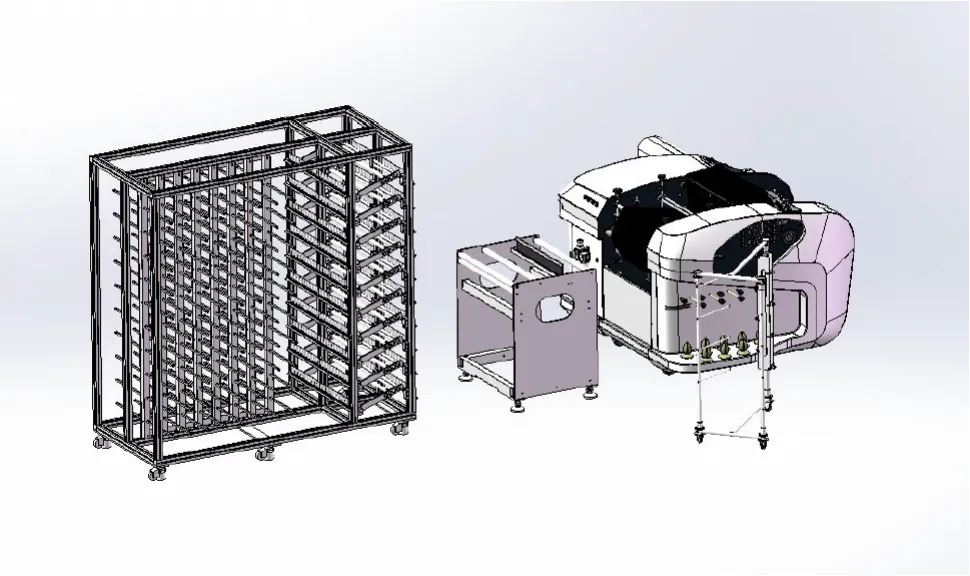

The machine is used for small batch test weaving of carbon fiber and other advanced materials. Due to the small space requirement and versatility, the sample weaving machine is widely used in institutions, colleagues, and labs. The whole machine includes a weaving loom, tension bracket, unwinding creel, and a rewinding device.

SUITABLE FOR FABRIC WIDTH: MAXIMUM 36 INCH

HEALD FRAME: 20 PCS

SUITABLE WEAVING PATTERN: PLAIN, TWILL, SATIN, AND ETC

SUITABLE FOR YARN: CARBON FIBER, kevlar, fiberglass, etc

warp: 3-8 PICKS/CM, 1k~12k carbon fiber

weft: 3-8 PICKS/CM, 1k-12k carbon, fiberglass, kevlar

MACHINE SPEED: 30-40RPM

PRODUCTION CAPABILITY: 200~250 METERS PER DAY (24 HOURS)

all electronic PARTS with CARBON DUST PREVENTION, IP65 GRADE PROTECTION

Required voltage: 220V 50HZ

required space: 5000X3000X1700MM

required air compressor: 0.3-0.8MPA

TECHNICAL SPECS Of
Carbon Fiber Sample Weaving Machine

Suitable For Fabric Width	Maximum 36 Inch
Heald Frame	20 Pcs
Suitable Weaving Pattern	Plain, Twill, Satin, And Etc
Suitable For Yarn	Carbon Fiber, Kevlar, Fiberglass, Etc
Warp	3-8 Picks/Cm, 1k~12k Carbon Fiber
Weft	3-8 Picks/Cm, 1k-12k Carbon, Fiberglass, Kevlar
Machine Speed	30-40rpm
Production Capability	200~250 Meters Per Day (24 Hours)
All Electronic Parts With Carbon Dust Prevention	Ip65 Grade Protection
Required Voltage	220v 50hz
Required Space	5000x3000x1700mm
Required Air Compressor	0.3-0.8mpa
