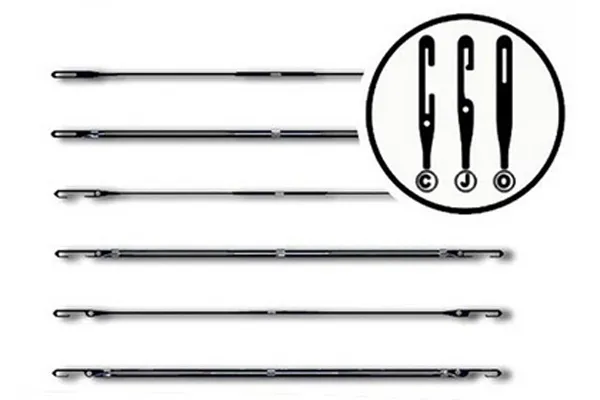

Heald wires are used to lead the warp yarns to move in lifting motion, forming a weaving shed for weft yarns to be brought in.

Our offered heald wire is well-manufactured by using of superior quality stainless steel. The edges of our steel heddles are well polished and available with thread eye for impeccable weaving of fine and low twist wrap yarn. Moreover, our range of heald wires is suitable for all types of mechanical and electrical wrap stop motions.

Also, we check these products upon various parameters so as to avoid any trouble from customer side. Different specifications weaving healds are available to meet the clients' specific needs.

Specification of closed type flat steel healds

Type

Cross Section

Length

Kind

Shape

Width*Thickness(mm)

Distance between end loops



Closed type

Simplex (S)

2.20*0.30


280 330

300 380

302 420


2.34*0.35

Douplex(D)

2.50*0.35

2.60*0.40

Unilateral Douplex (P)

2.80*0.40

2.50*0.30

Type of thread eye

Type of end loop

Position of the thread eye

Code

Size

Code

Upper loop

Lower loop



U above center

C in the center


1

5.0*1.0


-1

-2

-3

-4

 Upperloop

2

5.5*1.2

3

6.0*1.5

4

6.5*1.8

5

7.0*2.0

Schematic diagram of mail-eye for closed flat steel healds

Schematic diagram of mail-eye for closed flat steel healds

Closed type flat steel healds

Closed type flat steel healds

Specification of open type flat steel healds

Type

Cross Section

Length

Kind

Shape

Width*Thickness(mm)

Distance between end loops



Oopentype

Simplex (J)

Douplex(JP)

Simplex (C)

Douplex (CP)

5.50*0.23


280 382

302 407

331 432

356


5.50*0.25

5.50*0.30

5.50*0.38

5.50*0.40


Type ofthread eye

Type of end loop

Position of the thread eye

Code

Size

Code

Upper loop

Lower loop



U above center

C in the center


2

5.5*1.2


-5

-6

-7


4

6.5*1.8

5

8.0*2.5

6

8.0*3.8



Schematic diagram of mail-eye for open flat steel healds

Schematic diagram of mail-eye for open flat steel healds

Open type flat steel healds

Opentype flat steel healds
