Electromagnets and coils are the core actuating components in dobby, jacquard and weft accumulator systems: energizing the coil creates a magnetic field that holds or releases a selector, hook or lever at exactly the right moment in the weaving cycle. Precise, consistent magnetic response is what keeps shed formation and weft selection accurate at high loom speeds.

Our dobby electromagnets and coils are designed, manufactured and controlled strictly to weaving industry standards, matching the dimensions and function of original parts. Our proximity sensors, optoelectronic switches, weft selecting coils and weft detectors can replace original ones without any compatibility issues.

We supply electromagnets and coils for dobby, weft accumulator, jacquard module and weft selector applications, with customization available from sample or drawing.

Key Highlights

Standard: Strict ISO-standard design and manufacturing
Compatibility: Same dimensions and function as OEM parts
Applications: Dobby, weft accumulator, jacquard module, weft selector
Service: Customization from sample or drawing

Request Quote Download Brochure

PRODUCT SPECIFICATIONS

Electromagnet & Coil

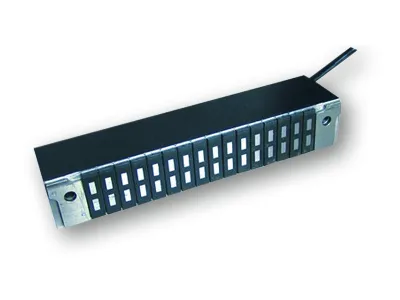

SN00126-RH	F292.711.07A F292.464.26	DOBBY ELECTROMAGNET

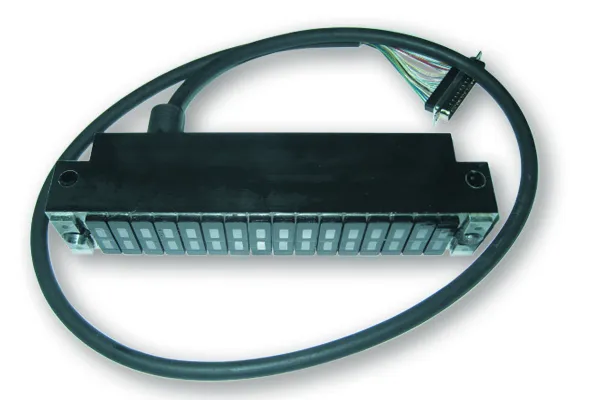

SN00127-RH	F292.727.05A	DOBBY ELECTROMAGNET 12 SHAFT

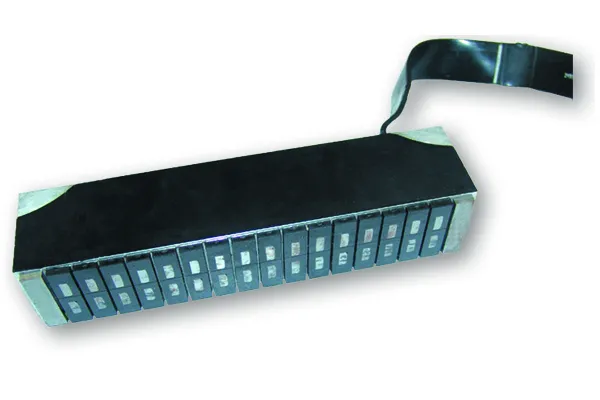

SN00128-RH	F292.348.05 F292.780.02B F292.340.02 F292.348.11B	DOBBY MAGNET

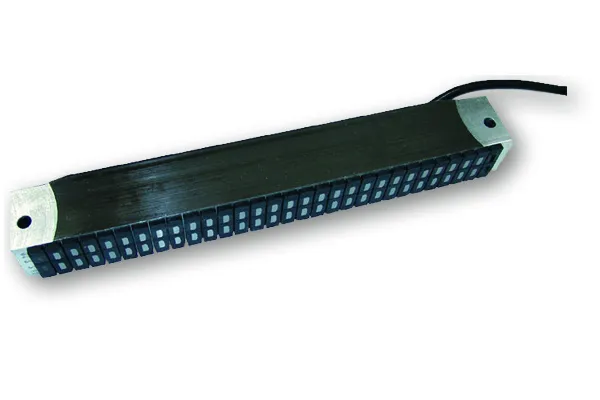

SN00129-RH	F292.464.18 F292.687.03 F292.464.45	DOBBY MAGNET

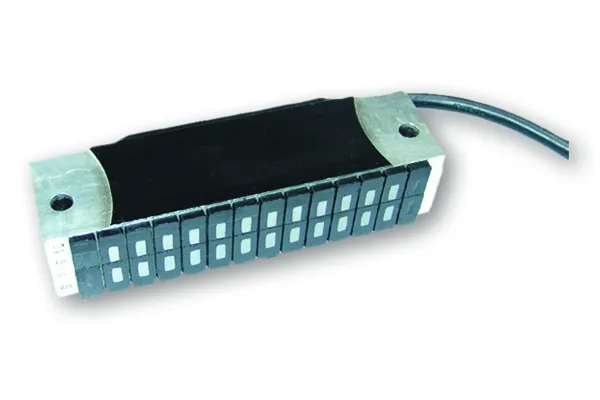

SN00130-RH	F292.464.25	DOBBY MAGNET

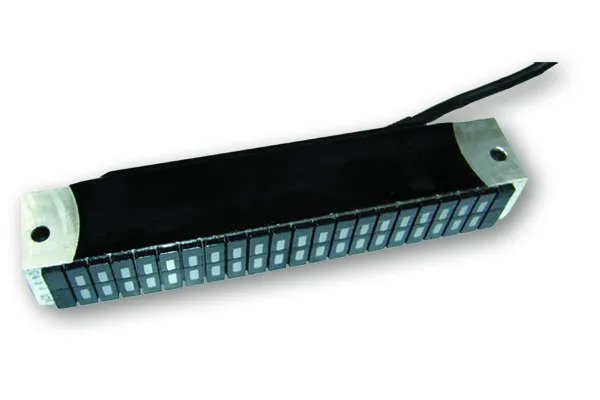

SN00131-RH	F292.464.26 F292.464.43 F292.687.33	DOBBY MAGNET

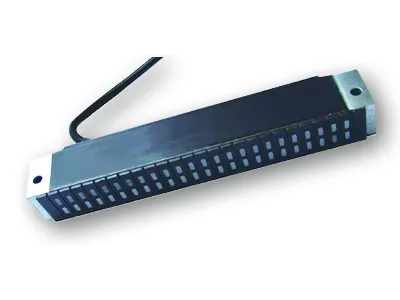

SN00132-RH	F292.687.02 F292.464.10 F292464.47	DOBBY MAGNET

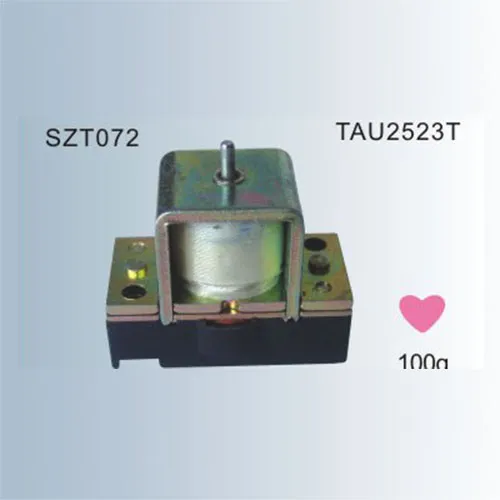

SN00383-CC		DORNIER AIR JET ELECTROMAGNET

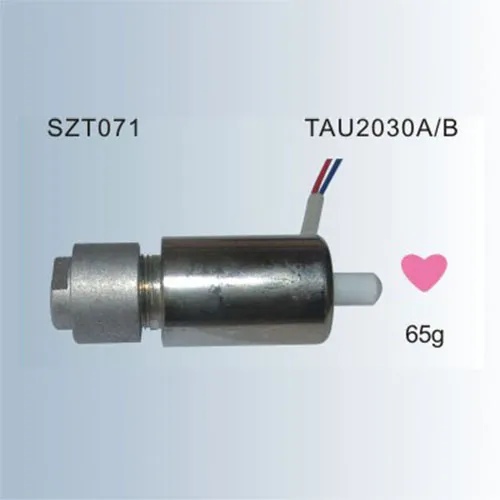

SN00384-CC		DORNIER WEFT SELECTING ELECTROMAGNET

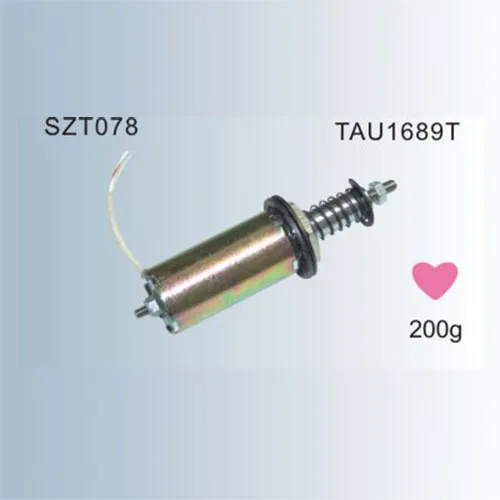

SN00385-CC		KINGTEX WEFT LIFTING ELECTROMAGNET

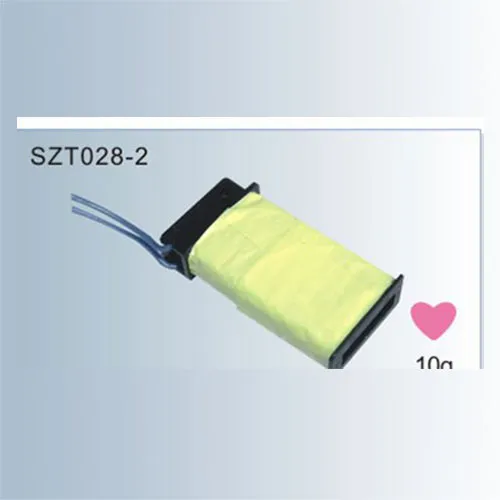

SN00386-CC		PICANOL DAT OMNI OMNIPLUS COLOR SELECTING COIL
SN00133-RH	B73208	PICANOL ELECTROMAGNET

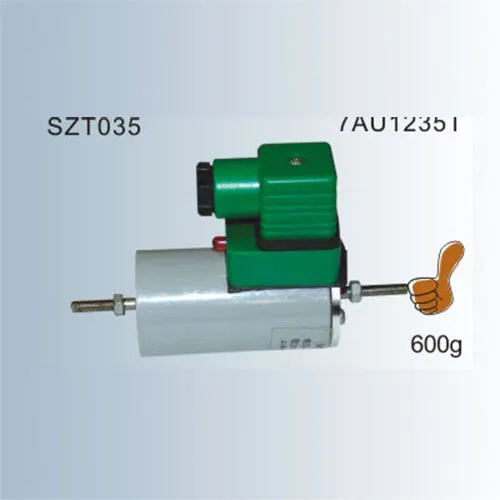

SN00387-CC	BE80285	PICANOL WEFT-LIFTING ELECTROMAGNET

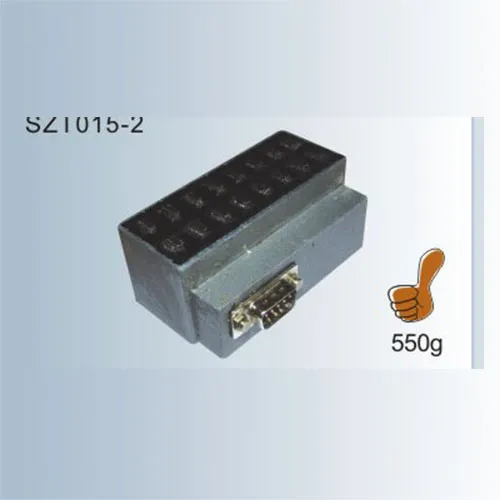

SN00388-CC	PSO291004000	SMIT FAST NUOVO PIGNONE COLOR SELECTING MAGNET

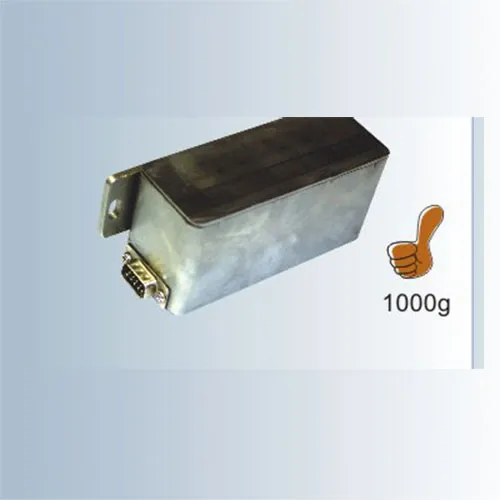

SN00389-CC	PNO33606	SMIT FAST TP500 TP600 SOMET THEMA11E COLOR SELECTING MAGNET

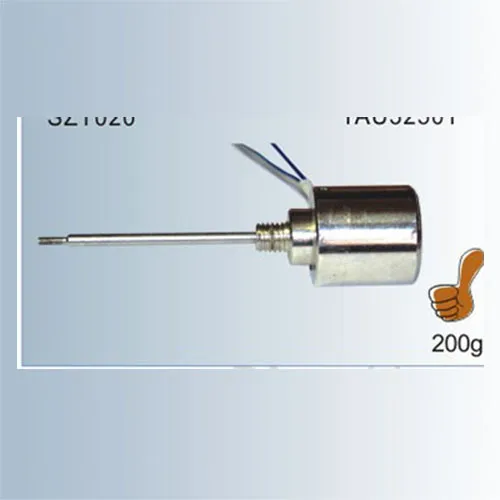

SN00390-CC		SMIT FAST TP500 TP600 WEFT-LIFTING ELECTROMAGNET

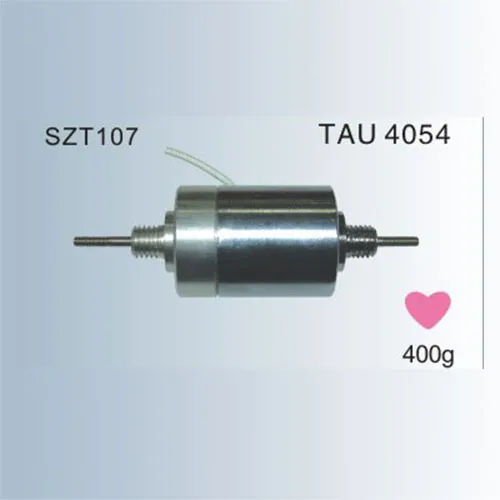

SN00391-CC		SMIT FAST WEFT LIFTING ELECTROMAGNET
SN00134-RH	PQO71514	SMIT GS900 ELECTROMAGNET

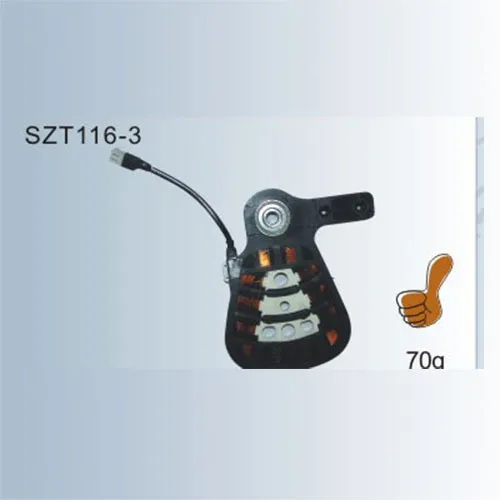

SN00392-CC		SMIT GS900 WEFT SELECTING COIL

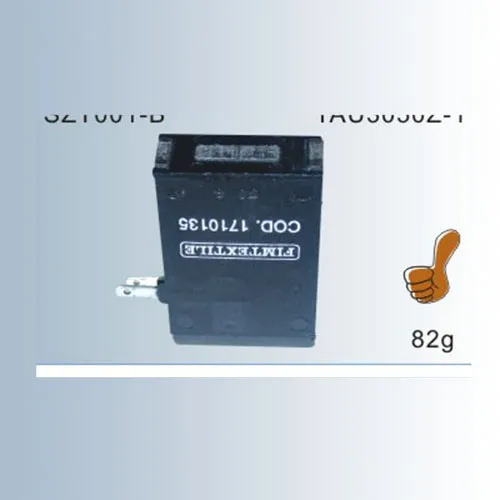

SN00393-CC	1710135 1712235	SMIT ITEMA PANTER FIMTEXTILE DOBBY MAGNET

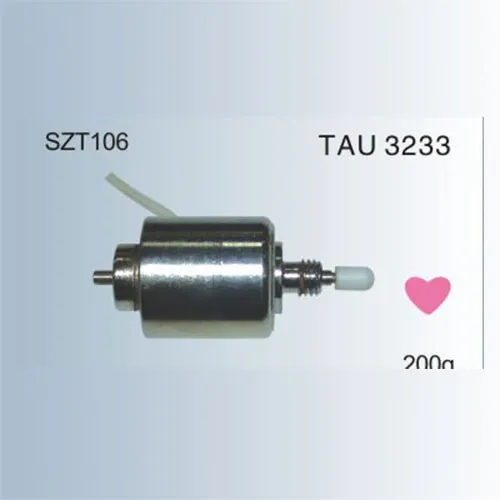

SN00394-CC		SMIT NUOVO PIGNONE TP300 TP400 TP500 WEFT LIFTING ELECTROMAGNET

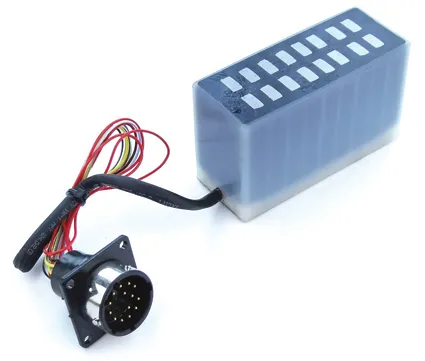

SN00135-RH	A3A027C A3A027B A3A027A A3A055A	SOMET SM92 SM93 COLOR SELECTING ELECTROMAGNET

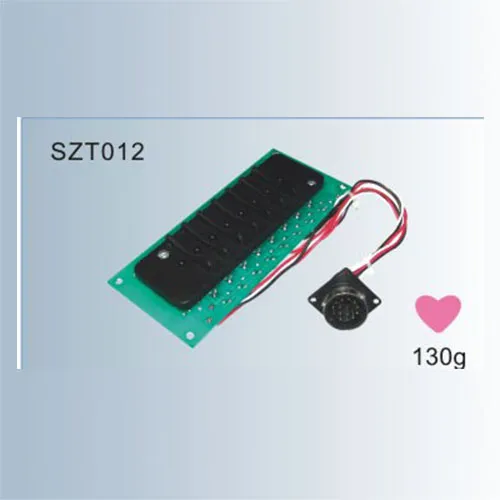

SN00395-CC	A20412A	SOMET SM92 SM93 ELECTRONIC COLOR SELECTING BOARD

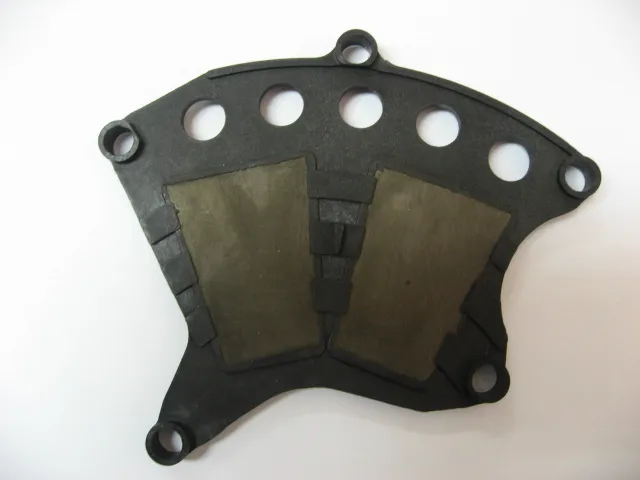

SN00136-RH	BDYF37F BDYF37B A3A027	SOMET THEMA11 COLOR SELECTING SOLENOID
SN00137-RH	BDYF310-B	SOMET THEMA11 COLOR SELECTING SOLENOID

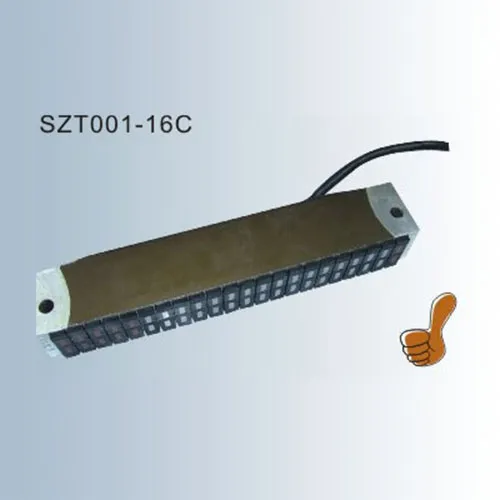

SN00396-CC	F292.464.42	STAUBLI 2622 2670 GT405 DOBBY MAGNET BAR
SN00397-CC	F292.368.04 F292.368.23 F292.464.06 F292.464.20 F292.464.26 F292.464.43 F292.687.07 F292.687.08 F292.687.15 F292.687.33 F393.420.00B F292.464.06 F292.850.12A F292.348.05	STAUBLI 2668 2660 2650 2622 2670 DOBBY

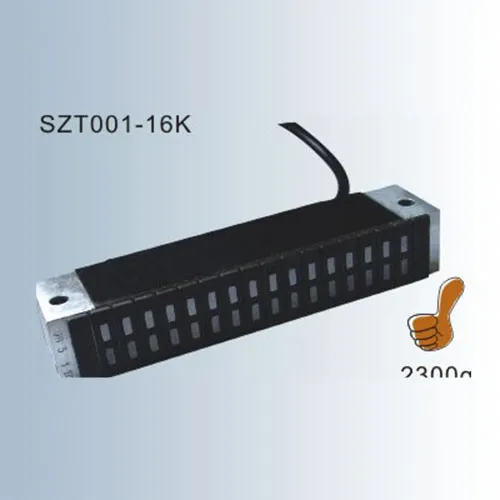

SN00398-CC	F292.687.51 F292.687.18 F292.687.04 F292.396.12 F292.396.15A F292.464.09 F292.727.01A F292.687.29A F292.727.02A F292.464.53B	STAUBLI 2861 2871 DOBBY TOYOTA PICANOL MAGNET BAR

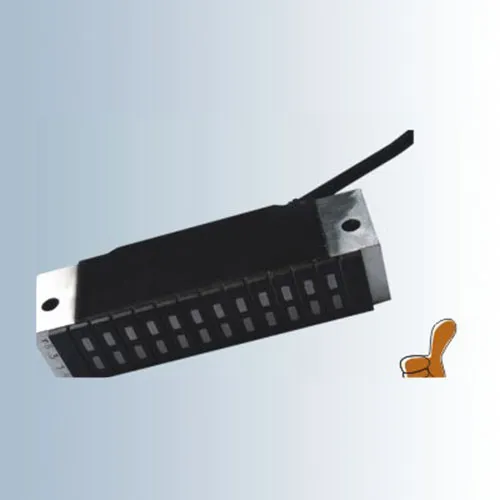

SN00399-CC	F292.464.03 F292.464.05 F292.464.25 F292.464.46 F292.464.63 F292.464.20A F292.368.01	STAUBLI BODDY 2622 2670 2612 MAGNET BAR
SN00211-ZY	F292.687.04 F292.464.24 F29268704 F29246424	STAUBLI DOBBY MAGNET 16 SHAFT

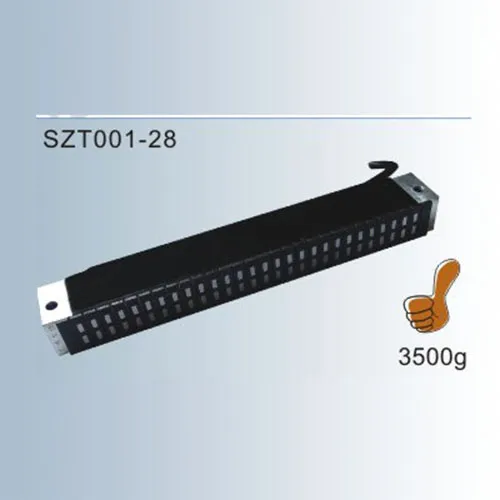

SN00400-CC	F292.464.01 F292.464.02 F292.464.18 F292.464.44 F292.464.45 F292.464.66 F292.687.0 F292.396.06	STAUBLI DOBBY MAGNET BAR

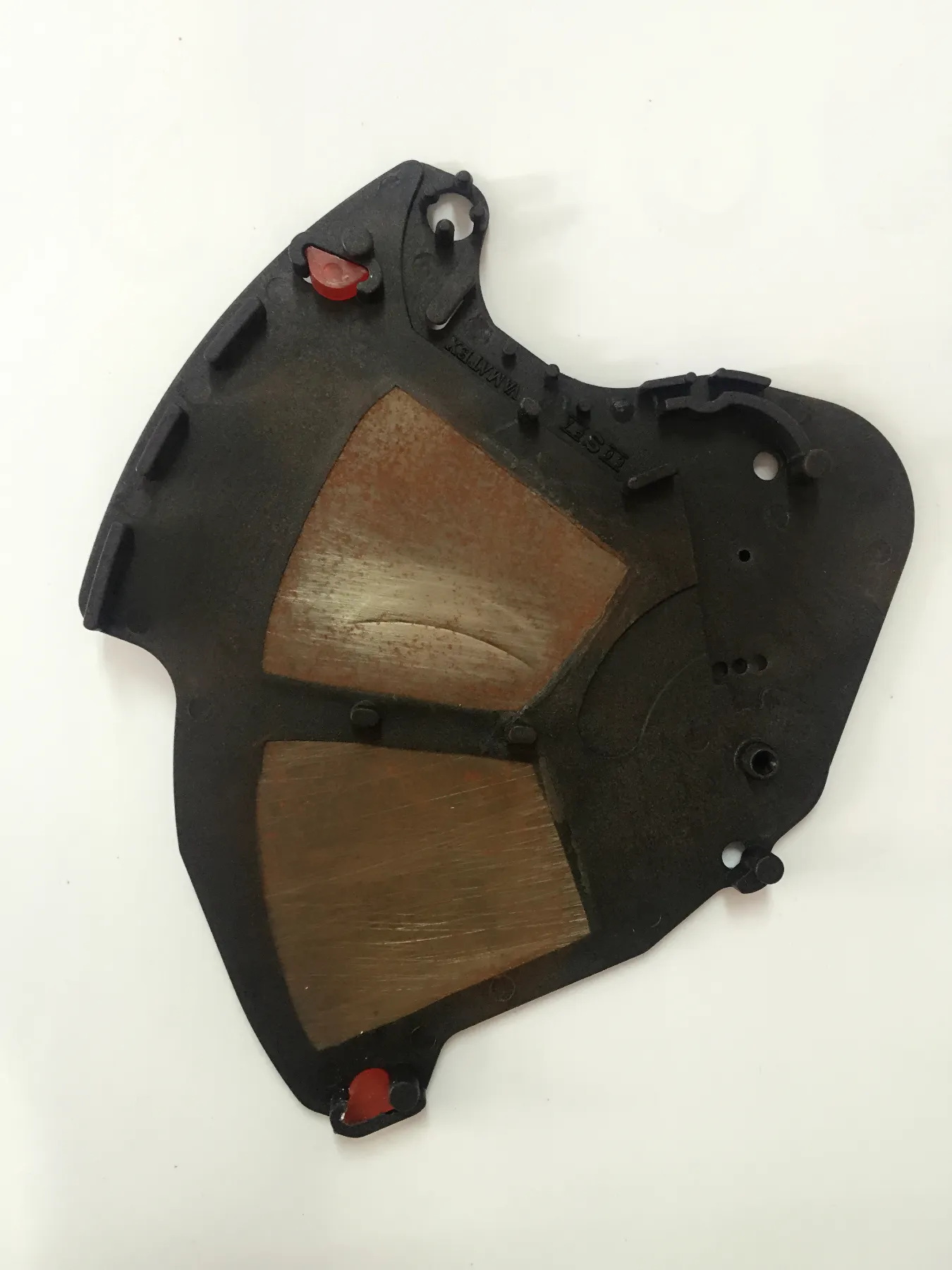

SN00139-RH	2500796	VAMATEX K88 WEFT SELECTING ELECTROMAGNET

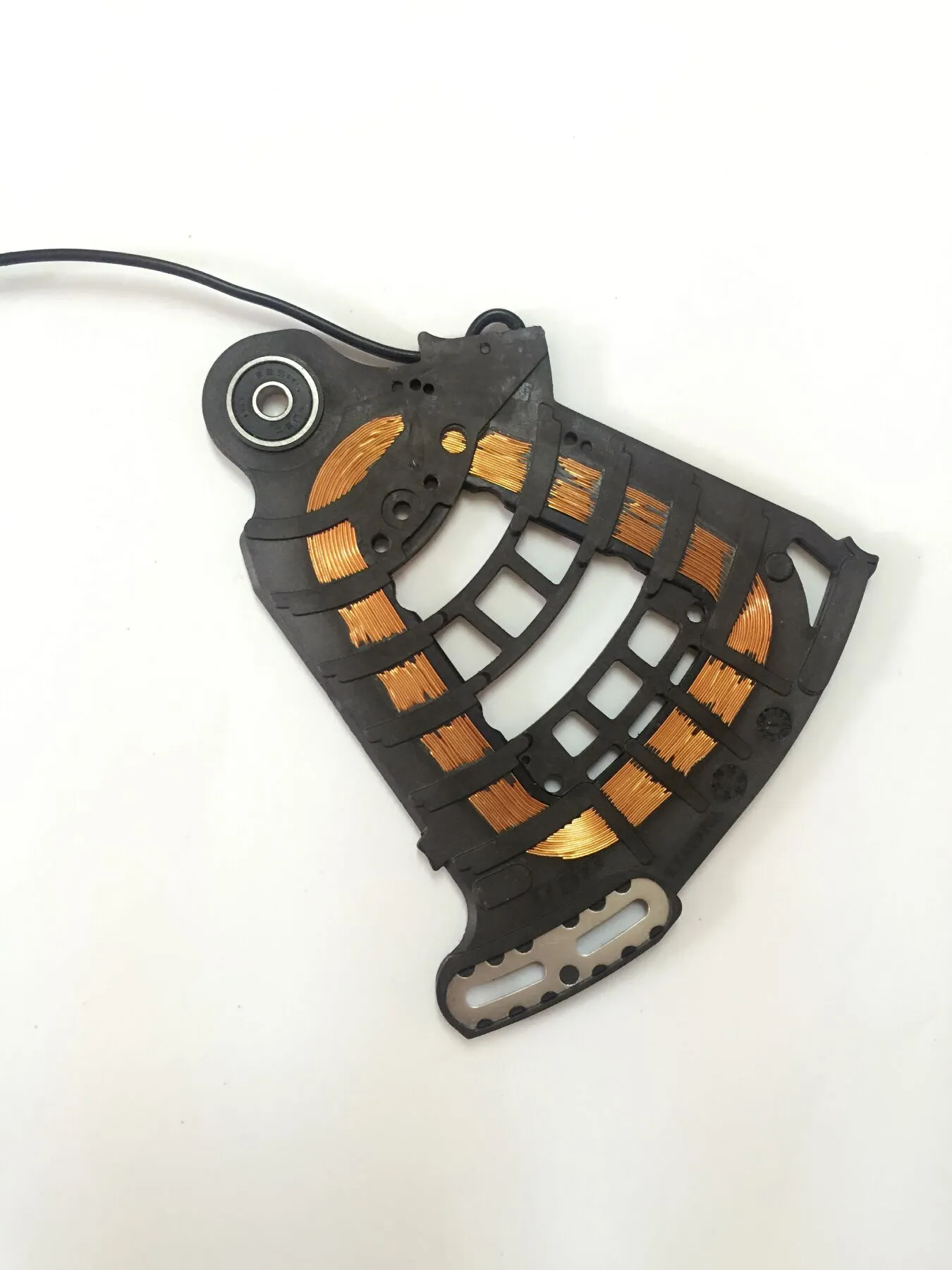

SN00140-RH	2558290	VAMATEX K88 WEFT SELECTING ELECTROMAGNET

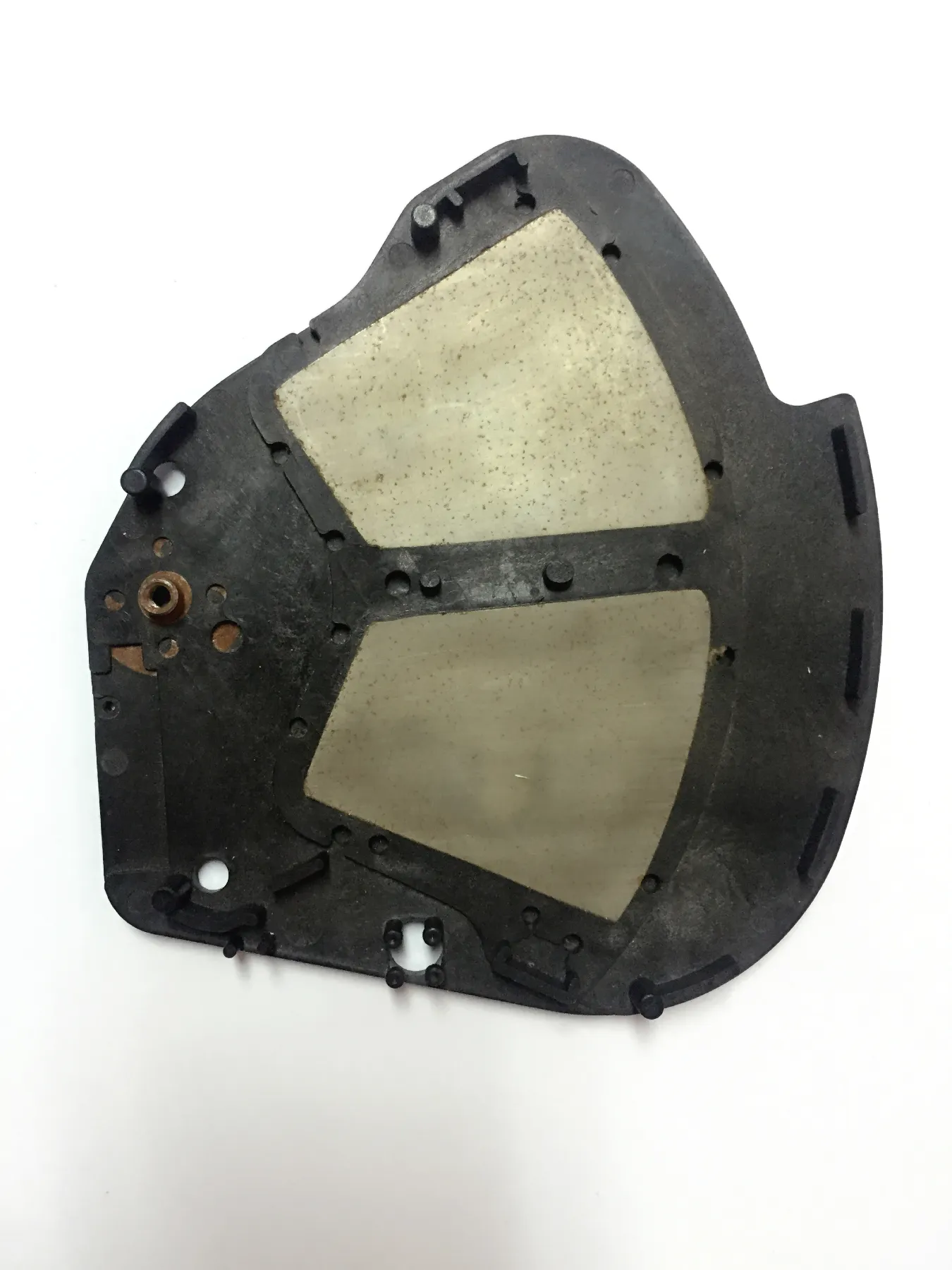

SN00141-RH	2558514	VAMATEX K88 WEFT SELECTING ELECTROMAGNET

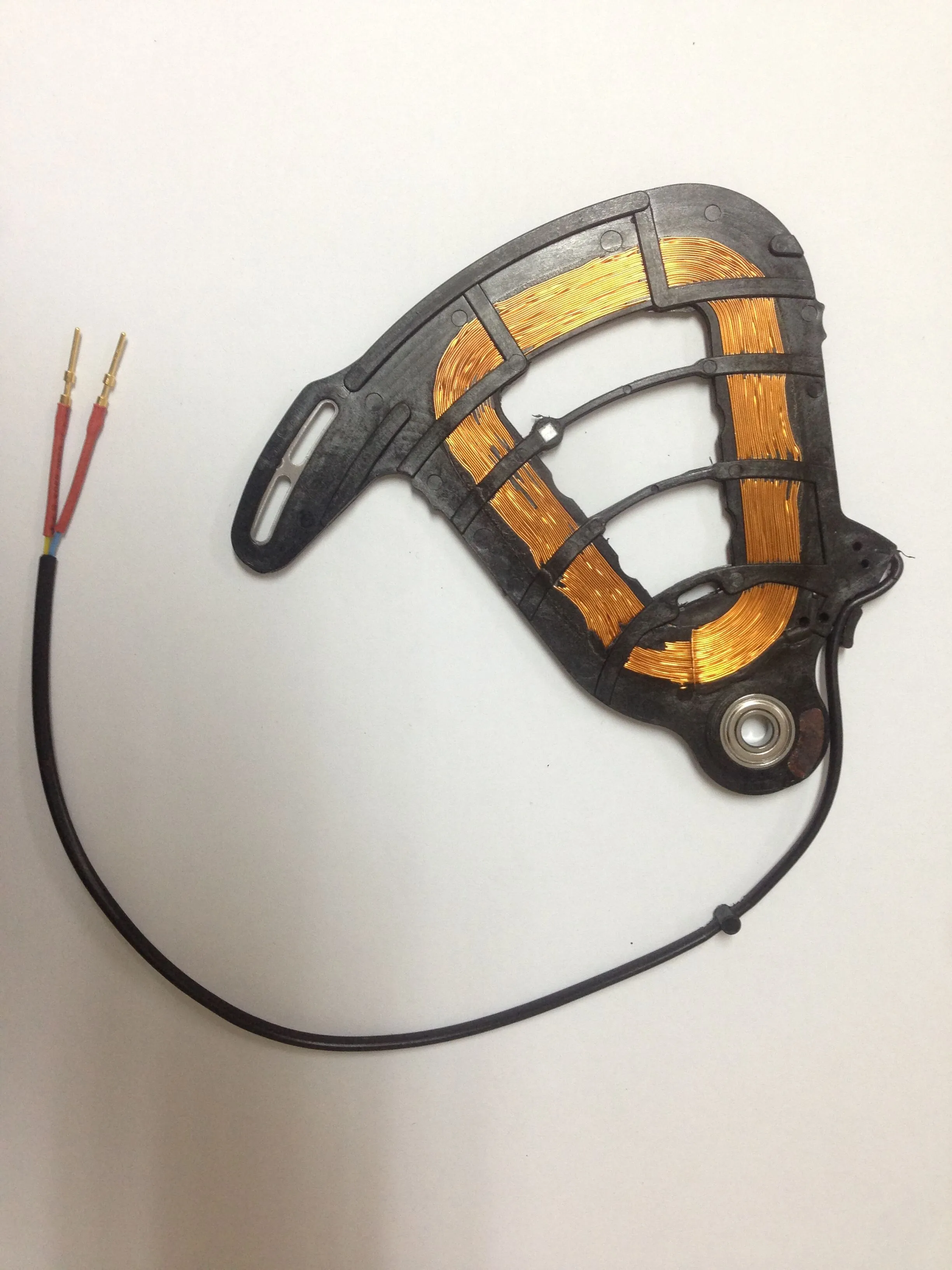

SN00142-RH	2558512	VAMATEX LEONARDO WEFT SELECTING ELECTROMAGNET
SN00401-CC	9340338	VAMATEX LEONARDO WEFT SELECTING ELECTROMAGNET
SN00402-CC		YAMADA GD-50 DOBBY MAGNET BAR
