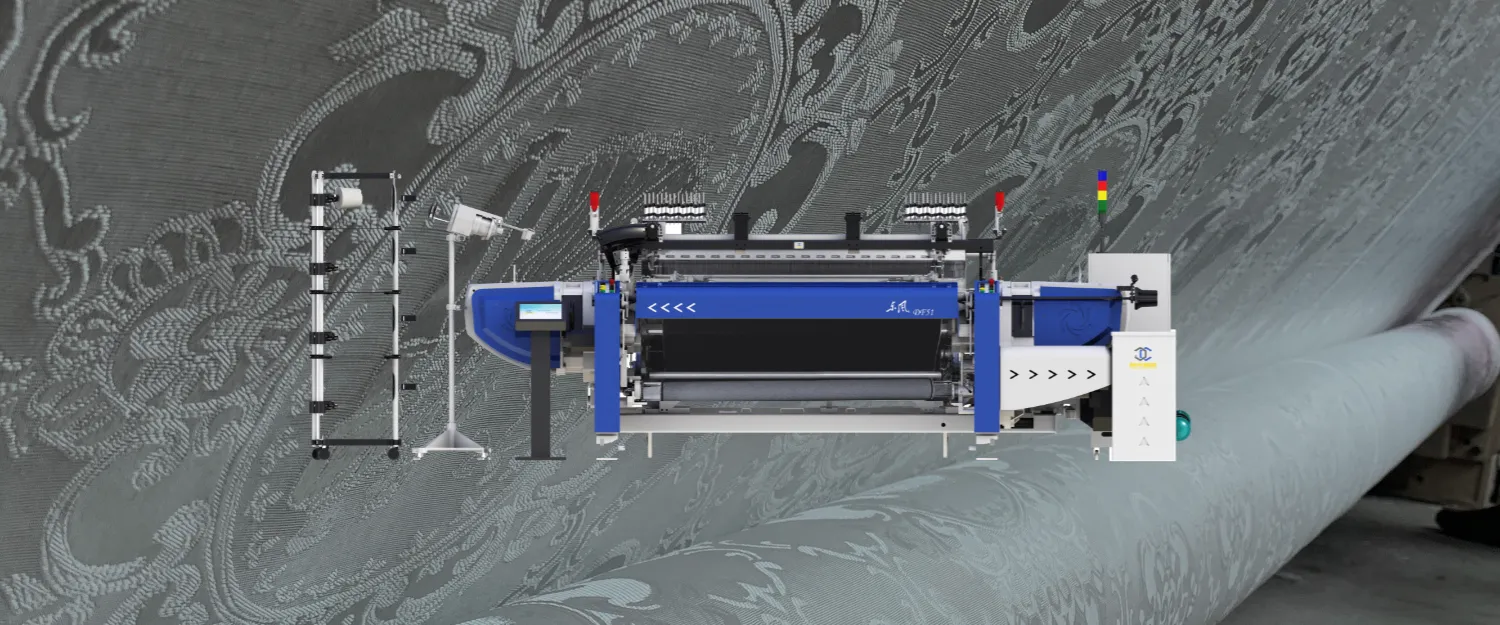

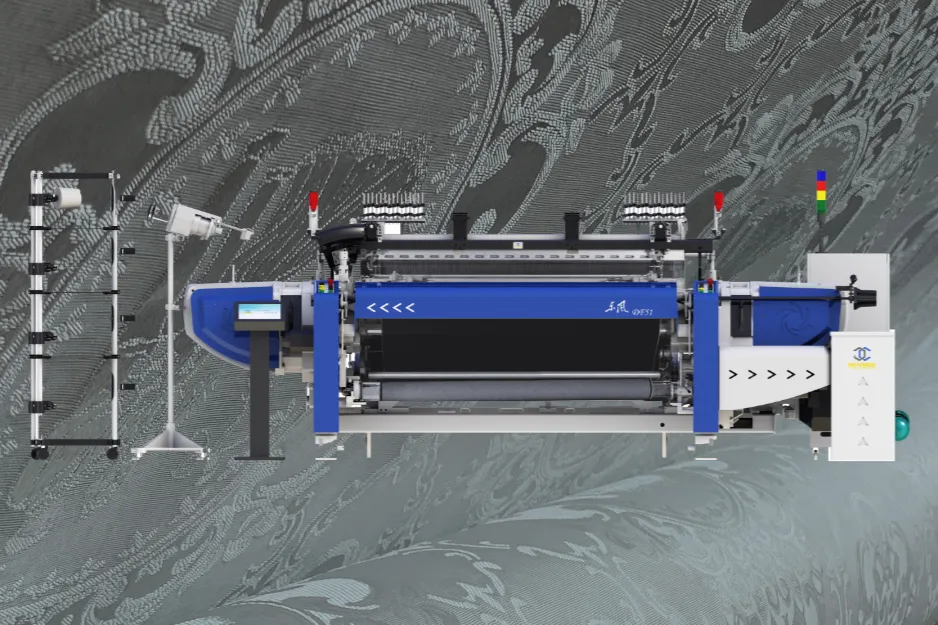

The DF51 represents the top of the line among Chinese-made high-speed rapier looms, combining proven techniques from the world's leading rapier loom manufacturers with our own in-house development. It is built to lead on every metric that matters: weaving speed, fabric style, intelligent control, low operating cost, minimal maintenance and refined appearance.
At a design speed of up to 750rpm, the DF51 sits among the fastest textile weaving machines in the world, driven directly by a super motor for a simpler, more efficient mechanical layout than clutch-based systems.
Key Highlights
• Weft insertion: Suspension guide hook or free-flight methods
• Beat-up: Bilateral conjugate cam, short stroke, strong force
• Lubrication: Closed circulating system with oil warnings
DF51 Rapier Loom
For the production of same quantity fabric, the super-wide width rapier weaving machine occupies less space than normal width looms, The wider width loom is also much more economic in terms of energy ...
Crank type and cam type beat-up system for our wide width machine, to suit light, medium and heavy fabrics.
Due to the relatively low running speed, loom spare parts can be used for longtime without replacement, the maintenance cost is extremely low.
Our special weft insertion system enables the wider-width loom to weave fabric width double than the loom loom, which has only been practiced in shuttle loom before. For example, our 7 meter reed widt...
Except for wider width weaving loom, Sinotextile can also provide weaving machines suitable for PC/PU fiber ribbons, carpets, luggage cover, outdoor mat, velvet, mesh fabric, bamboo fabric and etc. We...
DF51 Rapier Loom
| Width | 4 meters ~ 50 meters (customizable) |
| Operation Speed | 30~120 rpm (depending on width) |
| Yarn Scope | Cotton, polyester, fiberglass, carbon fiber, jute, sisal and etc. |
| Weft Density | 1~50 picks/cm |
| Beat-up System | Crank type and cam type (for light, medium and heavy fabrics) |
| Take Up | Electronic take-up driven by servo motor |
| Let-off | Electronic let-off driven by servo motor |
| Shedding | Electronic dobby or cam shedding |
| Weft Insertion | Flexible rapier with double width weaving capability |
| Special Feature | Double width weaving: 7m reed width can produce 13.5m fabric |
| Application | Carpet, agriculture, military, geotextile industry |
Contact our technical team to discuss your specific requirements and get a customized quote.
