Air jet loom weaving is especially popular with customers producing plain fabrics and high density fabrics. HH810 is designed with the concept of providing superior airjet weaving performance with economical price for our customer. It is the most ideal air jet weaving machine for customers to develop top-grade weaving fabric, improve fabric quality, reduce environment pollution, reduce labor cost and increase economic efficiency.


SALIENT FEATURES Of
HH810 air jet loom

High speed—New weft insertion, new frame structure and high speed CPU ensure the maximum running speed of 1200RPM.

Low energy consumption—New weft insertion and energy saving design of main & auxiliary nozzle realize less air consumption.

Low vibration—Using 3D design and computer analysis to optimize the frame structure including the cross rail connections, and to realize light-weight design and optimum balance of the beating motion. These improvements ensure lower vibration and high stability during high speed operation.

Flexibility and wide applicability—A wide range of standard configuration and a variety of optional parts have enabled the loom to weave fabrics that are mostly woven by rapier looms, including wide home furnishings fabric, tyre cord fabric, electronic glass fabric, fabric of different yarn types and counts, airbags, seersucker and folding edge fabrics.

Easy operation & new Electronics—Relatively lower machine, inhead type temple are both beneficial for the operation; The loom is also equipped with Internet communication technologies, multi-functional control panel with advanced high speed CPU.


DOUBLE BACK ROLLERS

Double back rollers detect and maintain the correct warp tension regardless of the beam diameter size.

NEGATIVE EASING

Negative easing is provided for weaving lightweight fabrics like filament and glass fiber.

DOUBLE BACK ROLLERS
NEGATIVE EASING

POSITIVE EASING

Positive easing is ideal for a wide range of fabrics, particularly heavy and high density fabrics. It also offers consistent synchronized movement during high speed operation.

DOUBLE BEAM(UPPER & LOWER)

Independent servomotors for the upper and lower beams are provided for weaving fabrics with different types of warp yarn.

POSITIVE EASING
DOUBLE BEAM(UPPER & LOWER)

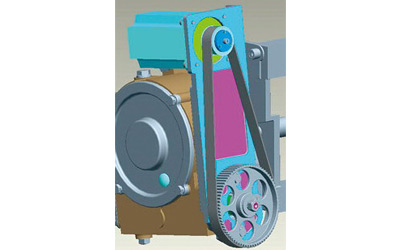

ELECTRONIC TAKE-UP

Weft density settings can be entered from the function panel(single pick density type). This system can also change weft density during loom operation(multiple pick density type)

ELECTRONIC TAKE-UP

Weft density settings can be entered from the function panel(single pick density type). This system can also change weft density during loom operation(multiple pick density type)

ELECTRONIC TAKE-UP
ELECTRONIC TAKE-UP

NEGATIVE CAM SHEDDING, MAXIMUM 8 SHAFTS

We have successfully developed a high-performance solenoid valve with a smaller size and quicker response, which eliminates waste in air consumption and can support short-pitch sub nozzles. The 65mm short-pitch nozzles ensure the successful weft insertion even at low pressure.

NEGATIVE CAM SHEDDING, MAXIMUM 8 SHAFTS

CRANK SHEDDING, MAXIMUM 4 SHAFTS

It is ideal for high quality plain structure fabric.

DOBBY SHEDDING, MAXIMUM 16 SHAFTS

It can weave plain, twill, satin and high value-added jacquard fabrics.

CRANK SHEDDING, MAXIMUM 4 SHAFTS
DOBBY SHEDDING, MAXIMUM 16 SHAFTS

POSITIVE CAM SHEDDING, MAXIMUM 8 SHAFTS

It is suitable for weaving plain, twill and satin fabrics, especially good for high-density fabric and wide fabric.

JACQUARD SHEDDING

Suitable for all kinds of jacquard fabrics.

POSITIVE CAM SHEDDING, MAXIMUM 8 SHAFTS
JACQUARD SHEDDING

HH810 air jet loom

TECHNICAL SPECS Of
HH810 air jet loom

Item Specification Optional configuration
Reed space Norminal width(cm) 150, 170, 190, 210, 230, 250, 280, 340, 360
Effective reed width 0~60cm reduction from norminal width(150~250cm)
0~80cm reduction from norminal width(above 280m)
Yarn range Staple fiber: Ne100~Ne2.5
Fliament: 56dtex~1350dtex
Weft filling selection 1-color or 2-colors mixing, 4 colors, 6 colors
Drive rush-starter motor direct drive Independent variable frequency
Push-button operation with both hands
Power rating 2.7KW, 3.0KW, 3.7KW, 6.5KW
Weft insertion

Main and sub-nozzle combined system,
profile reed, auxiliary main nozzle

Stratch nozzle, WBS weft insertion break,

FIC weft insertion fuzzy control, main nozzle gripper

New solenoid valve with built-in manifolds
Independent sub-nozzle
timing control by color
AJC auto control, first pick control
Shedding Crank plain shedding with 4 shafts
Positive cam shedding with maximum 8 shafts
Negative cam shedding with maximum 8 shafts
Dobby shedding(electronic, positive, underneath type)
with maximum 16 shafts
Electronic jacquard shedding
Let off Electronic let-off(ELO), with kickback function
Double beam
Negative easing
Positive easing
Beam diameter 800mm, 914mm, 1000mm
Take up Electronic take up(ETU) Automatic density change function(8 densities)
Maximum on-loom cloth roller diameter 600mm(cam, dobby, electronic jacquard shedding)
520(crank shedding)
Pick density 5.9~118.1 picks/cm
Woven length counter Display on screen(meter/yarn), with preset counter function
Temple cylinder Top-mounted type(inclined cloth passage toward loom front) Low mounted type
Beating Crank type beating, multiple sley beating mechanism
4 links(reed width below 230cm)
6 links(reed width above 250cm)
Intermediate rocking-shaft supporter, rocking balancer
Measuring & storage brushless DC motor weft accumulator Balloon breaker
Weft filling stand Floor mounted for 4 packages(2 colors),

floor mounted for 8 packages(4 colors)

Floor mounted for 10 packages(6 colors)
Selvage Planetary gear motion mechanical tuck-in device(left & right, middle)
air control tuck-in device(left & right, middle)
Waste remove Catch cord type(3-roll type), catch cord type(gear type)
Weft cutting Mechanical cutter Electronic cutter
Lubrication Oil bath system for main driving parts,
centralized lubrication(manual greasing)
Automatic greasing
Stop motion Weft yarn breakage Reflective weft feeler
one head system, two head system
Warp yarn breakage Electrical 6-row contact bar system Rotary sensor
Others Stop motion for selvage and catch cord yarn
Stop reason indication indication by message on screen
4 color multi-function indication lamps
Automation Data setting, automatic control,
monitoring, self-diagnosis function
Picking finding Automatic pick finder
Slow inching by inverter(forward, reverse)
Others Network application
Special Selvage jacquard

<
