Sino Textile Machinery

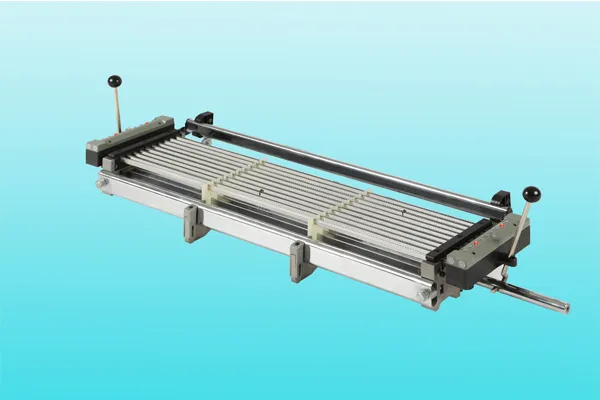

Warp Stop Motion

Our Customers can purchase from us various specifications of warp stop motions used in shuttle-less looms. The warp stop motions offer to prevent damage in fabric due to entanglement of warp yarn breakage with longer service life, corrosion resistance, accurate dimensions and reliability. The products can be installed easily and require less maintenance.

We provide warp stop motions with easy installation and less maintenance, for various weaving equipments including rapier looms and air jet looms. We also provide warp stop motion spare parts including contact bars, guide support, menopause holder, electrical boxes and other accessories.

CXTX-CSCX-8
CXTX-CSCX-6
CXTX-CSCX-8
CXTX-CSCX-6


These LED electronic display warp stop motion is our most updated product series with the features of strengthened beams and electric box with display function. We provide warp stop motions with 6 and 8 contact bars at customer’s choice. It is suitable for air jet looms and rapier looms like Tsudakoma, Toyota, Itema, Picanol, and Chinese loom brands.

CXT-CX-10
 CXT2X-CX-10
CXT-CX-10
CXT2X-CX-10

These warp stop motions are equipped with 10 contact bars, suitable for weaving high density and superfine fabrics. The tubes are strengthened to reduce vibration and improve fabric quality. Display function can be added to accelerate detection of warp stop and improve working efficiency. It is suitable for Itema, Picanol and other high density fabric weaving machines.

CXT-TM11-8
CXT2X-TM11-8
CXT-TM11-8
CXT2X-TM11-8

These series are specially designed for weaving fabrics like silk. The adoption of duratect on the surface and high strength screw ensure a longer working endurance. The warp stop motion is equipped with 8 contact bars and optional display function is also available for customers to choose. These products are excellent for weaving fine yarn fabrics.

CXT-TM11-6
 CXT2X-TM11-6
CXT-TM11-6
CXT2X-TM11-6

Manufactured utilizing first-class raw material and 8.8 grade & 12.9 grade screws, these warp stop motions have excellent performance. They are suitable for weaving blended fabric, woolen fabric and etc, applicable to all kinds of Europe imported and Chinese rapier looms. Optional display function is also available.


CXT-FAST-6

CXT-FAST-6

This model is simply in structure and easy to install, suitable for weaving blended fabric, woolen fabric and similar fabrics.

CXTX-JAT600-6

CXTX-JAT600-6

This model warp stop motion is applicable to Toyota air jet looms.

CXT-ZA205-6
CXTX-ZA205-6
CXT-ZA205-6
CXTX-ZA205-6

This model warp stop motion is applicable to Tsudakoma air jet looms, optional display function available.

CXT-P7100-6

CXT-P7100-6


This model is specially designed to meet the weaving needs for industrial fabrics including wire cloth, screen cloth, conveyer belt and other high strength fiberglass fabrics, applicable to Sulzer projectile looms and etc.

CXT-V7M(D)-2A(for ground warp)
CXT-V7M(M)-2A(for up warp)
CXT-V7M(D)-2A(for ground warp)
CXT-V7M(M)-2A(for up warp)

These ground warp and up warp stop motions are the first choice for domestic and overseas towel loom manufacturers, applicable to Picanol, Rifa, Kingtex, Wanli, Somet and etc.

CXT-GA733

CXT-GA733


Broadly applied to weaving looms from Picanol, Kingtex, Rifa, Wanli, Youjia and other famous manufacturers, this model is economical in price and excellent in performance.

SINOTEX NO. Code NO. Product Name
SN03614-WZ J5A152A BUTTON FOR WARP STOP MOTION
SN03615-WZ 2558022 C401 PLASTIC PLATE FOR WARP STOP BAR
SN03616-WZ 2680224 C401 SUPPOR FOR WARP DIVIDING ROD GUIDE
SN03617-WZ 2536070 C401 SUPPORT FOR WARP STOP BAR
SN03618-WZ 2636002 C401 WARP DIVIDING ROD GUIDE
SN03619-WZ 2580370 C401 WARP DIVIDING ROD GUIDE BRACKET
SN03620-WZ 2558092/2548202/2548122 C401 WARP STOP MOTION MIDDLE SUPPORTOR
SN03621-WZ 439008 C401/P1001 NUT FOR WARP STOP BAR
SN03622-WZ 2636022 C401/S WARP DIVIDING ROD GUIDE
SN03623-WZ K3A455A DELTA PRESSER FOR WARP STOP BAR
SN03624-WZ B152162 DELTA WARP DIVIDING ROD GUIDE
SN03625-WZ F.292.687.51/F29268751 ELECTROMAGNET (16)
SN03626-WZ PNM72111/PNM72110 FAST SUPPORT FOR WARP STOP FRAME
SN03627-WZ PNM71993 FAST SUPPORT OF WARP DIVIDING ROD
SN03628-WZ PNM71842 FAST SUPPORT OF WARP STOP BAR
SN03629-WZ B260320 GAMMA PRESS FOOT OF WARP DIVIDING ROD GUIDE
SN03630-WZ GRB400727 GAMMA WARP DEVIDE ROD GUIDE
SN03631-WZ B259318/BA259318/GROB259318 GAMMA WARP DIVIDING ROD GUIDE
SN03632-WZ A1501177000 GAMMA WARP STOP MOTION SEAT
SN03633-WZ B259325/BA259325/GROB259325 GAMMA98/OMNI PLUS WARP DIVIDING ROD GUIDE
SN03634-WZ J4225-03030-00 JAT600 SUPPORT OF WARP DIVIDING ROD GUIDE
SN03635-WZ J4230-10010-0A JAT600 SUPPORT OF WARP DIVIDING ROD GUIDE
SN03636-WZ J4230-11020-00 JAT600 WARP DIVIDING ROD GUIDE
SN03637-WZ J4235-03010-00/JB741-17199-0Z JAT600 WARP DIVIDING ROD GUIDE BRACKET
SN03638-WZ J4235-04011-00/JB741-17299-BZ JAT600 WARP DIVIDING ROD GUIDE BRACKET
SN03639-WZ GROB8260320 OMNI PLUS CAP OF DROP WIRE B
SN03640-WZ GRB400760 OMNI PLUS WARP DEVIDING ROD SUPPORT
SN03641-WZ GRB400728 OMNI PLUS800 WARP DEVIDING ROD GUIDE
SN03642-WZ GRB400729 OMNI PLUS800 WARP DEVIDING ROD GUIDE
SN03643-WZ GROB259317/BA259317 OMNI WARP DEVIDING ROD GUIDE SUPPORT
SN03644-WZ KBA832A OMNI WARP STOP BARS SUPPORT
SN03645-WZ B207342 OMNI/OMNI PLUS CAP FOR DROPE WIRRE STOP BRACKET
SN03646-WZ K3A832A OMNI/OMNI PLUS DROP WIRE FRAME BRACKET
SN03647-WZ K3A602A OMNI/OMNI PLUS WARP DIVIDING ROD GUIDE
SN03648-WZ 2790596 P401,P1001 WARP STOP BAR
SN03649-WZ B60024 PAT-A PRESSER FOR WARP DEVIDING ROD
SN03650-WZ B60015 PAT-A SUPPORT OF WARP STOP BAR
SN03651-WZ BE99482 PAT-A WARP DIVITION ROD SUPPORT
SN03652-WZ GROB259565 PICANIL PRESSER FOR WARP STOP MOTION
SN03653-WZ BA301274 PICANOL BRACKET FOR WARP STOP WIRE
SN03654-WZ TT049058 PICANOL BUTTON
SN03655-WZ B332382 PICANOL DIVIDING ROD GUIDE
SN03656-WZ BK3A601A/B161396 PICANOL DIVIDING ROD GUIDE
SN03657-WZ BE89833 PICANOL PLATE OF WARP STOP
SN03658-WZ B266108 PICANOL PRESSER OF WARP STOP BAR
SN03659-WZ K3A456A PICANOL PRESSING PLATE FOR DROP WIRE BAR
SN03660-WZ B159332 PICANOL SHORT WARP STOP BAR
SN03661-WZ BA204823/BA204822 PICANOL SIPPORTER FOR WAR STOP MOTION
SN03662-WZ BA259325/GROB259325 PICANOL WARP DEVIDE ROD GUIDE
SN03663-WZ B51997 PICANOL WARP DEVIDING ROD GUIDE
SN03664-WZ B152163 PICANOL WARP DIVIDING ROD GUIDE
SN03665-WZ B207341 PICANOL WARP DIVIDING ROD GUIDE BRACKET
SN03666-WZ B90724 PICANOL WARP STOP MOTION FOR 190CM
SN03667-WZ B333429 PICANOL WARP STOP MOTION SUPPORTOR
SN03668-WZ B152168 PICANOL WARP STOP STEEL
SN03669-WZ B51754 PICANOL WARP SUPPORT BAR
SN03670-WZ J6AF57A SM93 INSERT BAR FOR WARP STOP
SN03671-WZ K3A316A SM93 SUPPORT FOR WARP DIVIDING ROD GUIDE
SN03672-WZ J3AF66A SOMET SWITCH FOR WARP STOP MOTION
SN03673-WZ GROB264266 SOMET WARP DIVIDING ROD GUIDE
SN03674-WZ K6A324A SOMET WARP DIVIDING ROD GUIDE
SN03675-WZ HMQ013A SOMET WARP STOP MOTION PART
SN03676-WZ 911307438/911 307 438 SULZER DIVIDING ROD GUIDE T=26MM P7100
SN03677-WZ 911107273/911 107 273 SULZER DIVIDING ROD GUIDET=18MM PU
SN03678-WZ 911107264/911 107 264 SULZER LINING FOR WARP STOP MOTION
SN03679-WZ 911307362/911 307 362 SULZER STOP WARP INSPECTOR
SN03680-WZ 911307449/911 307 449 SULZER SULZER DIVIDING ROD GUIDET=18MM P7100
SN03681-WZ 911307332/911 307 332 SULZER SULZER WARP DIVIDING ROD GUIDE
SN03682-WZ 911165163/911 165 163 SULZER SUPPORT FOR WARP DIVIDING ROD GUIDE
SN03683-WZ 930102503/930 102 503 SULZER SWITCH FOR WARP STOP DETECTOR
SN03684-WZ 911307331/911 307 331 SULZER WARP DIVIDING ROD GUIDE
SN03685-WZ 911307511/911 307 511 SULZER WARP DIVIDING ROD GUIDE
SN03686-WZ 911107275/911 107 275 SULZER WARP DIVIDING ROD GUIDE T=18MM
SN03687-WZ 911107290/911 107 290 SULZER WARP DIVIDING ROD GUIDE T=18MM
SN03688-WZ 911107269/911 107 269 SULZER WARP DIVIDING ROD GUIDE T=26MM
SN03689-WZ 911107287/911 107 287 SULZER WARP DIVIDING ROD GUIDE T=26MM
SN03690-WZ 2727317 SWITCH FOR WARP STOPING BAR
SN03691-WZ J6A245A THEMA11E WARP DEVIDING ROD GUIDE
SN03692-WZ J3A251A THEMA11E WARP DIVIDING ROD GUIDE BRACKET
SN03693-WZ J6245A THEMA11E WARP DIVIDING ROD GUIDE BRACKET
SN03694-WZ J4240-85020-00 TOYOTA ASSY CONNECTING PART HOLDER
SN03695-WZ J4240-20020-00 TOYOTA COVER-COMPL.CONNECTING PART
SN03696-WZ J4230-11030-0A TOYOTA WARP DIVIDING ROD GUIDE
SN03697-WZ PBO75694 TP500 DROP WIRE BAR SUPPORT
SN03698-WZ 639349 TSUDAKOMA WARP DIVIDING ROD GUIDE BRACKET
SN03699-WZ 639350B TSUDAKOMA ZA203 WARP DIVIDIN ROD GUIDE
SN03700-WZ 2740650 VAMATEX HORIZONTAL ROD FOR WARP STOP FRAME
SN03701-WZ 2110070 VAMATEX SCREW OF WARP STOP BAR
SN03702-WZ 2587370 VAMATEX SUPPORT FOR WARP STOP
SN03703-WZ 2526194/2526196 VAMATEX SUPPORT OF WARP STOP FRAME
SN03704-WZ RSP04220 ZA203 SUPPORT OF WARP DIVIDING ROD GUIDE
SN03705-WZ RSP04221 ZA203 WARP DIVIDING ROD GUIDE
