The guide hook, or rapier guide hook, is a key part of the weft insertion mechanism on rapier looms. Mounted at intervals across the loom width, it guides the flexible rapier tape along its path during weft transfer, keeping the tape properly aligned as it moves through the shed.
Each guide hook is manufactured in-house from high-quality raw materials using advanced production techniques, then tested and inspected to ensure smooth, reliable performance. Custom designs, finishes, and sizes are available, all offered at market-leading prices.
We also supply parts for free-flight weft insertion conversion, a modern alternative to the traditional guide hook method used on many rapier looms.
Key Highlights
Function: Guides flexible rapier tape through the shed during weft transfer
Options: Custom designs, finishes, and sizes available
Benefits: Anti-corrosion, optimal finish, easy installation, rugged design
Free-Flight Conversion: Reduces friction, warp breakage, and fabric fuzzing

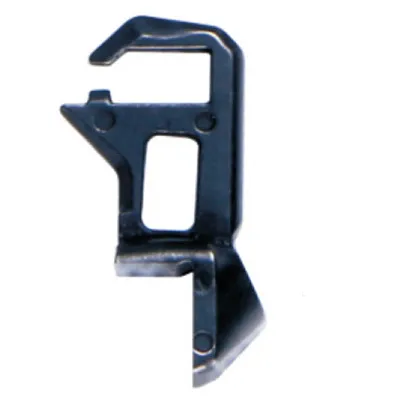

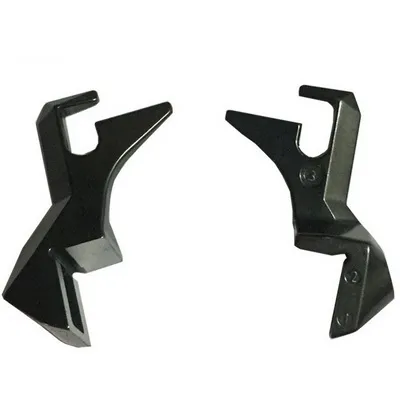

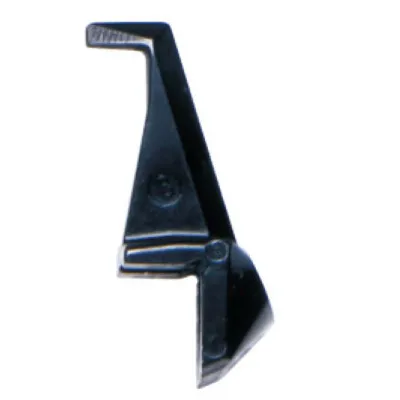

Guide Hook
Guide Hook
| SINOTEX NO. | ORIGINAL CODE | NAME & DESCRIPTION |
| SN01795-WZ | 2523018/2523078 | C401/P401 TAPE GUIDE HOOK |
| SN01796-WZ | BA219548 | CARBON SUPPORT FOR TAPE RH L=391 |
| SN01797-WZ | BA208636 | GAMMA TAPE GUIDE GAMMA2002/99 |
| SN01798-WZ | BA217688 | GAMMA TAPE GUIDE GAMMA2002/99 |
| SN01799-WZ | BA211812 | GAMMA TAPE GUIDER |
| SN01800-WZ | BA2076876 | GAMMA TAPE GUIDER ON SLAY |
| SN01801-WZ | BA213945 | GAMMA2000 SHORT TAPE GUIDER |
| SN01802-WZ | BA217572/BA215575 | GAMMA2002 GAMMA2000 RIGHT RAIL |
| SN01803-WZ | B85176 | GTM 190 TAPE GUIDE |
| SN01804-WZ | B85179 | GTM 190 TAPE GUIDE |
| SN01805-WZ | B87908/B84847 | GTM TAPE GUIDE |
| SN01806-WZ | B53324 | GTMAS ALLUMINUM RAIL ASSY |
| SN01807-WZ | B54052 | GTMAS TAPE GUIDE |
| SN01808-WZ | 2727510/2727516 | K88 GUIDE RAIL 100MM/140MM |
| SN01809-WZ | 2727515/2727521 | K88 GUIDE RAIL 180MM/830MM |
| SN01810-WZ | 2727518/2727519/2727520 | K88 GUIDE RAIL 430MM、530MM/680 |
| SN01811-WZ | 2727509 | K88 GUIDE RAIL 50MM |
| SN01812-WZ | 2110906 | LEONARDO/K88 TAPE GUIDE |
| SN01813-WZ | 179631749 | MULLER III TAPE GUIDE |
| SN01814-WZ | 179631749 | MULLER III TAPE GUIDE |
| SN01815-WZ | 179631750 | MULLER TAPE GUIDE BIG |
| SN01816-WZ | 179631750 | MULLER TAPE GUIDE SMALL |
| SN01817-WZ | 2523074 | P1001 TAPE GUIDE |
| SN01818-WZ | 2536272 | P1001 TAPE GUIDE HOOK |
| SN01819-WZ | 2523078 | P401 TAPE GUIDE |
| SN01820-WZ | 2523124 | P401,P1001 TAPE GUIDE |
| SN01821-WZ | 3803019 | PANTER TAPE GUIDE |
| SN01822-WZ | B88755 | PICABOL GUIDE RAIL |
| SN01823-WZ | BA222322 | PICANOL GAMMA TAPE GUIDE HOOK |
| SN01824-WZ | BA221838 | PICANOL GAMMAFF LEFT TAPE GUIDE |
| SN01825-WZ | BA221837 | PICANOL GAMMAFF RIGHT TAPE GUIDE |
| SN01826-WZ | B54668/B52851 | PICANOL GTX GUIDE RAIL TAPE WIDTH 24MM |
| SN01827-WZ | B54668/B87732 | PICANOL GUIDE RAIL |
| SN01828-WZ | B54802 | PICANOL GUIDE RAIL |
| SN01829-WZ | B88314 | PICANOL GUIDE RAIL |
| SN01830-WZ | B88315 | PICANOL GUIDE RAIL |
| SN01831-WZ | B88320 | PICANOL GUIDE RAIL |
| SN01832-WZ | BA210281 | PICANOL GUIDE RAIL |
| SN01833-WZ | B54799 | PICANOL GUIDE RAIL |
| SN01834-WZ | BA210760/BA211813 | PICANOL LEFT RAIL GUIDE |
| SN01835-WZ | BA207708 | PICANOL LEFT TAPE GUIDER |
| SN01836-WZ | BE300519 | PICANOL RAIL |
| SN01837-WZ | BA205598 | PICANOL RAIL COMPENSATE |
| SN01838-WZ | BA207707 | PICANOL RIGHT TAPE GUIDER |
| SN01839-WZ | BA216006 | PICANOL RIGHT TAPE GUIDER |
| SN01840-WZ | B54051 | PICANOL TAPE GUIDE |
| SN01841-WZ | BA208179 | PICANOL TAPE GUIDE |
| SN01842-WZ | BA218791 | PICANOL TAPE GUIDE 2 |
| SN01843-WZ | EH3101B/EH31010B | SM93 TAPE GUIDE |
| SN01844-WZ | EDZ038C | SM93 TAPE GUIDE L200MM |
| SN01845-WZ | EDB054C | SM93 TAPE GUIDE L280MM |
| SN01846-WZ | EDB055C | SM93 TAPE GUIDE L280MM |
| SN01847-WZ | EA40070 | SM93 TAPE GUIDE L50MM |
| SN01848-WZ | EDZ039C | SM93 TAPE GUIDE L550MM |
| SN01849-WZ | HSD004B | SM93 THEMA11 TAPE GUIDE |
| SN01850-WZ | EH3122A | SM93/TM11E SCREW SET FOR TAPE GUIDE HOOK |
| SN01851-WZ | EDB056C | SM93TAPE GUIDE L450MM |
| SN01852-WZ | HDZ060A | SOMET TAPE GUIDE 30MM |
| SN01853-WZ | HA4036A | SOMET TAPE GUIDE L75MM |
| SN01854-WZ | B88321 | TAPE GUIDE |
| SN01855-WZ | PQZ33657 | TAPE GUIDE HOLDER |
| SN01856-WZ | 5ED2039BL550/Z120161 | THEMA11/SM93 TAPE GUIDE |
| SN01857-WZ | HQ5044B | THEMA11E ALUMINUM TAPE GUIDE |
| SN01858-WZ | HN7199A | THEMA11E CLAMP FOR RAIL |
| SN01859-WZ | HA4039A | THEMA11E FIXED TAPE GUIDE |
| SN01860-WZ | HDB024A | THEMA11E PRESSER FOR TAPE GUIDE |
| SN01861-WZ | A1A217A | THEMA11E RAIL ASSY |
| SN01862-WZ | AIA708A/A1A708A | THEMA11E TAPE GUIDE |
| SN01863-WZ | HQ5024A/A1A707A | THEMA11E TAPE GUIDE |
| SN01864-WZ | AIA707A/A1A707A/A1A708A-1 | THEMA11E TAPE GUIDE |
| SN01865-WZ | A1A709B/A1A710B | THEMA11E TAPE GUIDE HOOK |
| SN01866-WZ | 150-EH3101B/EH3101GH | THEMA11E/SM93 TAPE GUIDE |
| SN01867-WZ | HA4041A | THEMA11S.E TAPE GUIDE |
| SN01868-WZ | HQ5025A/A1A708A | THEMAIIE TAPE GUIDE |
| SN01869-WZ | PBO19152 | TP300 TAPE GUIDE BLOCK |
| SN01870-WZ | PBO17175 | TP500 TAPE GUIDE BLOCK |
| SN01871-WZ | PBO17176 | TP500 TAPE GUIDE BLOCK |
| SN01872-WZ | PBO17177 | TP500 TAPE GUIDE BLOCK |
| SN01873-WZ | PBO17178 | TP500 TAPE GUIDE BLOCK |
| SN01874-WZ | PBO17147 | TP600 TAPE GUIDE BLOCK |
| SN01875-WZ | PBO17146 | TP600 TAPE GUIDE BLOCK |
| SN01876-WZ | 150100175 | VAMATEX C201 GUIDE HOOK SINGLE |
Contact our technical team to discuss your specific requirements and get a customized quote.
